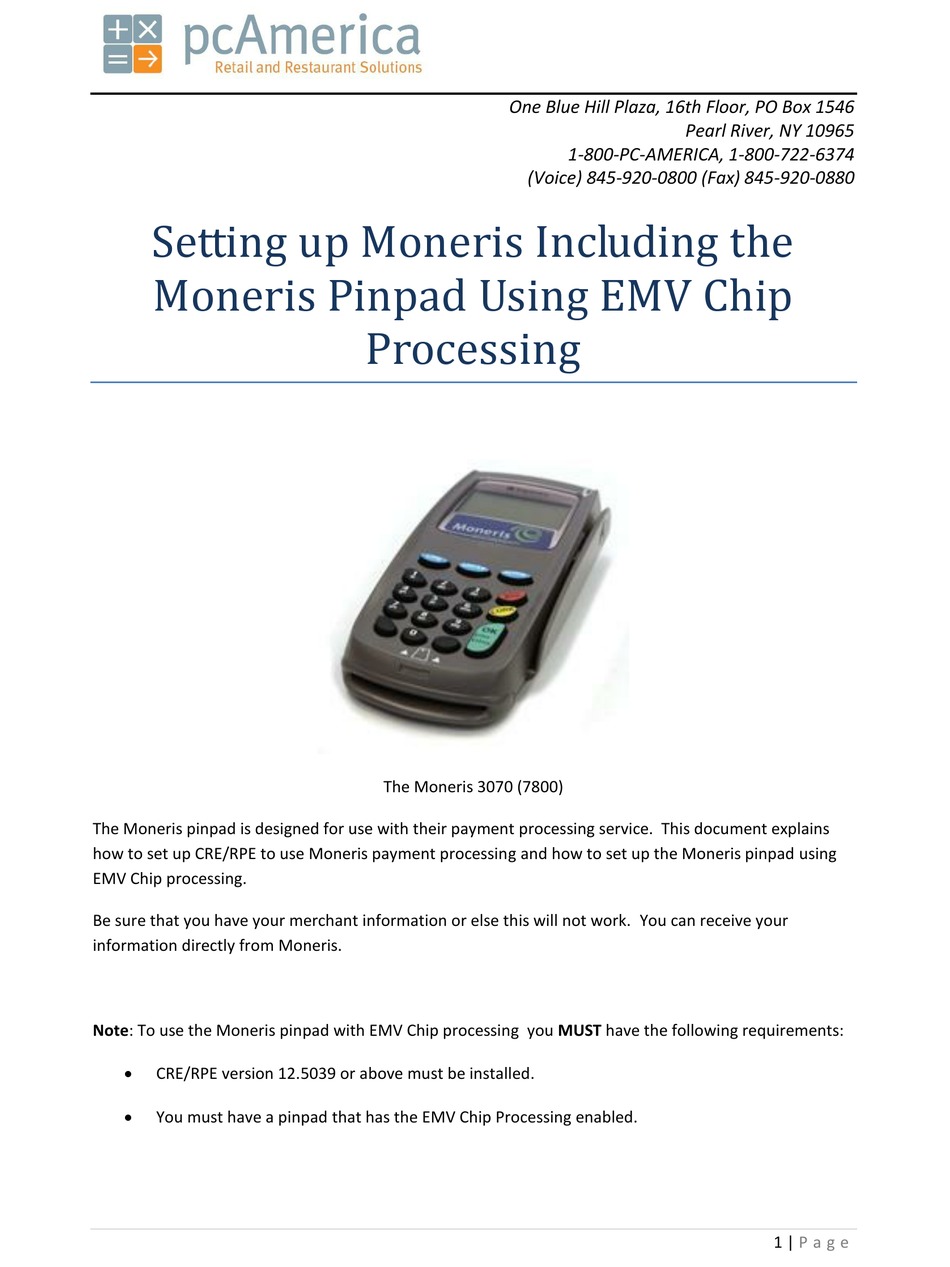

Setting up Moneris Including the
Moneris Pinpad Using EMV Chip
The Moneris pinpad is designed for use with their payment processing service. This document explains
how to set up CRE/RPE to use Moneris payment processing and how to set up the Moneris pinpad using
EMV Chip processing.
Be sure that you have your merchant information or else this will not work. You can receive your
information directly from Moneris.
Note: To use the Moneris pinpad with EMV Chip processing you MUST have the following requirements:
CRE/RPE version 12.5039 or above must be installed.
You must have a pinpad that has the EMV Chip Processing enabled.
One Blue Hill Plaza, 16th Floor, PO Box 1546
(Voice) 845-920-0800 (Fax) 845-920-0880
Processing

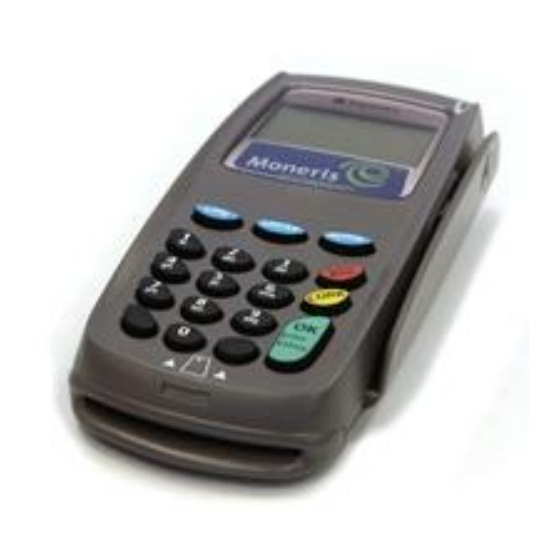

The Moneris 3070 (7800)
Pearl River, NY 10965
1-800-PC-AMERICA, 1-800-722-6374
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Moneris 3070
Summary of Contents for Moneris 3070
- Page 1 The Moneris 3070 (7800) The Moneris pinpad is designed for use with their payment processing service. This document explains how to set up CRE/RPE to use Moneris payment processing and how to set up the Moneris pinpad using EMV Chip processing.
- Page 2 Moneris USB Driver Installation Note: If the Moneris Pinpad you will be connecting is not connecting via a direct USB cable, then skip this section. Note: Before installing the driver make sure the pinpad is unplugged. You can download the USB cable driver for Windows XP from: ...
- Page 3 Determining which COM port is being used by the USB cable Even when the USB cable is used, the computer thinks the Moneris Pinpad is connected to a COM port. To find out which COM port the computer has assigned to the Moneris Pinpad, follow these steps.
- Page 4 Setting up CRE/RPE to use a Moneris pinpad and Moneris payment processing To begin using a Moneris pinpad and Moneris payment processing, start CRE/RPE, select Manager, provide the requested credentials, and follow these steps. NOTE: IF THE PINPAD IS SERIAL (RS232) THE PINPAD MUST BE PLUGGED INTO THE COMPUTER VIA SERIAL AND TURNED OFF (NO POWER PLUGGED IN).
- Page 5 Select Credit/Debit. Select Moneris as the “Payment Processor”. The Primary URL, Username (Store ID) and, Password (API Token) will be supplied by Moneris on a VAR sheet. Note: Both the Username (Store ID) and, Password (API Token) will be case sensitive.
- Page 6 MONPSPD by pressing CHQ (on the keypad). Select OK. Note: If MONPSPD is not listed as an option please highlight CPXPL and contact Moneris to have your device updated, to accept EMV Chips. When the LANGUAGE prompt appears, press CHQ for English.
- Page 7 Initializing Moneris Pinpad (shown left). 18. While CRE/RPE is displaying Initializing Moneris Pinpad the pinpad will show PLEASE WAIT (shown left). Note: The process of Initializing the Moneris Pinpad could take a few minutes, please be patient. P a g e...
- Page 8 19. When the pinpad displays WELCOME/BONJOUR and you are at the invoice screen, your pinpad is ready to be used! 20. Finally, you should login and perform a test transaction to verify that you are able accept credit and debit cards using this processor. When processing EMV Chip card transactions: ...
