Summary of Contents for ALLY HOME CONNECT
- Page 1 HOME CONNECT Quick Start Guide Legal Information Copyright @2019. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Mobile Initiative and its affiliates.
- Page 2 MI shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using of the Home Connect, whether or not had been advised, knew or should have known of the possibility of such damages, including, but not limited to lost profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime cost.
-
Page 3: Application Scenario

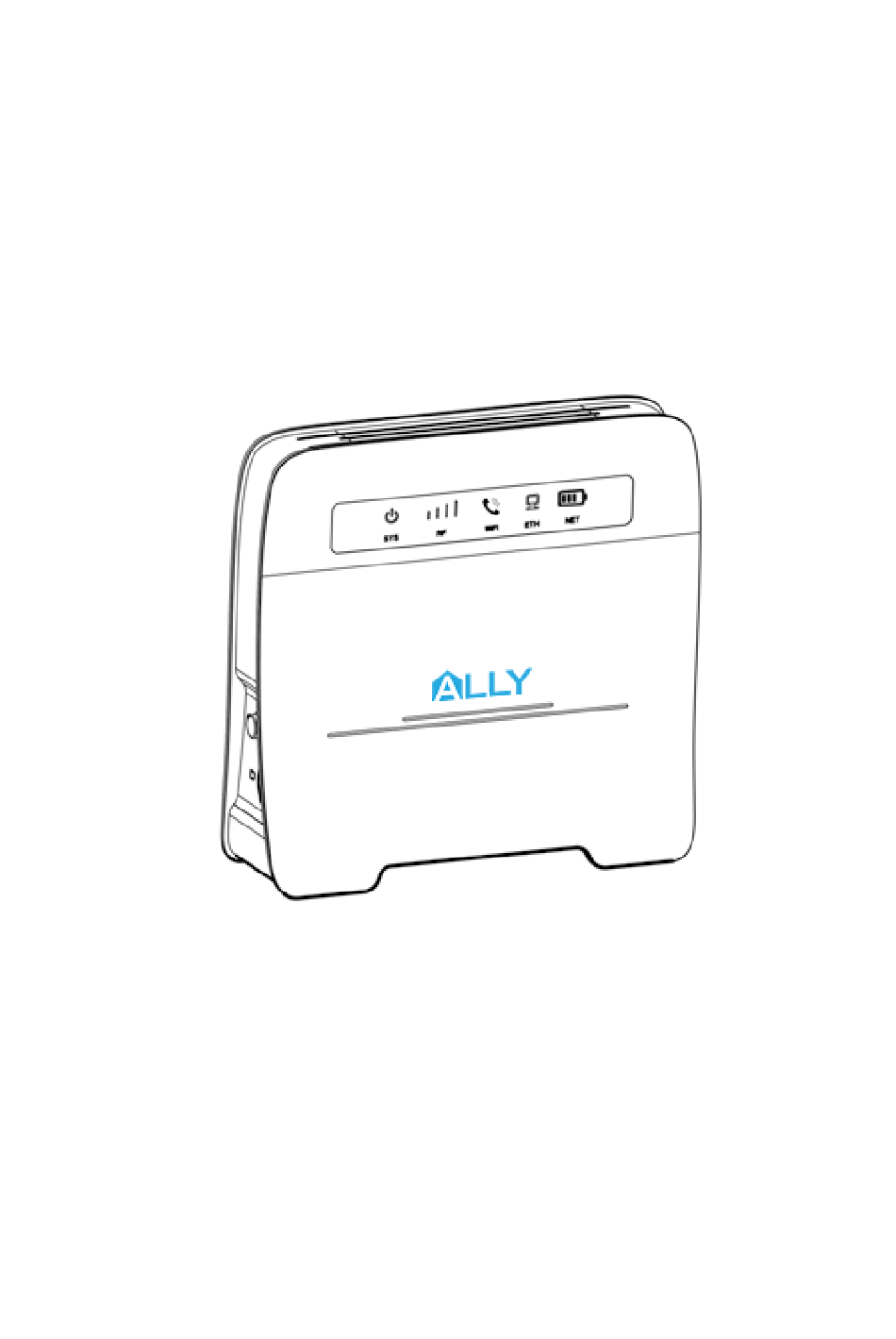

1 Introduction of Home Connect Your Home Connect is for indoor use only and multiple devices like computers or landline phones can be connected to the Home Connect to access the Internet and make telephone calls. The USB port can be only used for technical support like software updates. - Page 4 Appearance: TEL 1 port USB port TEL 2 port Main power indicator LAN port Mobile network signal indicator Power Input Telephone indicator SIM card slot Ethernet indicator Power button Battery power indicator Reset button The External antennas for better reception are optional. Please contact your local dealer or our service team for more information about the corresponding antennas.
- Page 5 2 Setup your Home Connect 1. Insert the SIM card as shown in the following diagram; Make sure the Home Connect is powered OFF. Ensure that the beveled edge of the SIM card is properly aligned with that of the SIM card slot.
- Page 6 Tear off the sticker cover on the backside of the battery. Place the battery in the backside of the housing. Put the connector of the battery in the connector of the Home Connect. Make sure the wires are between the holes in the plastic.
- Page 7 3. Plug the power cord into the Home Connect and into a power outlet. 4. Press the Power button for 3 seconds to turn ON the home connect. When the SIM is correctly installed, it will automatically search for available mobile networks.
- Page 8 The lights at the display will indicate the following status of the Home Connect; Indicator Status POWER ON: Device is powered on OFF: Device is Powered off SIGNAL More signal bars indicate stronger signal 1 bar is Low, 4 bars is High...
- Page 9 4 Access the Internet through the LAN port You can connect the Home Connect LAN port to your PC or laptop to connect to the Internet through your mobile phone network supplier. Remark: This option is only available when you have a data plan activated through the SIM inserted in the Home Connect and your service provider is allowing you to use it with the Home Connect.
-
Page 10: Faqs And Troubleshooting
7 FAQS & Troubleshooting If you are expecting any issues with the Home Connect, in most cases please try to restart the Home Connect or restore the Home Connect to its factory settings by pressing the Reset button for 3 seconds. - Page 11 Do not allow the Home Connect or accessories to come into contact with liquid or moisture at any time. Do not immerse the Home Connect in any liquid. Do not place objects on top of the Home Connect. This may lead to overheating of the device. ...
-
Page 12: Technical Details
9 Technical details Power Adapter: Input: 120-240 V, 50-60 Hz Output: 12 V DC 1.000mAh Physical Size: 175*167*51.8mm Weight: 357g with battery, 324g without battery Environmental; Operating temperature: 0° to 40° C (32º to 104º F) Operating humidity: 90% maximum relative humidity, noncondensing Regulatory Compliance;... - Page 13 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
