Summary of Contents for Jackson Systems ring

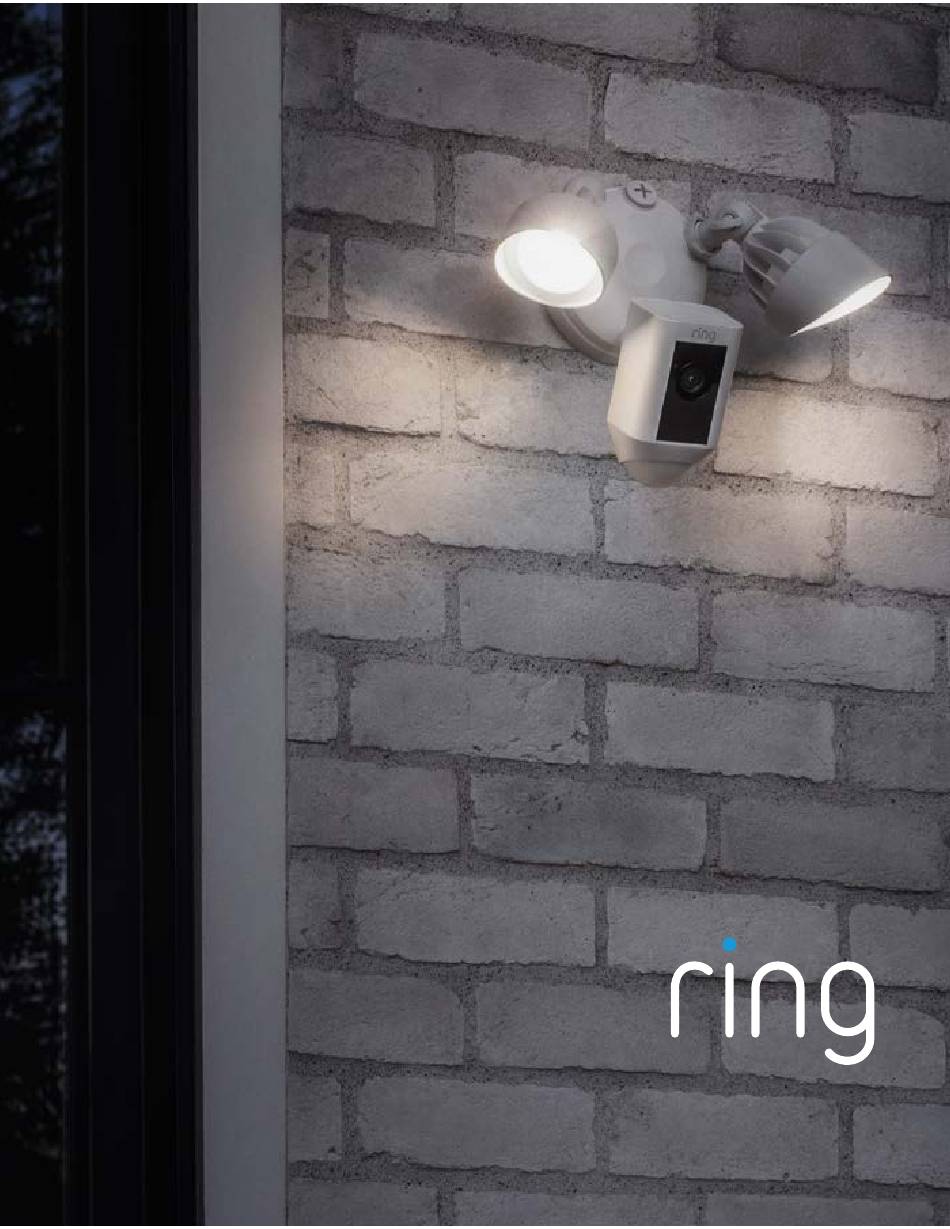

  • Page 1 Floodlight Cam...
  • Page 2 Smart Security at Every Corner of Your Home Your new Ring Floodlight Cam lets you extend the Ring of Security around your entire property. Now, you’ll always be the first to know when someone’s on your yard, and you can watch over your home from anywhere.

  • Page 3: Before You Begin

    Before you begin These instructions assume you’re replacing an existing floodlight and/or have a junction box where Floodlight Cam can be mounted. If you don’t have a junction box, Check out all the stuff in the box. then you’ll need to hire an electrician to install one. Screwdriver Bag o’...
  • Page 4 How it all fits together Junction Box Mounting Bracket Light Light (not included) Bracket Screws Lock Adjustment Collar Knob Wire Mounting Camera Screw Nuts Posts Lock Cap Nuts Collar Motion Detector (for lights)
  • Page 5 How installation When mounted at 9 feet off the ground, with the motion height affects motion detector parallel to the ground, detection the motion sensor is optimized to detect human-sized objects at up to 30 feet. Parallel to ground 9 feet (3 Meters) 30 feet (10 Meters)
  • Page 6 Shut power off at the WARNING: Risk of electrical shock breaker • Disconnect power at the fuse or circuit breaker If you don’t know where your before installing. breaker is or how to turn off • Verify that the supply power to your floodlight circuit, voltage is correct.
  • Page 7 Prep your Floodlight Cam for installation Loosen the knobs on the light fixtures to rotate them out of Rotate the camera 180 the way and allow access to degrees since Floodlight Cam the mounting screws. ships with the camera upside down on the fixture.
  • Page 8 Remove your existing floodlight With power off at the breaker, remove your existing floodlight from the junction box it’s attached to and disconnect the wires. If there is a bracket attached to your junction box, remove that as well. Inspect your junction box to make sure water cannot get into it.

  • Page 9: Install The Mounting Bracket

    Install the mounting Make sure your existing wires come through the middle of the bracket bracket. Install the mounting bracket on Attach the bracket to your your wall with the two posts level junction box using at least two with the ground. screws.
  • Page 10 Hang Floodlight Cam Use the provided hook to hang Floodlight Cam from the bracket while connecting the wires. Hook one end of the provided hook into one of the mounting holes on your Floodlight Cam. Hook the other end into one of the holes in the bracket.

  • Page 11: Connect The Ground Wire

    Use one of the supplied wire nuts if necessary. For safety and the proper operation of your Ring Floodlight Cam, the fixture must be properly grounded. If you’re not familiar with the methods for properly grounding this type of fixture, consult a...

  • Page 12: Connect The Power Wires

    Connect the power wires The white wire on Floodlight Cam is a neutral wire. Use a wire nut to connect this wire to the white (or neutral) wire coming out of your junction box. The black wire from Floodlight Cam is a hot wire. Connect this wire to the black (or hot) wire coming out of your junction box using another wire nut.
  • Page 13 Place Floodlight Cam on the bracket Carefully push all the wires through the large opening in the bracket. Align the mounting posts with the holes on Floodlight Cam and press together, securing the screw cap nuts with the orange screwdriver handle.
  • Page 14 Perform the breaker in-app setup After restoring power, the lights In the Ring app, select Set Up will turn on and your Floodlight a Device and follow the in-app Cam will begin speaking to you to instructions to connect Floodlight let you know it’s in setup mode.
  • Page 15 After setup, select your Floodlight Cam in the Ring app This will bring you to the Device Manually control the lights. Dashboard, where you can change settings and access various features. Toggle notifications for activity in any of the camera’s motion zones.
  • Page 16 Two-way Talk – Speak to visitors and hear what they have to say. Siren – Activate the 110 decibel siren. Lights – Turn the lights on and off. Ring Neighborhoods – Share suspicious events with your neighbors.
  • Page 17 Select Motion Settings to customize your motion Allows you to adjust the amount of preferences alerts you receive. Choose People Only to get motion alerts from humans only. Draw up to three custom areas where you’d like to receive motion alerts and trigger the lights.
  • Page 18 To detect motion, you will need to set up Motion Zones, which is a customizable area you want your Ring to monitor and receive alerts. To set up a Motion Zone, select Motion Settings. On this screen, create up to three Motion Zones.
  • Page 19 Select Light Select Advanced Settings on Settings the Light Settings screen to customize the areas that will to set a schedule for your trigger the lights and change how lights to stay on long they stay on for.

  • Page 20: Troubleshooting Tips

    Strength is not Good, you’ll need to boost the Wi-Fi signal to your Floodlight Cam, which can be done with our product, Chime Pro. © 2017 Ring Inc. RING, ALWAYS HOME, and CHIME are trademarks of Ring Inc. Last updated: 01/05/18...
  • Page 21 For additional help, visit: ring.com/help Or give us a call… US 1 800 656 1918 UK 01727 263045 AU 1 300 205 983 NZ +64 9 887 9871 Mexico (D.F) 52 55 8526 5445 Worldwide +1 310 929 7085 For a list of all our customer support numbers, visit: ring.com/callus...
