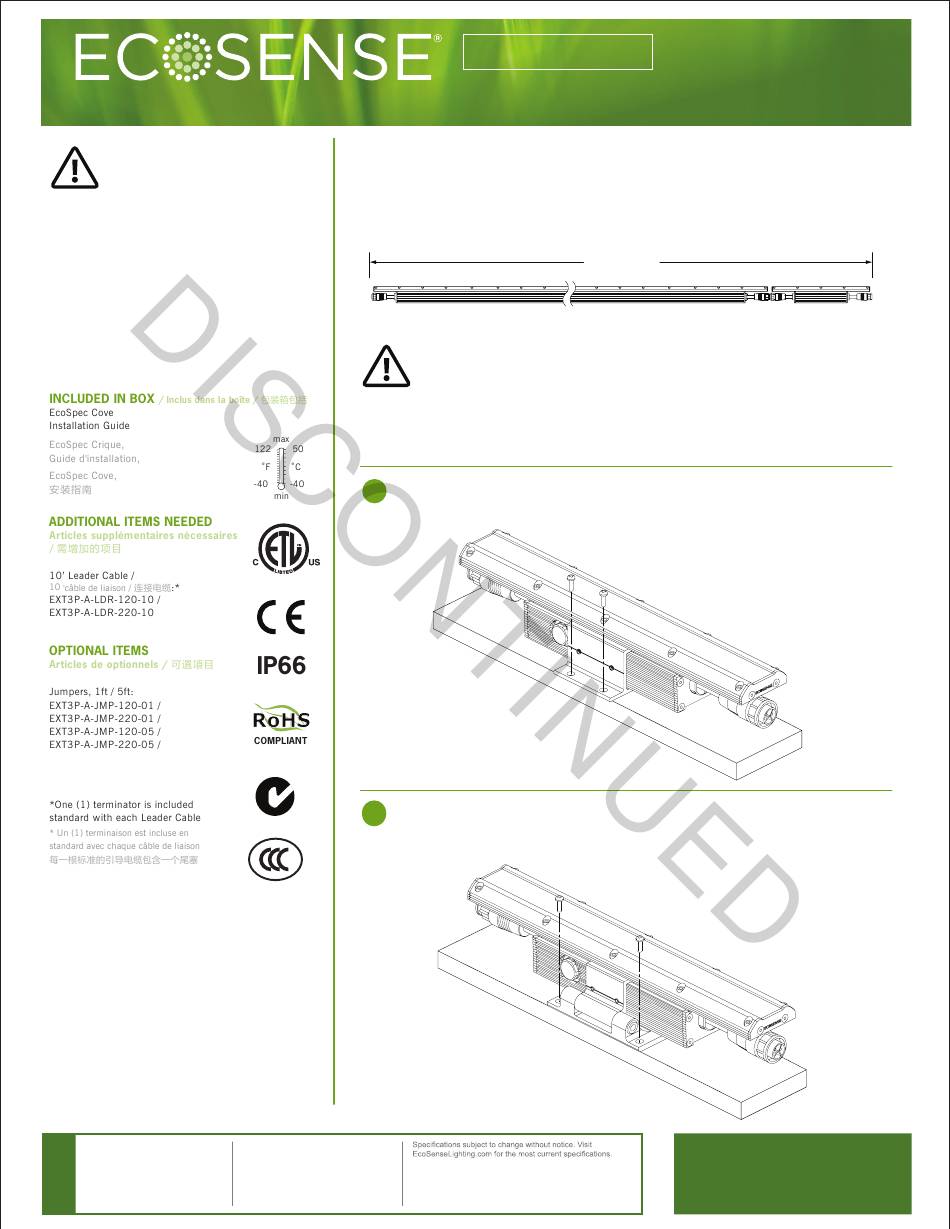

Ecosense EcoSpec HP EXT Series Quick Start Manual

EcoSpec Linear HP EXT
®
EcoSense Lighting Fixtures must be
installed by a qualified electrician.
EcoSense Eclairage doit être installé par un électricien qualifié.
EcoSense 灯具必须由合格的电工安装
EcoSense Lighting, Inc. is not responsible if its
fixtures are not installed in accordance with all
national and local safety standards.
EcoSense Lighting, Inc n'est pas responsable si son appareils ne sont pas
installés conformément à toutes les normes de sécurité nationales et locales.
如果没有依照国家或者地方安全标准进行灯具安装，
Ecosense Lighting, Inc. 不承担任何责任
EcoSense Lighting Inc.
915 Wilshire Boulevard
1
Suite 2175
Los Angeles, CA 90017
- Standard Power / Low Power
Plan the Installation
Verify the Electrical Plan
Maximum run per 10'-0" leader cable :
120VAC - 55ft (16m) – Standard Power / 85ft (25m) – Low Power
220VAC - 125ft (37m) – Standard Power / 190ft (57m) – Low Power
277VAC - 125ft (37m) – Standard Power / 190ft (57m) – Low Power
Install the Fixtures
Ensure power is OFF
Select Mounting Option
Choose method best suited for mounting surface and installation application.
All methods work with either the stationary or adjustable mounting bracket.
Choisir la méthode la mieux adaptée pour montage en surface et l'application d'installation. / 选择最合适的安装表面和使用位置
A
Mount with
flat bracket:
B
B
Mount with
adjustable bracket:
Phone 310-496-6255
Fax 310-496-6256
© 2014 EcoSense Lighting Inc. All rights reserved.
Toll Free 855-632-6736
EcoSense, the EcoSense logo, and EcoSpec are regis-
tered trademark of EcoSense Lighting Inc.
855-6-ECOSEN
INST-HPES-20140327-V1
New Linear Series
/ Plan de l'installation / 安装准备
/ Vérifiez le plan électrique / 确认连接方法
MAX RUN
/ Installez le Calendrier / 安装灯具
/ Assurez que la puissance est sur OFF / 确保电源关闭
/ Sélectionnez l'option de montage / 选择安装方式
:
ECOSENSELIGHTING.COM
