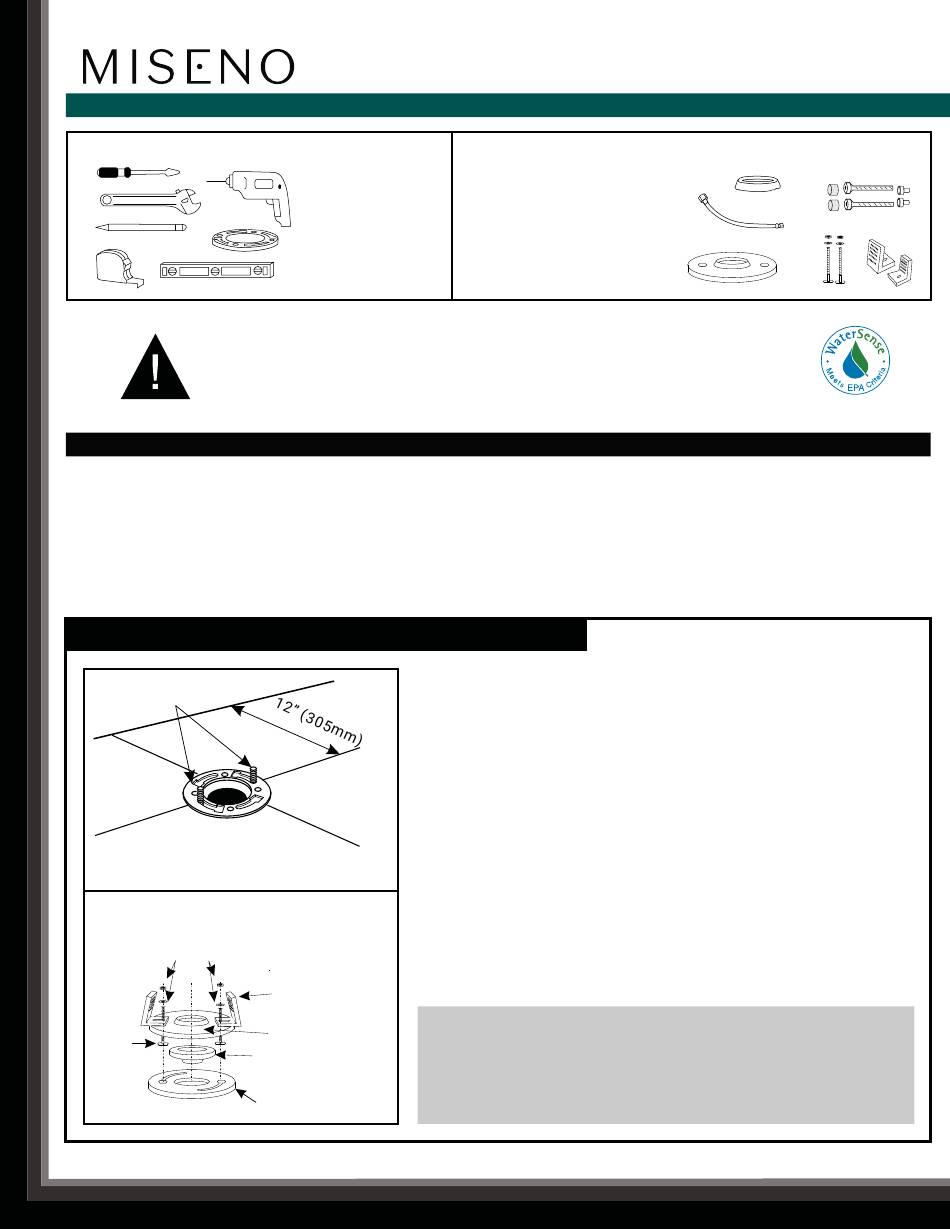

miseno MNO490EC Technical Manual

Recommended Tools & Materials
A
F
B
C
G
D
E
CAUTION: PRODUCT IS FRAGILE
Handle with care to avoid breakage and potential injury
Note: Illustrations in this guide are general representations and may not necessarily define the exact contours of the product.
To remove old toilet:
• Shut off water supply line to toilet. Flush toilet and remove all water from the bowl and tank using a sponge.
• Disconnect the water supply line from the tank.
• (OPTIONAL) Remove the tank from toilet base, use a screwdriver, adjustable wrench or socket wrench as necessary.
• Loosen toilet bowl flange nuts under bolt caps. Remove old toilet base by carefully lifting it off the floor.
• Clean flange and plug the drain with a rag to prevent sewer gas from escaping. Remove rag before placing new toilet.
Step 1. Install wax ring seal plate and connection brackets.
T-Connection
Bolts
Seal Plate Assembly
T-Bolt Connection Nuts & Washer
T-Bolts
Contact Miseno at (855) 480-2915 or email infoservice@miseno.com with any questions. Copyright ©2019, Miseno. All rights reserved
Skirted HET Single- and Dual-Flush Toilet
A. Screwdriver
B. Adjustable wrench
C. Pencil or marker
D. Tape measure
E. Level
F. Drill
G. Toilet flange
A. Place two new T-bolts into the slots on the floor outlet
flange.
B. Install the wax ring onto the underside of the wax ring
seal plate, then press the seal plate down evenly and
firmly over the T-bolts and floor outlet flange.
Floor
Outlet
C. Place the flange connection "L" brackets onto the
Flange
T-bolts then attach the washers and nuts to the T-Bolt (see
illustration).
D. Align flange connection brackets to the sides of the
seal plate (see illustration) then tighten the nuts
Connection Bracket
for Attaching Toilet
until snug to seal the wax ring to the floor outlet flange.
to Floor Flange
Note: This mounting assembly assumes your floor outlet
Flange Seal Plate
flange is proud of, or even with your flooring. Recessed
Wax Ring
flanges may not seal correctly and leakage is possible.
Floor
Outlet
Additional sealing may be necessary in this instance.
Flange
Items Included
H. Wax ring
I. T-bolts, nuts and washers
J. Supply line
K. Wax ring seal plate
L. Fixing screws and caps
M. Flange connecting brackets
PAGE 1
Installation Instructions
H
J
K
I
IAPMO
L
M
R&T
