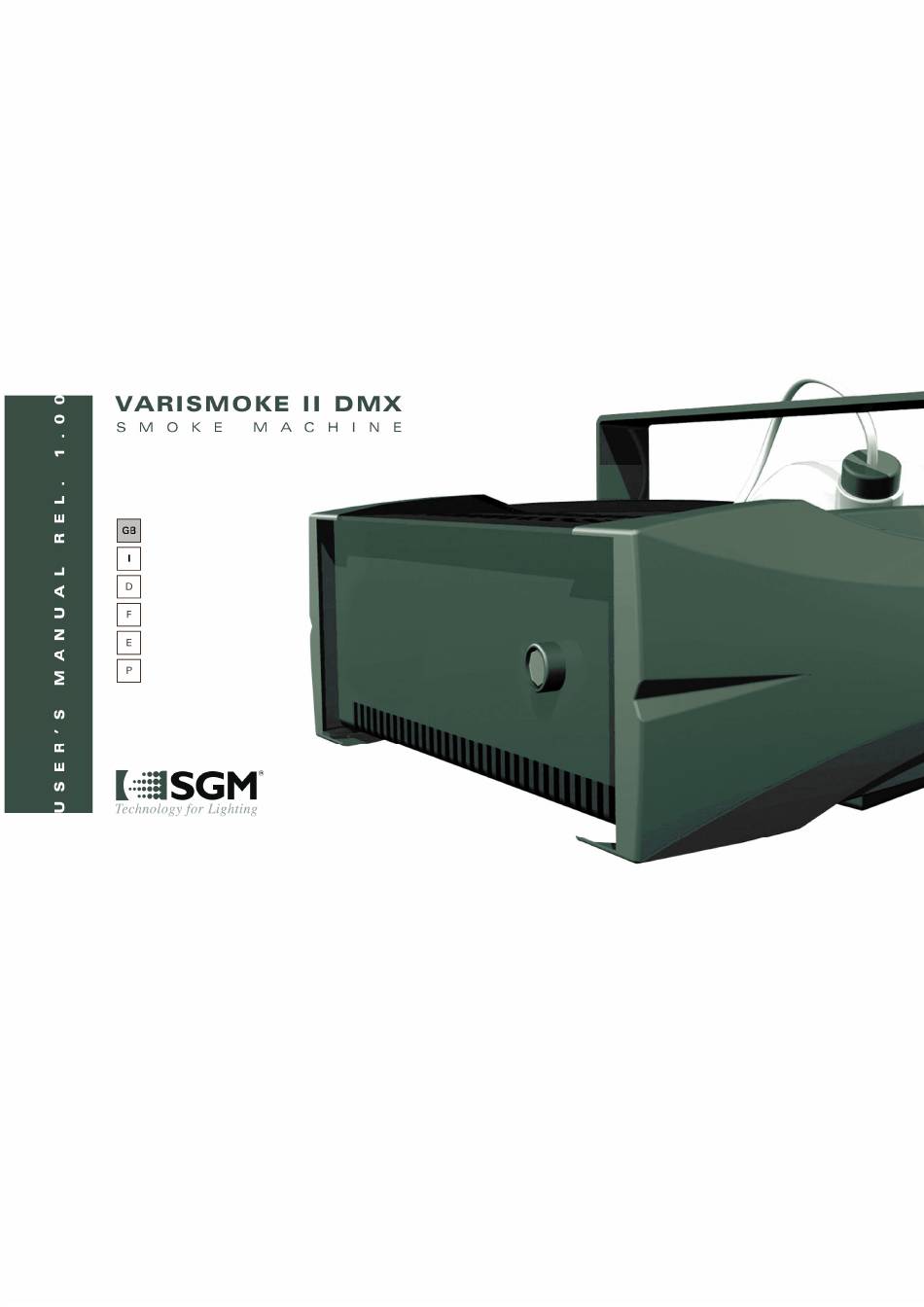

- Page 1 www.audiovias.com...
- Page 2 Nell’ottica di qualità SGM, è possibile che l’Azienda apporti migliorie ai suoi prodotti, per cui consigliamo di alle- gare il manuale al prodotto stesso e di trascrivere il numero di serie nell’ultima pagina della copertina: utilizzando il presente manuale con un apparecchio fabbricato prima o dopo la sua stampa, potrebbero esserci discrepanze fra l’apparecchio e quanto riportato nel Manuel stesso.
-
Page 3: Table Of Contents
SGM Technology for lighting Table of Contents ..........................2 YMBOLS USED ........................ 2 HANGES TO THIS MANUAL ........................3 ENERAL WARNINGS ......................4 ENERAL WARRANTY CONDITIONS ..................5 ARISMOKE Upper Panel View ......................6 Rear panel View ......................7 Rear Panel ........................7 Varismoke main features .................... -
Page 4: Symbols Used
COVER. Changes to this manual SGM has an on-going product development policy, so the information printed in this manual may not be completely up to date. If any doubts arise regarding the topics covered in this manual or should any further help be required, our online services (internet-server www.sgm.it... -
Page 5: General Warnings
• AFTER HAVING REMOVED THE PACKAGING, CHECK THAT THE FIXTURE IS NOT DAMAGED IN ANY WAY. IF IN DOUBT , DON'T USE IT AND CONTACT AN AUTHORIZED SGM TECHNICAL SERVICE CENTRE. • PACKAGING MATERIAL (PLASTIC BAGS, POLYSTIRENE FOAM, NAILS, ETC) MUST NOT BE LEFT WITHIN CHILDREN’S REACH AS IT CAN BE DANGEROUS. -
Page 6: General Warranty Conditions
Always quote the unit’s serial number and model when contacting your reseller for information or assistance. Protect the environment: don't throw packing material into your garbage can return it to your SGM retailer or take it to the nearest special waste collection point. www.audiovias.com User Manual 1.00... -
Page 7: Varismoke
Varismoke II DMX is a high power smoke machine, ideal for creating suggestive atmospheres and for giving projected light more ‘body’ and visibility. Varismoke II DMX is built with highly resistant material that ensure great reliability, even in the most demanding applications, as well as very low maintenance. -
Page 8: Upper Panel View
SGM Technology for lighting 1.1 U PPER ANEL www.audiovias.com User Manual 1.00 Varismoke II DMX... -
Page 9: Rear Panel View
SGM Technology for lighting 1.2 R EAR PANEL 1.3 R ANEL Slits for air circulation. Heater ON/OFF led indicator. Fluid pump ON/OFF led indicator. Machine ready led indicator. Fluid finished led indicator. Faulty operation led indicator. Dip-switch for the DMX addressing. -
Page 10: Varismoke Main Features
SGM Technology for lighting 1.4 V ARISMOKE MAIN FEATURES Varismoke is a smoke machine with adjustable smoke output. The smoke intensity can be adjusted externally by means of the DMX channel: when the DMX value is included between 0÷5 there is no smoke output when the DMX value is included between 5÷255 the smoke intensity is adjusted from minimum to... -
Page 11: Connecting The Varismoke Dmx
SGM Technology for lighting 1.7 C ONNECTING THE ARISMOKE The fixture has a standard DMX 512 input/output. For connection, always use quality balanced microphone cables such as RF 60/12 2x0.25m² or similar to avoid faulty fixture operation. To reduce interference, it may be necessary to fit the last... -
Page 12: Smart Control
SGM Technology for lighting MART ONTROL ITEMS SUPPLIED: 1 Smart control 1 9V Battery (installed) 1 Power Supply 1 Instructions Sheet MAIN FEATURES: 2 dmx channels output Flash-rate control Potentiometer Duration control Potentiometer Automatic or manual operating mode . Led on: it marks the presence of the feeling when the led is lit ON. In case of battery LOW, the led will start blinking. -
Page 13: Automatic Operating Mode
SGM Technology for lighting 2.1 A UTOMATIC PERATING Assuming the button Out on/off has been pressed to enable the output (its led is on), Smart Control is set to the Automatic operating mode when the auto/man button (4) is pressed down and its led will start blinking. - Page 14 www.audiovias.com...
- Page 15 www.audiovias.com...
- Page 16 SGM Technology for lighting www.audiovias.com User Manual 1.00 Varismoke II DMX...
