RCS AUDIO-SYSTEMS VARES ESC-006 A Operating Instructions Manual

Electroacoustic emergency warning-system

Advertisement

Quick Links

VDE-0828 / DIN EN-60849 / IEC-60849
SISTEMA SONORO DI EVACUAZIONE
ELECTROACOUSTIC EMERGENCY WARNING-SYSTEM
- ENGLISH
INTRODUZIONE / OPERATING INSTRUCTIONS
- DEUTSCH

Advertisement

loading
Need help?

Need help?

Do you have a question about the VARES ESC-006 A and is the answer not in the manual?

Questions and answers

Summary of Contents for RCS AUDIO-SYSTEMS VARES ESC-006 A

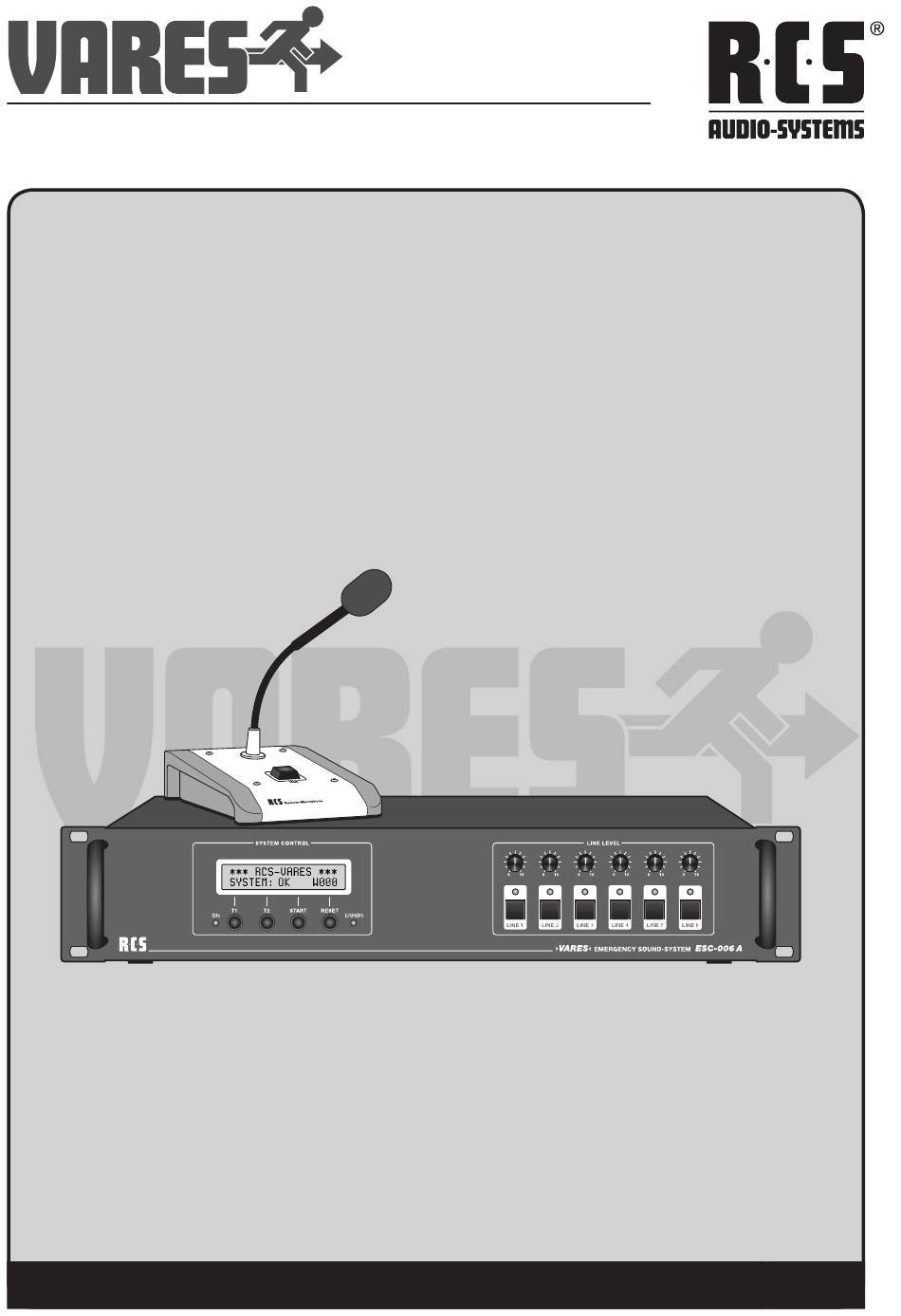

  • Page 1 VDE-0828 / DIN EN-60849 / IEC-60849 SISTEMA SONORO DI EVACUAZIONE ELECTROACOUSTIC EMERGENCY WARNING-SYSTEM - ENGLISH INTRODUZIONE / OPERATING INSTRUCTIONS - DEUTSCH...
  • Page 2 EMERGENCY WARNING-SYSTEM INSPECTION AND INVENTORY OF THE PRODUCT IL CONTROLLO E LA VERIFICA DEL PRODOTTO Check unit carefully for damage which may have occurred Controllare con attenzione l’unità per vedere se ci sono dan- during transport. Each RCS product is carefully inspected ni dovuti al trasporto.
  • Page 3 ESC-006 A INTRODUCTION INTRODUZIONE In the case of an alarm, an electroacoustic emergency war- Nel caso di allarme, il sistema sonoro di evacuazione può ning system may avoid panic by understandable speaker an- evitare il panico, con l’ausilio di annunci comprensibili dagli nouncements, which are, contrary to the howling of a siren, altoparlanti, molto più...
  • Page 4 EMERGENCY WARNING-SYSTEM       FRONT PANEL ESC-006 A PANNELLO FRONTALE ESC-006 A 1. LCD Liquid Crystal Display 1. Display LCD The clear 20-digit, 2-lines display inform constantly about Display a cristalli liquidi 20 caratteri su due righe informa the system status.
  • Page 5 ESC-006 A                   REAR PANEL ESC-006 A PANNELLO POSTERIORE ESC-006 A 1. Input Speaker Lines 1-6 1. Linea altoparlanti 1-6 Please note that the 100V cable must be connected co- Prego notare che il cavo degli altoparlanti in linea 100V ming from the amplifier.
  • Page 6 EMERGENCY WARNING-SYSTEM Switch position: top=off bottom= on Posizione degli switch: su = OFF giù = ON Impedance tolerance: top=10% bottom= 20% Posizione switch di tolleranza impedenza: su = 10% giù = 20% 10. Connection Emergency Desk-Micro 1 and 2 10. Connessioni di emergenza microfono da tavolo 1 e 2 The microphone station 1 has priority before station 2.
  • Page 7: Installation Procedure

    ESC-006 A INSTALLATION PROCEDURE PROCEDURA DI INSTALLAZIONE Please activate as a first step the Control Center ESC- Per prima cosa attivare la centrale di controllo VARES 006 A. ESC-006 A All devices and operating voltages, which are to be cont- Tutti i dispositivi e tensioni di funzionamente, che devono rolled by the VARES Control Center ESC-006 A should be essere controllate dal centro di controllo VARES ESC-006°...
  • Page 8 EMERGENCY WARNING-SYSTEM PROGRAMMING PROGRAMMAZIONE Only authorized persons should program the system. Soltanto le persone autorizzate dovrebbero program- Changes or false inputs can affect the security. mare il sistema. I cambiamenti o gli input falsi possono compromettere la sicurezza del sistema. a) ADJUSTMENT OF THE EVACUATION SIGNAL VOLUME a) REGOLAZIONE VOLUME DEL SEGNALE DI EVACUAZIONE •...
  • Page 9 ESC-006 A without power • Tenere premuto “T1” e accendere (ON) la centrale di • hold T1 and switch the Control Center ESC-006 A controllo VARES ESC-006 A • Accendere gli amplificatori • switch on the power amplifier Ora possiamo utilizzare l’ingresso dell’annuncio allarme The alarm annunciatior input can now be used for the per l’analisi degli errori esterni.
  • Page 10 EMERGENCY WARNING-SYSTEM VARES MENUEMAP START diplay errore RESET error display selezionare il messaggio select emergency message SISTEMA LIVELLO Start – inizio dell‘installazione… SPECIALE PROVA installation running… INTERRUTTORE SEGNALE MESSAGIO 1 assegnare l‘annunciatore assign the annunciator MESSAGIO 2 START attivare l‘annunciatore activate the annunciator MESSAGIO 3 RESET...
  • Page 11 ACCESSORIES VARES SYSTEM ACCESSORIES VARES-SYSTEM ACCESSORI EMERGENCY POWER SUPPLY ESP-300 A SISTEMA DI ALIMENTAZIONE D’EMERGENZA ESP- The emergency power supply ESP-300 A is designed for the connection of up to 6 power amplifiers 120 W as well as Il sistema di alimentazione di emergenza ESP-300 è diseg- an additional backup amplifier.
  • Page 12 EMERGENCY WARNING-SYSTEM SYSTEM CONNECTIONS / VERDRAHTUNGSBEISPIEL R6CD-10 6CD-CHANGER MODEL NO.: R6CD-10 6CD-CHANGER ESM-100D LINE 1 Speakers VARES Fire Brigade Call Station ESC-006A VARES Control-Center DC POWER CAUTION 24V 40A RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DON'T EXPOSE THIS PROGRAM PRIORITY...
  • Page 13 ACCESSORIES VARES SYSTEM ACCESSORIES SISTEMA DI ACCESSORI VARES FIRE BRIGADE CALL STATION ESM-100 D STAZIONE DI CHIAMATA DEI VIGILI DEL FUOCO ESM-100D The fire brigade call station ESM-100 D is monitored compli- ant to VDE0828/EN60849. La stazione di chiamata ESM-100 D è sempre monitorata in ottemperanza alle normative VDE0828/EN60849.
  • Page 14: Technical Data

    EMERGENCY WARNING-SYSTEM TECHNICAL DATA VARES ESC-006 A Speaker lines 6 lines, max.480 W each (5 lines with VLM-105) Fire Brigade call stations 2x ESM-100D suitable for connection Digital microphone stations up to 5 devices VLM-105 (not monitored) Signal outputs 7x NF 0dB; transformer balanced;...
  • Page 15: Dati Tecnici

    ESC-006 A DATI TECNICI VARES ESC-006 A Linea altoparlanti 6 linee massino da 480 w ogniuna (5 linee con VLM-105) Stazione di chiamata vigili del fuoco 2xESM-100D adatti per la connessione Stazione microfonica digitale più di 5 dispositivi (non monitorati) Segnale in uscita 7x NF 0db;...
  • Page 16 Hardware and Software specifications subject to change without notice. Techische Änderungen in Hardware und Software vorbehalten. © Copyright by RCS AUDIO-SYSTEMS GmbH. RCS23.07.2007 Publication and duplication of the contained data only allowed with our strict permission. Veröffentlichung und Vervielfältigung der enthaltenen Daten, auch auszugsweise, nur mit unserer ausdrücklichen Genehmigung.
