Save This Manual for Future Reference
Original Instruction

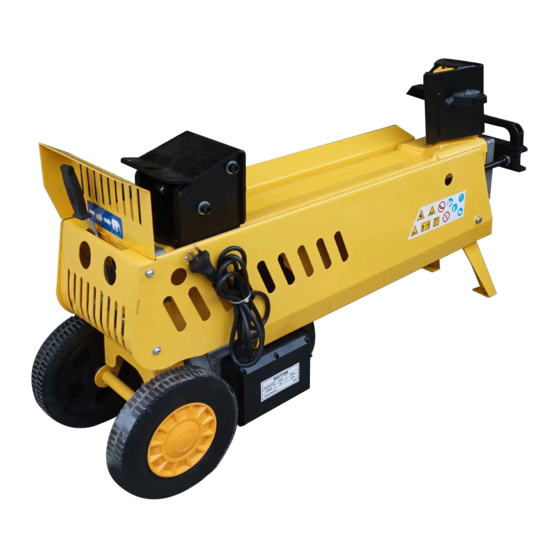

Hydraulic Log Splitter
Operator's Manual
65575
MODEL NUMBER :
:
SERIAL NUMBER
Both model number and serial number may be found on the main label.
You should record both of them in a safe place for future use.
FOR YOUR SAFETY
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING
MACHINE
65575UK00M111.indd 1
2019/8/30 11:52:28
Advertisement
Table of Contents
Related Manuals for PowRkraft 65575
Summary of Contents for PowRkraft 65575
- Page 1 Save This Manual for Future Reference Original Instruction Hydraulic Log Splitter Operator's Manual 65575 MODEL NUMBER : SERIAL NUMBER Both model number and serial number may be found on the main label. You should record both of them in a safe place for future use.
-
Page 2: Table Of Contents
TABLE OF CONTENTS RECYCLING AND DISPOSAL Introduction This marking indicates that Symbols this product should not be Safety disposed with other household Safety Warnings & Instructions wastes. To prevent possible Special Warnings & Instructions h a r m t o t h e e n v i r o n m e n t o r h u m a n h e a l t h f r o m Specifications uncontrolled waste disposal,... -
Page 3: Safety
Do not use the log splitter in wet or Dispose of the used oil in an damp areas or expose it to rain. environment-friendly way. Do not use it in areas where fumes from paint, solvents or flammable Do not use in the rain. liquids pose a potential hazard. - Page 4 Do not attempt to load the log on until AVOID ELECTRICAL SHOCK the log pusher has stopped. C h e c k t h a t t h e e l e c t r i c c i r c u i t i s adequately protected and that it Keep hands out of the way of all corresponds with the power, voltage and...
-
Page 5: Special Warnings & Instructions
Lower the wedge until the log is split open. ● Description of functional tests of the machine; ● Only qualified person can assemble the machine. Specifications 65575 Model Number 230V~50Hz, 2300W, S6 40%, 10.3A Motor 50~320 mm Dia. Log Size... -
Page 6: Contents Supplied
CONTENTS SUPPLIED (× 2) (× 2) STEEL GUARD WIRE GUARD Steel Guard / Wire Guard 1. Log Splitter Frame 2. Transport Handle 8. Plate connector (Steel Guard only) 3. Support Strut 1F (1 pair) 9. Top Guard Plate 1F 4. Support Strut 2F 10. -
Page 7: Assembly
14. Left Guard Plate F Log Tray 15. Operator's Manual 1. Mount the guard bottom plate F to 16. Hardware Bag, including the right body cover and secure with two M6x16 socket head cap screws and washers. Mount the open end of support strut M8 ×... - Page 8 Loosen the bolt on the bottom side of upper end of support strut 1F to the the right body cover, insert the open log tray 2F with cross recessed pan end of support strut 1F onto the bolt head screw M6x12 and locknut M6 and then tighten the bolt.
- Page 9 Steel Guard Wire Guard 1. Attach the front guard plate, left 1. Connect rear guard plates guard plate and two rear guard plates together with two M6×20 screws, to the log tray and bottom plate with U-spacers and nuts. M6×12 screws and nuts. 2.
-
Page 10: Know Your Machine
KNOW YOUR MACHINE Guard Wedge Log Tray Transport Handle Log Retaining Plates Pushbutton Box Switch Bleed Screw Oil Drain Bolt w/ Dipstick Work Table Log Pusher Control Lever Guard Hydraulic Control Lever Support Leg Motor Wheels Max Pressure Limiting Screw 65575UK00M111.indd 10 2019/8/30 11:52:41... -
Page 11: Transport
Bleed Screw TRANSPORT Before operating The log splitter is equipped with 2 the log splitter, the wheels for minor moving. To move the Bleed Screw should log splitter to the work site. be loosened by some rotations until air can go in and out of the oil tank smoothly. -
Page 12: Delivering Log Splitter To Work Site
M8 35(A) on the hard × groundwork. Our worktable is an optional accessory with model no.02962 for 65575, please contact the dealer if you need it. × × 7 2 0 m m ~ 8 5... - Page 13 T r i g g e r t y p e l o c k - o u t d e v i c e i s adopted to avoid accidental Hydraulic Control Lever pushdown. To operate the Hydraulic Control Lever, draw the Trigger backward with the index finger LEFT HAND RIGHT HAND...
-
Page 14: Freeing A Jammed Log
FREEING A JAMMED LOG ● Release both controls. ● After the log pusher moves back and completely stops at its starting position, insert a wedge wood under the jammed log. ● Start the log splitter to push the wedge wood to go completely under the jammed one. -
Page 15: Replacing Hydraulic Oil
REPLACING Do not try to knock the jammed log off. Knocking HYDRAULIC OIL a b o u t w i l l d a m a g e t h e machine or may launch the Replace the Hydraulic oil in the log log and cause an accident. -
Page 16: Sharpening Wedge
Oil Level Use a drain pan to aid in the removal of all used oil and particles. Remove oil drain plug to drain oil from hydraulic transmission system. Examine oil for metal chips as a precaution to future problems. Read dipstick to determine the maximum and minimum of the oil level. -
Page 17: Trouble Shooting
TROUBLE SHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Refer to “Log Splitter Log is improperly positioned Operation” section for perfect log loading. The sizes or hardness of the Reduce the log sizes before log exceeds the capacity of splitting it on the log splitter. the machine Refer to “Sharpening Fails to split... -
Page 18: Wiring Diagram
WIRING DIAGRAM HYDRAULIC SYSTEM DIAGRAM 65575UK00M111.indd 18 2019/8/30 11:52:45... - Page 20 Parts List Description Q'ty Description Q'ty 35 Copper Washer 12 Snap Washer 22 36 Valve Sleeve Washer 10 37 O-Ring 17x1.8 Valve Rod 38 Screw M10x8 O-Ring 8.75x1.8 39 Steel Ball 8.5 Safety Valve Spring basis Socket head cap screws M6X12 O-Ring 11.2x2.65 Safety Valve Spring...
- Page 21 Description Q'ty Description Q'ty 69 Washer 6 88 Gear Shaft 89 Pin 2.5x4 Cross Headed Screw M6x12 (Machine for assembling Steel Guard) 90 Gear Pin B7.8x24 Cross Headed Screw M6x12 (Machine for assembling Wire Guard) 92 Gear Housing Plate Body Cover - Left 93 Motor Support Shoe - Right 72 Hex.
- Page 22 STEEL GUARD STEEL GUARD WIRE GUARD WIRE GUARD 65575UK00M111.indd 22 2019/8/30 11:52:49...
- Page 23 Steel Guard Parts List Wire Guard Parts List Description Q'ty Description Q'ty 106 Cross Headed Screw M5x12 Cross Headed Screw 106* M6x20 107 Top Guard Plate 2F 108 Locknut M5 107* U-shaped Plate 109 Plate Connector 108* Top Guard Plate 2F 110 Top Guard Plate 1F 109* Flange Face Locknut M6 Left Guard Plate F...
- Page 24 65575UK00M111.indd 24 2019/8/30 11:52:49...
