BATH MIXING PROGRAM
PROGRAMME DU MITIGEUR POUR LA SALLE DE BAIN
PROGRAMA MEZCLADORES BAÑO
Art. 35344
Installation of built-in parts
Installation des parties de l'encaissement
Instalación partes por empotrar
Gessi SpA - Parco Gessi
13037 Serravalle Sesia (Vercelli) - Italy
Phone +39 0163 454111 - Facsimile +39 0163 459273
www.gessi.com - gessi@gessi.it

Advertisement

loading
Need help?

Need help?

Do you have a question about the 35344 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gessi 35344

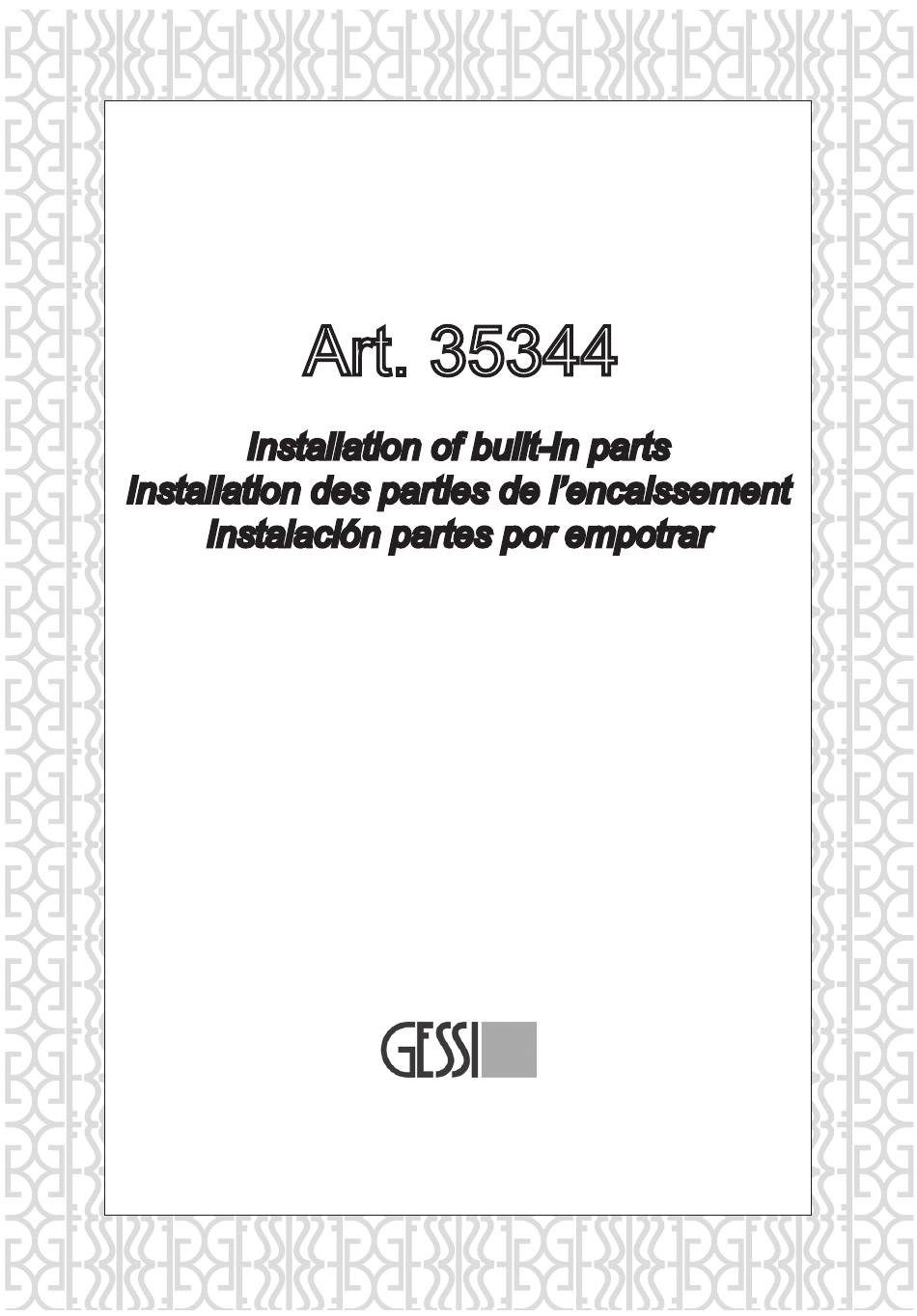

  • Page 1 PROGRAMA MEZCLADORES BAÑO Art. 35344 Installation of built-in parts Installation des parties de l’encaissement Instalación partes por empotrar Gessi SpA - Parco Gessi 13037 Serravalle Sesia (Vercelli) - Italy Phone +39 0163 454111 - Facsimile +39 0163 459273 www.gessi.com - gessi@gessi.it...
  • Page 2: Caution - Warning

    MUST NEVER BE EXCEEDED, as it may damage and/or cause ruptures and/or leakages and/or even break the product, and present a potential hazard and danger to safety, health and/or property. Following are the technical data with respect to the installation of Gessi plumbing products. ► W orkingpressureshouldnotbelowerthan0,5bar(7,25psi)andnotbehigherthan5bar(72Psi).In case of higher working pressure use a pressure reducer valve.
  • Page 3 Ci-dessous nous indiquons les données techniques concernant l’installation des produits sanitaires Gessi. ► L apressiondeservicenedoitpasêtreinférieureà0,5bar(7,25psi)etsupérieureà5bar(72Psi).En cas de pressions de service plus hautes utiliser une soupape de réduction de la pression.
  • Page 4 1 - ¡CUIDADO!! LES ROGAMOS QUE TENGAN EN CUENTA QUE NUNCA la presión y/o la temperatura máximaaconsejadaNOTIENEQUESERSUPERADA,yaquepodríadañary/ocausarrupturasy/o pérdidasy/oaveríasdelproductoy,porlotanto,representarunriesgoyunpeligropotencialpara la seguridad, la saludad y/o la propiedad. A continuación Les proporcionamos los datos técnicos relativosalainstalacióndelosproductosdegriferíaGessi. ► L apresióndeejercicionotienequeserinferiora0,5bar(7,25psi)ysuperiora5bar(72Psi).Encaso depresionesdeejerciciomayores,utilicenunaválvuladereduccióndelapresión. ►Presiónmáximadeensayodurantelainstalación:8bar(116psi). ► E vitengrandesdiferenciasdepresiónentrelaalimentacióndelaguafríayaquelladelaguacaliente. Lasdiferenciasdepresión,elaguaconunalatocontenidomineralylassustanciasjabonosaspueden...
  • Page 5 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES Before installation and setting to work Attention! The feeding pipes have to be rinsed thoroughly before the installation of the mixer, so that no shavings, welding or hemp residual or other dirt can be found in the pipes. Foreign bodies can enter the mixer through the rinsed pipes or the general water plant and could damage the washers/ring washers.

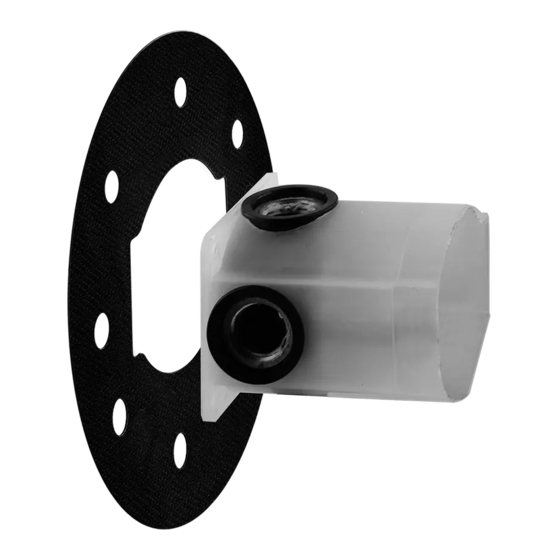

  • Page 6 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES Package content: 1-Built-inbody 2-Wallgasket Contenu de l’emballage: 1-Corpsencastrement 2-Gainemurale Contenido del embalaje: 1-Cuerpoporempotrar 2-Juntadepared...
  • Page 7 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES - Installation tools - Outils nécessaires pour l’installation - Herramienta necesaria para la instalación...
  • Page 8 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 1 Fig. 2...
  • Page 9 INSTALLATION - INSTALLATION - INSTALACIÓN Built-in body installation Before starting make sure the water network is off. Fig. 1 - To create the proper seat for the built-in body check the actual overall sizes and consider the minimum and maximum built-in depths shown on the plastic protection pre-installed on the body. Fig.
  • Page 10 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 3 Fig. 4 1/2” NPT -m Cold 1/2” NPT -m 1/2” NPT -m Fig. 5 Fig. 6...
  • Page 11 INSTALLATION - INSTALLATION - INSTALACIÓN Built-in body installation (continues...) Fig. 3 - Position the pipes of the water network using the specific connections. Fig. 4 - Insert the body in the slot previously obtained in the wall. Fig. 5-6 - On the front part of the protection is indicated the installation direction of the built-in body. Check that the positioning of the built-in body is within the limits reported on the body itself considering the tiled surface of the body.
  • Page 12 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 7 Fig. 8 Fig. 9 Fig. 10 Open Exit Cold Use hemp or teflon Employer chanvre ou teflon Usarcáñamooteflón...
  • Page 13 INSTALLATION - INSTALLATION - INSTALACIÓN Built-in body installation (continues...) Fig. 7-8 - Stabilize the body inside the wall identifying with the help of a spirit level, the proper positioning. Fig. 9 - Connectthesupplypipestothebodyfollowingtheindicationsinthefigure.Werecommendusing hemp to guarantee tightness on the threads. Fig.
  • Page 14 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 11 Fig. 12 Fig. 13...
  • Page 15 INSTALLATION - INSTALLATION - INSTALACIÓN Built-in body installation (continues...) Fig. 11-12 - Pressurize the outlet pipes connected to the body and check that in the connection point there are no leakages. Fig. 13 - If no problems arise at the stage of system test, close the supply network and carry out the installation.
  • Page 16 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 14 Fig. 15 Fig. 16 Fig. 17...
  • Page 17 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 18 Fig. 19 Built-in body installation (continued...) Fig. 14 - Embed completely the built-in in the wall sticking as much as possible to its plastic protection. Fig. 15 - Applygluefortilesonthewall(notprovided). Fig. 16 - Position the wall gasket supplied on the built-in body sticking it to the wall completely the built-in body on which previously the adhesive was spread.
  • Page 18 INSTALLATION - INSTALLATION - INSTALACIÓN Instalación cuerpo por empotrar (continúa...) Fig. 14 - Empotren completamente el cuerpo adhiriendo, lo más posible, a la protección de plástico del mismo. Fig. 15 - Apliquenenlaparedcolaparabaldosas(noincluidaenelsuministro). Fig. 16 - Posicionenlajuntadeparedincluidaenelsuministroenelcuerpoempotradoparaqueadhiera completamente a la pared sobre la cual se ha aplicado anteriormente el ligante. Fig.
  • Page 20 ET41861-R1...
