LRP electronic Quantum Micro Reverse A.I. 84051 User Manual

Digital speed control

Advertisement

Quick Links

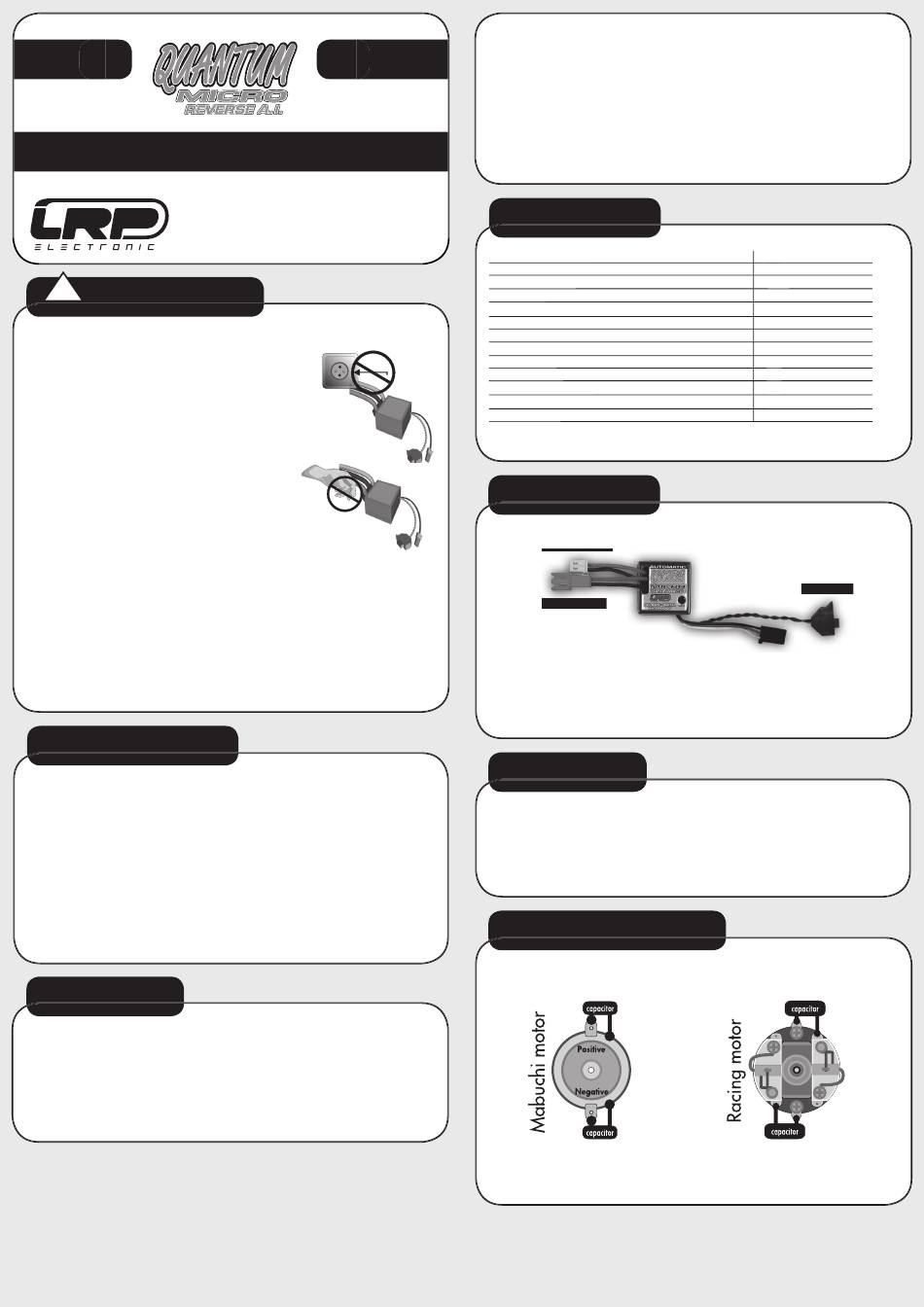

RA00149
ORDER NO,:
84051
USER GUIDE
LRP electronic GmbH
Wilhelm-Enssle-Str. 132-134, 73630 Remshalden, Germany
Tel.: int+49-7181-4098-0, Fax: int+49-7181-4098-30
INFO@LRP-ELECTRONIC.DE WWW.LRP-ELECTRONIC.DE
!
WARNING NOTES
• IMPORTANT: Never leave your RC model unsupervised when the
battery is plugged in. If a defect occurs, it could set fi re to the
model or the surroundings.
• Never wrap your speed-control in plastic fi lm or metal foil. In fact,
make sure it gets enough fresh air.
IMPORTANT: Pay close attention to the following points, as they
will destroy the speed-control and void your warranty:
• Never solder a Schottky diode to the motor when you are using an
LRP Quantum Micro Reverse A.I. speed-control. A Schottky
diode will destroy any forward/reverse speed-control.
• Never allow the output stages (FETs) to touch a metal surface
- short-circuit hazard.
• Never cut off the original power plug.
• If the speed-control is connected to the motor, never run the mo-
tor directly with a separate battery or run-in device.
• Never connect the speed-control incorrectly or with reversed
polarity.
• All wires and connections have to be well insulated. Short-circuits
will destroy the speed-control. Pay special attention to the recei-
ver- and switch wires.
• Never change the polarity of the receiver connector.
• Never open the speed-control and never solder on the PCB.
INSTALLATION TIPS
• Affi x the speed control using the supplied doubled-sided adhesive tape.
• Make sure there are enough cooling slits in the body. This will increase the performance and
life of all the electronic components.
• Position the speed control where it is protected in the event of a crash.
• Install the speed control so that you have easy access to the plugs.
• Make sure there is enough clearance (about 3cm) between the speed control, power cable
and antenna receiver. Avoid any direct contact between power components, the receiver or
the antenna. This can cause interference. If interference occurs, position the components at
a different place in the model.
• The aerial should be run vertically up and away from the receiver. Avoid contact with any
parts made of carbon fi bre or metal. If the aerial is too long, don't coil up the excess length.
It is better to cut it down to a length of about 35 cm. See also the instructions supplied with
your radio control system.
INSTALLATION
• Solder the capacitors to the motor.
• Attach the speed control to the model.
• Connect the speed control to the receiver (Position: channel 2).
• Connect the speed control to the motor, using the yellow connector.
• Then check all connections before connecting the speed control to a battery.
CAUTION: If a connection is incorrect, it will destroy the speed control.
• The speed control is now ready to start.
Dear Customer,
thank you for your trust in this LRP product. By purchasing an LRP Quantum Micro Reverse A.I.
FORWARD + REVERSE
digital speed control, you have chosen a high-performance speed control full of new design
NO MOTORLIMIT
features, such as:
(WITH MICROSIZE MOTORS)
• Fully waterproof and shock-resistant
• LRP A.I. Automatic Setup
• Fail Safe System
Please read and understand these instructions completely before you use this product!
SPECIFICATION
Forward/Brake/Reverse
Case Size
Weight (excl. wires)
Voltage Input
Voltage Input
Typical Voltage Drop @10A*
Rated Current*
Rec. Motor Limit**
B.E.C.
High Frequency
High Frequency
Fail-Safe-System
Fail-Safe-System
Multi-Protection-System
Connectors
Setup Procedure
Setup Procedure
* Transistors rating at 25°C junction temperature. Specifi cations subject to change without notice.
** @ 6cells (7,2V) with micro motors
CONNECTIONS
Yellow Connector (Motor)
Yellow Connector (Motor)
Red Connector (Battery)
Red Connector (Battery)
RECEIVER CONNECTING WIRE:
This LRP speed-control is equipped with a LRP Multicon receiver wire. As supplied, it will easily
fi t in all ordinary receivers.
WATERPROOF
• Due to latest production technologies and use of HighTech materials, it was possible to make
the LRP Quantum Micro Reverse A.I, fully waterproof! This material also makes the speed
control more shock resistant then other similar products.
• It's no longer needed to seal your speed-control when you are driving in the rain/snow! But
please make sure you still seal your other electronic components (receiver and servo) since
these are normally not waterproof.
MOTOR SUPPRESSION
Motors with no capacitors or not enough capacitors may interfere with the speed control. To
avoid this, solder the supplied capacitors to your motor (see picture).
CAUTION: Never use Schottky diodes in conjunction with a forward/reverse speed control, e.g.
the LRP Quantum Micro Reverse A.I. digital.
• Blue super-shielded case
• Multi-Protection System
With operating this product, you accept the LRP warranty terms.
yes
yes
26.0 x 26.0 x 15.7mm
17.0g
4-7 cells (4.8-8.4 V)
0.160V
60A
No Motorlimit
5.0 V
yes
yes
yes
yes
yes
Standard Micro style
Automatic
On/Off Switch
On/Off Switch
Receiver Lead
