Summary of Contents for Spide HA06

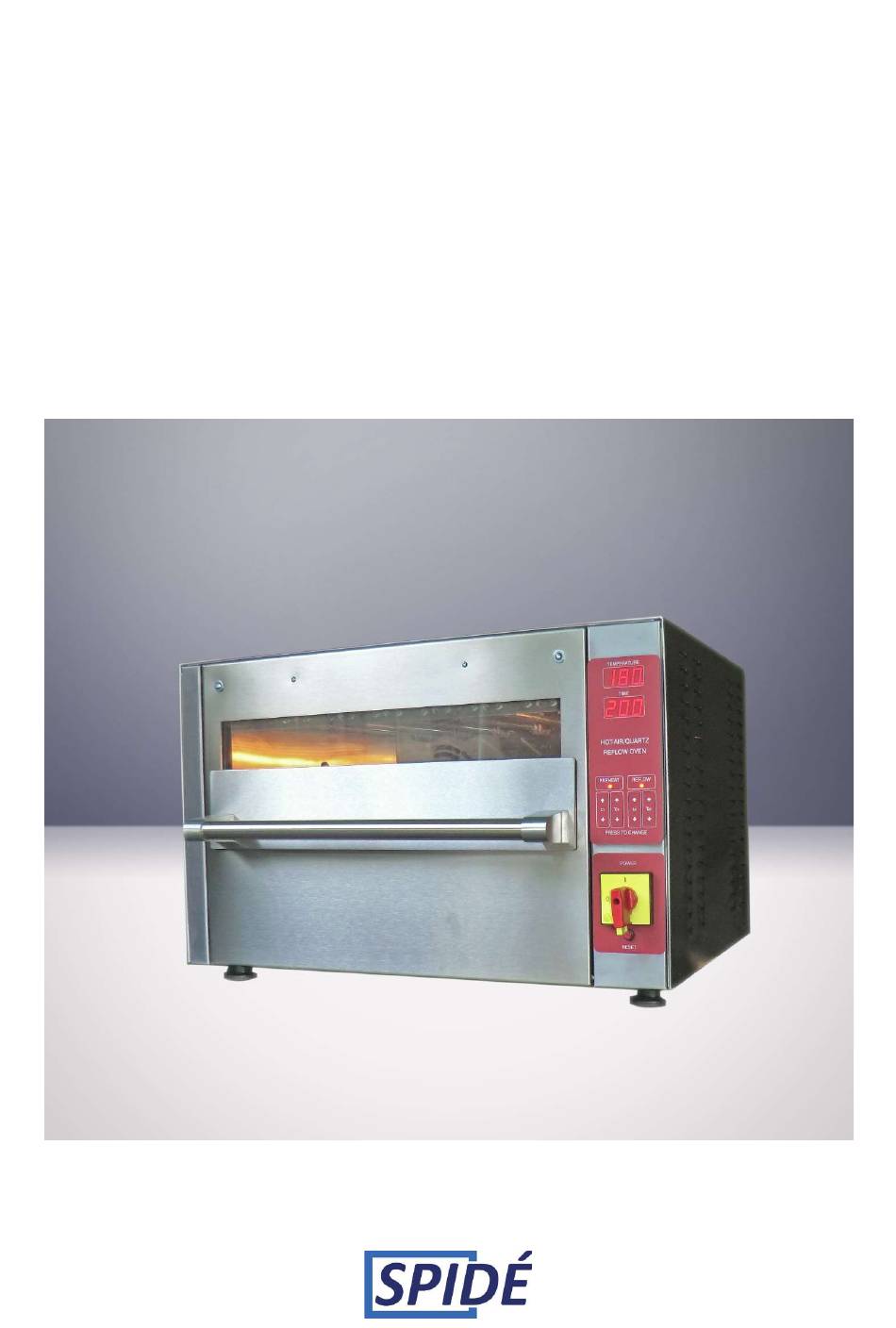

- Page 1 HA06 (SDO Hot Air One) HOT AIR / QUARTZ REFLOW OVEN User manual Version 2.25...
-
Page 2: Table Of Contents
Rev. 2.25 Manual HA06 Hot Air / Quartz Reflow Oven June 2018 Tabel of contents IMPORTANT SAFETY RULES FORCED AIR CONVECTION OVEN..............2 Introduction............................. 4 Inside the box ............................4 Installation............................... 4 Controls explained........................... 5 Changing the soldering parameters......................6 Soldering your first PCB ........................... -
Page 3: Important Safety Rules Forced Air Convection Oven
Rev. 2.25 Manual HA06 Hot Air / Quartz Reflow Oven June 2018 IMPORTANT SAFETY RULES FORCED AIR CONVECTION OVEN Risk of fire and burning: When the oven is in production mode it is dangerous to leave the oven unattended, high temperature and long producing times can be overheat the oven what can lead to fire. - Page 4 Rev. 2.25 Manual HA06 Hot Air / Quartz Reflow Oven June 2018 In the case this is happening: Switch off the oven immediately or/and, pull the plug out of the wall socket. Ask your supplier what to do. Be sure the line cord is not making a sharp hook or is hanging on sharp things. Avoid line cord to be in contact with warm or hot surfaces.
-
Page 5: Introduction
June 2018 Introduction. The HA06 is a solder oven for SMD component with the use of lead free paste. The oven is working with full convection forced air during the preheat stage. When the reflow stage is entered the heating will be done by hot air and quartz lamps. The lamps are needed to get a short ramp speed. -
Page 6: Controls Explained
Rev. 2.25 Manual HA06 Hot Air / Quartz Reflow Oven June 2018 Controls explained. On the front you will find 8 buttons, 2 LED’s, 2 number bars and also the main switch. The functions are: 1. A - Temperature display Here the temperature is displayed. -
Page 7: Changing The Soldering Parameters
Rev. 2.25 Manual HA06 Hot Air / Quartz Reflow Oven June 2018 5. Switches G. With those switches you can set the reflow time between 1 and 999 seconds. 6. Switches H. With those switches you set the reflow set point temperature between 100 and 290 °C. -
Page 8: Soldering Your First Pcb
Rev. 2.25 Manual HA06 Hot Air / Quartz Reflow Oven June 2018 given because it depends on both solder paste and components. As mentioned before: let your paste supplier inform you about best practice. If you are unexperienced and you will solder a PCB with lead free paste use this setting to start from: Use paste with a melt point of 217 °C. -
Page 9: Inert Gas Extension (Optional)
Rev. 2.25 Manual HA06 Hot Air / Quartz Reflow Oven June 2018 3. The reflow cycle is started. The quartz lamps are turn on for 100% and the temperature display shows a rapidly rising temperature. The time display is decreasing in seconds. -
Page 10: Technical Specifications
Rev. 2.25 Manual HA06 Hot Air / Quartz Reflow Oven June 2018 Technical specifications Power requirements : 200 – 230 VAC. / 50-60Hz Max. power consumption : 3680W Pre-heat zone : 2180W Reflow zone : 1500W Max. PCB substrate surface : 300 x 370mm Max. -
Page 11: Error Codes
Rev. 2.25 Manual HA06 Hot Air / Quartz Reflow Oven June 2018 “burn in” this lubricant. It will give a lot of smoke. Therefor you need to do this procedure in a well- ventilated area. Apply a normal solder cycle several times.
