A1 Security Cameras ACTi PMAX-0706 Quick Installation Manual

P C
ACKAGE ONTENTS
The carton should contain the following items:

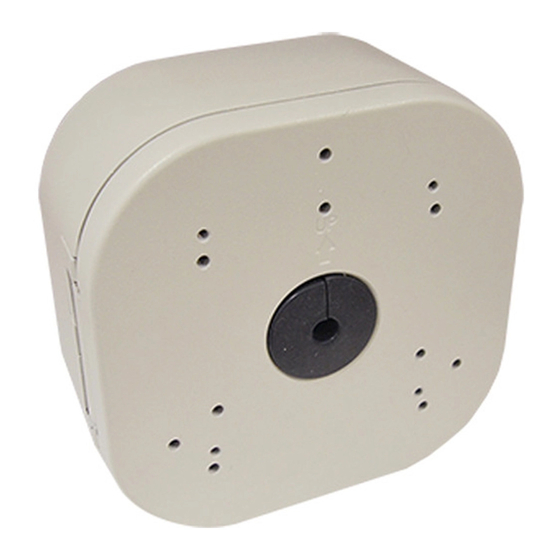

 Junction box
 Screw pack x 2
 Cable gland
 Conduit gland
If any item is missing or damaged, please contact your local reseller for replacement.
U J
SING THE UNCTI ON
1. Insert the camera cables through the hole on the Junction Box, then mount the camera onto the Junction Box.
2. Select the rubber plug and plate suitable for the
thickness of the camera cable.
3. Attach the rubber plug through the cable. Then align and insert the rubber plug.

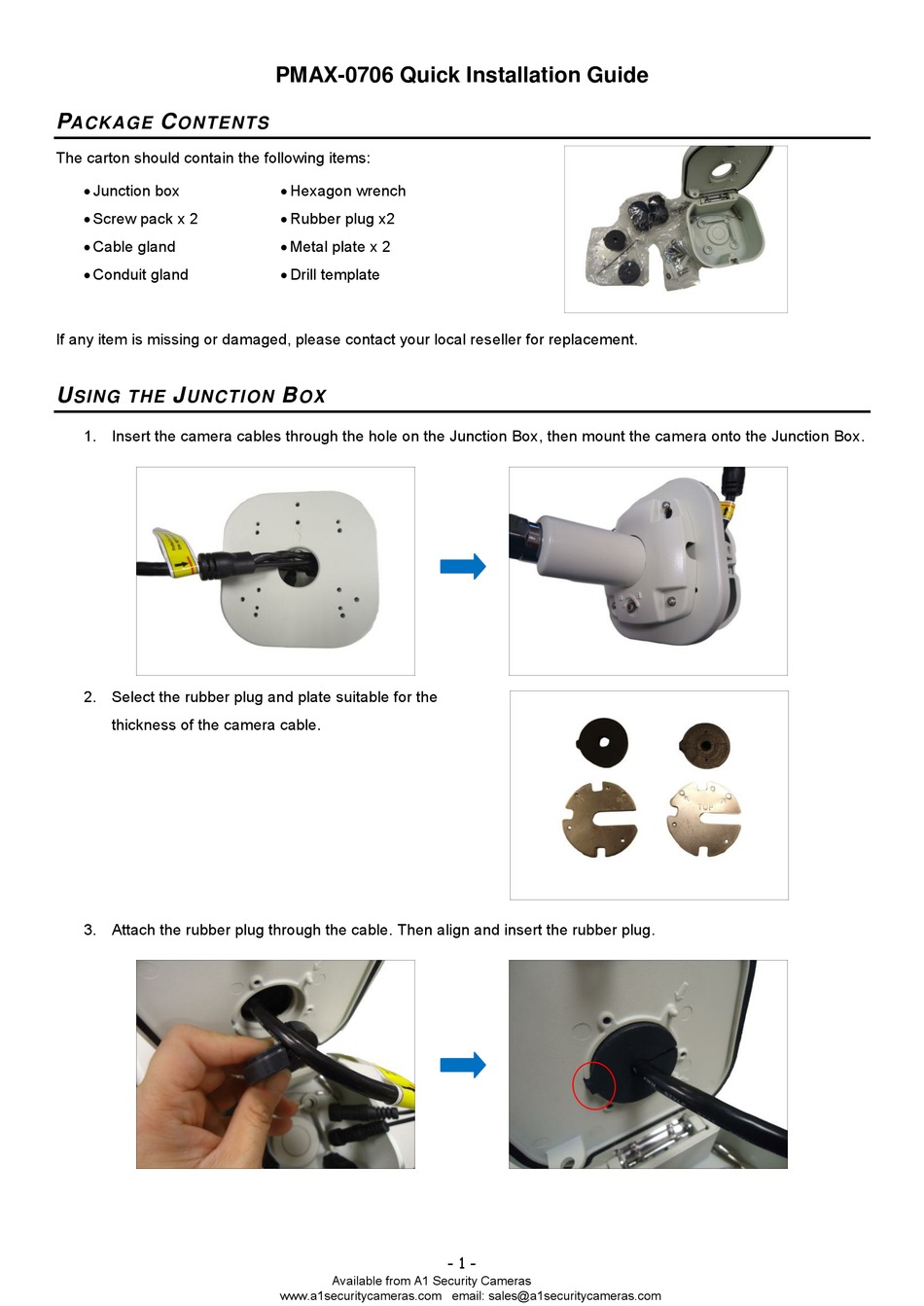

PMAX-0706 Quick Installation Guide
 Hexagon wrench
 Rubber plug x2
 Metal plate x 2
 Drill template
B
OX
- 1 -
