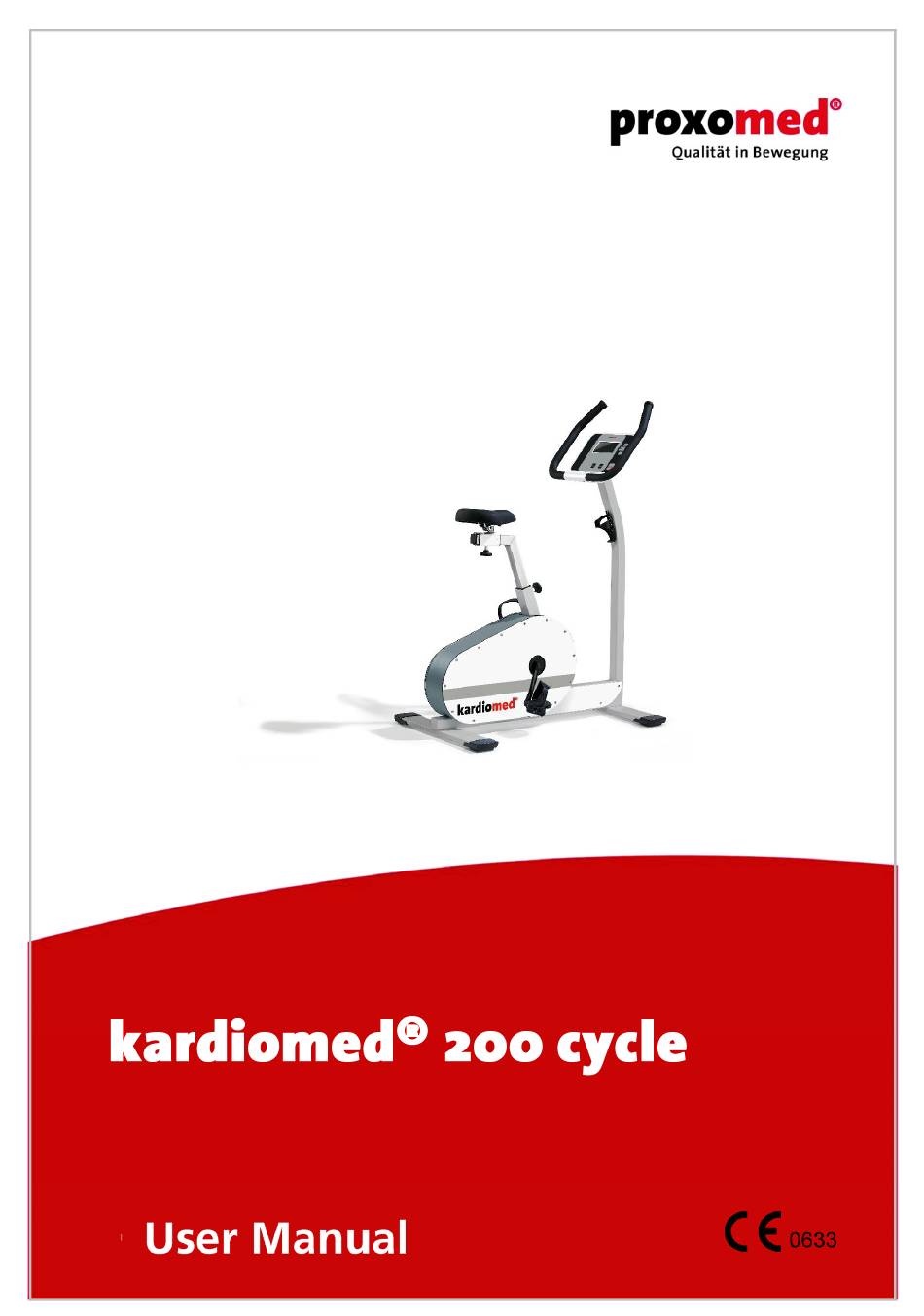

User Manual kardiomed cycle 200 med
Version 1.0
Seite 1 von 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the kardiomed 200 cycle and is the answer not in the manual?

Questions and answers

Summary of Contents for Proxomed kardiomed 200 cycle

  • Page 1 User Manual kardiomed cycle 200 med Version 1.0 Seite 1 von 15...

  • Page 2: Table Of Contents

    Contents General ............................. 3 Classification of the unit ......................3 Assembly for partly disassembled delivery ................3 Safety warnings ........................5 Safe assembly of the unit ....................5 Safe training ........................6 Indications and contraindications ..................7 Operating of the display ......................7 Polar –...

  • Page 3: General

    General Read the instruction manual with its security advices and warnings prior to the initial use of the units, to secure a safe and conventional use. Keep this document for future reference and pass it with the unit in case of resale. Classification of the unit The units of the cardio line med are medical products accordingly to guideline 93/42 EEC, categorized in class IIa.
  • Page 4 10 Place the crank onto 9 The pedals as well as the axis and fix with the cranks are marked the axis screw (B) with a with the side (R/L). Screw 14mm socket. Tighten the left crank and left the crank very strong pedal together.

  • Page 5: Safety Warnings

    Safety warnings Safe assembly of the unit Monitor for individual Handlebar settings and visualization of the training data Position of the Typ Label Saddle Adjusting screw for the horizontal Adjusting lever for the saddle adjustment vertical saddle adjustment Pedals Adjustment feet for levelling User Manual kardiomed cycle 200 med...

  • Page 6: Safe Training

     Place the unit on a solid, flat and non-sliding ground and level the unit with the adjusting feet, so that it does not move.  For the set-up a safety clearance of 100 cm to all sides is necessary to ensure a safe access also in emergencies.

  • Page 7: Indications And Contraindications

    Indications and contraindications Indications  Mobility of the locomotors apparatus  Strengthening of the muscles  Strengthening of the cardiovascular system Contraindications  Cardiovascular affections  Pains of the locomotors apparatus  During workout  Pains in the thoracic region ...

  • Page 8: Overview Display/Button Functions

    Overview display/button functions Reset button Erläuterung der Tasten im Uhrzeigersinn beginnend von der Stopptaste: Clockwise explanation of the buttons, starting with the Stop button.  The STOP button stops the workout and activates the electronic brake (except for the treadmill), which will brake at a maximum workload for 8 seconds to bring the movement to a halt.

  • Page 9: Display

    Display Fig.1: In this image all segments of the LCD display can be seen. In usage only the relevant information is shown.. Depending on the program, the following parameters are shown:  Program: Number of the program  Time: Actual accumulated time of workout or remaining, effective workout time. An arrow indicates the counting direction ...

  • Page 10: Training Control Via The Storage Media

    Training control via the storage media The storage media has a standard fitting in all units of the cardio line. The storage media systems supports the user in all aspects of training activities. The system consists of a monitor unit with the storage media reader. The slot used to enter the media is located on right side of the monitor casing and the media must be entered.

  • Page 11: Pulse Controlled Training

    Programms cycle med usage manual Storage Controlling via media PC software 1 Quick 2 Watt 4 Puls Program specifications Quick Start The quick start program allows an immediate workout start. The trainee simply has to begin pedalling, and the display starts operating. No programming is required. Using the +/- buttons, the level (degree of intensity) can be varied at all times.

  • Page 12: Maintenance

    Maintenance All cardio machines from emotion fitness are characterized by excellent quality. The units are durable and only need little maintenance, to function over a long period of time. The required maintenance hast to get conducted conscientious. Warning: Only authorised service is allowed to open the unit. You can only keep the safety level by checking the unit regularly for damage and attrition.

  • Page 13: Maintenance For Authorised Specialists

     Clean the parts of the seat post and seat sleigh with silicone spray and wipe it dry afterwards.  Check the pedal straps for damages.  Only use original spare parts, therefore please contact us. Warning: Retorque cranks and pedals After the first 10 hours in usage the cranks and pedals need to get retorqued.

  • Page 14: Warranty

    2. The required spare part(s) are shipped. 3. An exchange unit is arranged and sent to the user. The defective parts must be sent to proxomed within 48 hours. Otherwise the cost for spare parts that have German headquarters: been delivered will be charged.
  • Page 15 Errors and omissions excepted.. User Manual kardiomed® 200 cycle, valid since: Oct. 2015 10062900, kardiomed 200 Cycle up to 130 kg user weight ® proxomed is a company certified by the TÜV SÜD Product Service GmbH.
