Summary of Contents for Kitchenware CT-150

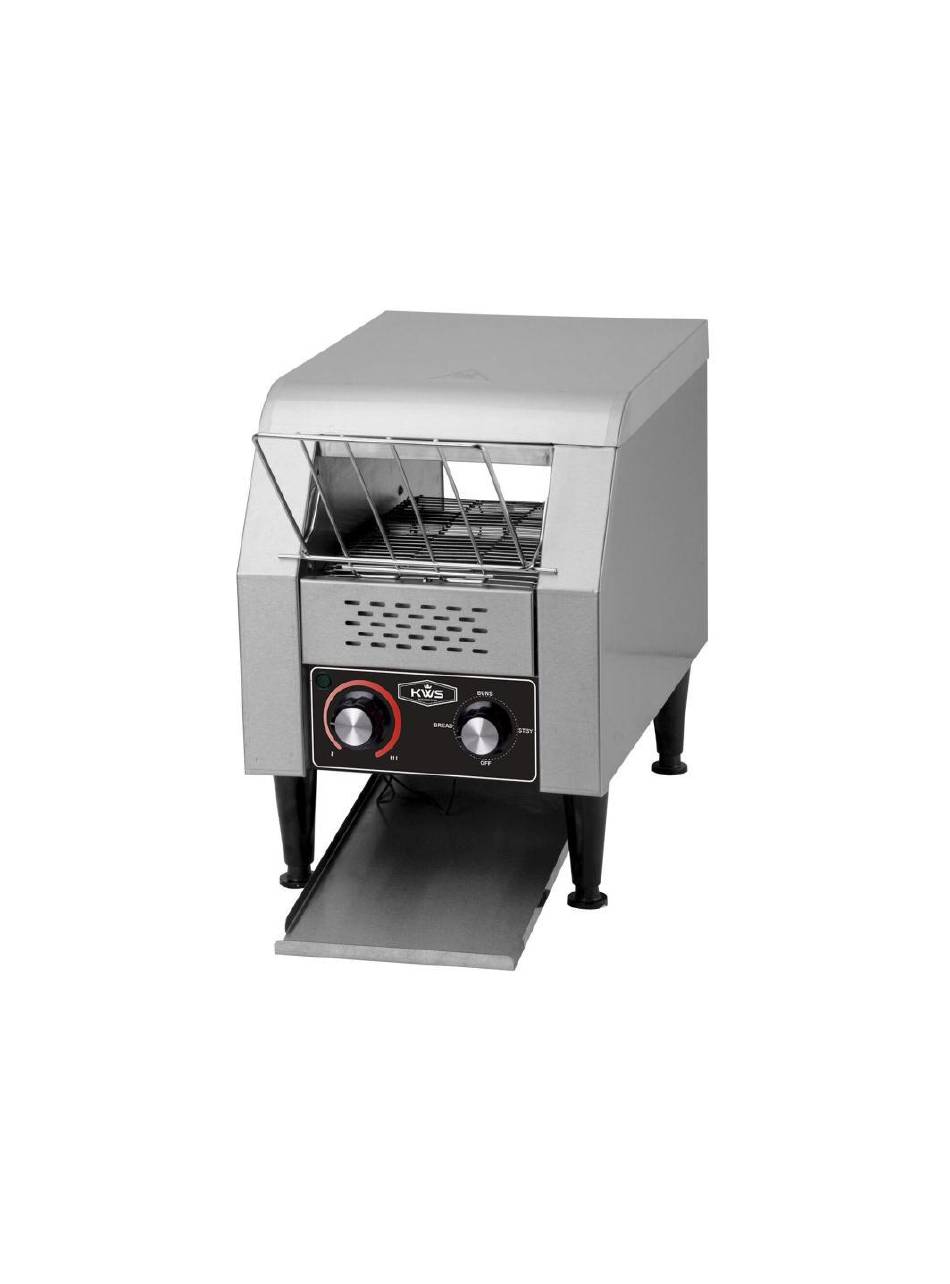

- Page 1 ELECTRIC CONVEYOR TOASTER INSTRUCTION MANUAL conveyor toaster Thank you for purchasing this KitchenWare Station electric . Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
- Page 2 2. You should receive the toaster, (4) legs, bottom tray, guide net, back tray and an instruction manual. Contact KitchenWare Station Customer Service Department if you did not receive all of these materials or if you need additional spare parts.
-
Page 3: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION Thank you for purchasing KitchenWare Station Electric Conveyor Toaster. Each unit has been manufactured to ensure safety and reliability. Before using for the first time, please read the instructions carefully and keep them for further reference. WARNING! READ AND SAVE THESE INSTRUCTIONS. - Page 4 OPERATING INSTRUCTIONS LOCATION Place the conveyor toaster on a suitable counter or tabletop. Allow enough space around the conveyor toaster for safety operation. FEATURES SPEED/ COLOR CONTROL Determines the length of time the toast or product is in the heating chamber. The slower the speed, the longer the exposure and the darker the product.
- Page 5 4. Insert the back tray. CONVEYOR TOASTER OPERATION Product appearance or color is dependent on conveyor speed and type of product. These other factors may also affect the toasting color: • Moisture content of the product • Sugar content of the product •...
-
Page 6: Cleaning And Sanitizing
CLEANING AND SANITIZING IMPORTANT: To maintain the appearance and increase the service life, clean and sanitize your equipment daily after use. Clean before use if equipment has not been used for a while. • BEFORE CLEANING, SERVICING, OR DISASSEMBLE ANY PARTS, always turn conveyor toaster OFF and unplug unit. -
Page 7: Technical Parameters
TECHNICAL PARAMETERS Model CT-150 CT-300 CT-450 Voltage (V) 110V 110V 110V Power (W) 1200W 1500W 1700W Frequency (Hz) Package Dimension 20 x 14 x 15 20 x 18 x 15 20 x 22 x 15 (Inch) Efficiency (pcs/h) Circuit Diagram HL1----- Power indicator light ∞------Fan EH1，EH2------Electric heating tube... - Page 8 Models: CT-150, CT-300, CT-450...
- Page 9 Part No. Description Part No. Description TOP COVER BOTTOM TRAY TOP COVER INNER PANEL UPPER ROOF BASE TOP HEATING TUBE BAFFLE MOTOR HEATING TUBE MOUNT DRIVE GEAR UPPER HEATING TUBE CHAIN RIGHT PLATE GEAR CONVEYOR BELT LEFT PLATE HEATING TUBE MOUNTING BUSHING PLATE SECURE PLATE...
-
Page 10: Customer Care
Santa Fe Springs, CA 90670 Toll Free: 1-888-505-3698 (Monday – Friday 10:00am – 5pm PST) Email: Customerservice@kitchenwarestation.com Official Website: http://www.kitchenwarestation.com NOTE: Spare Parts can be purchased directly on KitchenWare Station official website or contact customer service department if part not found. -
Page 11: Limited Warranty
Warranty valid only in the 48 contiguous United States plus the District of Columbia. KitchenWare Station reserves the right to change the price and specifications of the equipment and/ or material without notice. Prices are F.O.B plant of manufacture.
