Summary of Contents for E-TRAVELLER PURSUIT

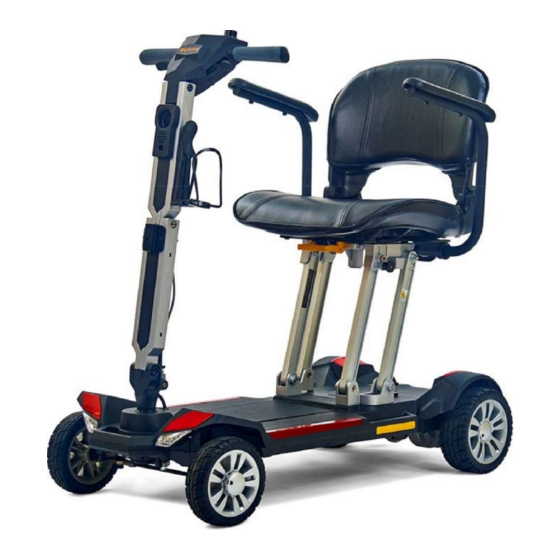

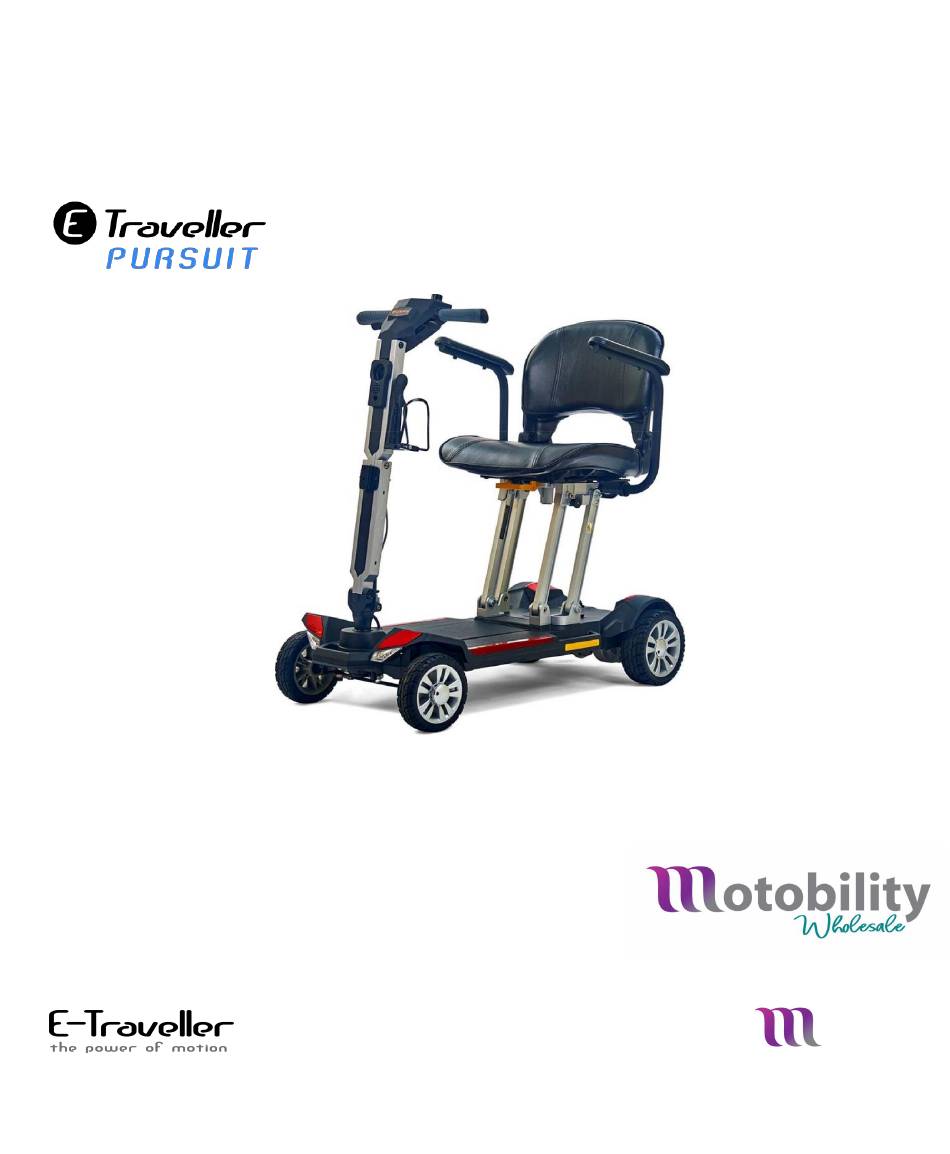

  • Page 1 Owner’s Manual Proudly brought to you by:...

  • Page 2: Table Of Contents

    Intended Use: The intended use of the E-Traveller Pursuit is to provide mobility to persons limited to a seated position that is capable of operating an electric scooter. Table of Contents TABLE OF CONTENTS.................................................. 2 1. INTRODUCTION..................................................4 1.1 F ................................................
  • Page 3 Congratulations on the purchase of your new E-Traveller Pursuit scooter. The Pursuit combines cutting edge technology with an attractive, highly functional design. We at Motobility Wholesale know that you have chosen a scooter that will give you years of dependable operation and also will enhance the quality of your life by providing you with the mobility to experience an active daily lifestyle.

  • Page 4: Introduction

    1. INTRODUCTION 1.1 Features and Benefits Your Pursuit scooter has been designed with your comfort in mind. It has also been designed to be a safe method of transportation when safety and operating instructions are followed. Control Panel: Hand Grips:...

  • Page 5: Safety Guidelines

    1.2 Safety Guidelines The symbols below are used in the owner's manual and/or on the product to identify warnings and to notify you of important safety information. Make sure you read and understand them completely. WARNING! Indicate(s) a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 6: Safety

    2. Safety Your E-Traveller Pursuit is a battery-operated personal mobility scooter. Please exercise caution and consideration when you are operating it. Driving your Pursuit carefully and thoughtfully will help ensure your personal safety and the safety of other people. Before learning to operate your Pursuit, have your authorized Motobility Wholesale dealer determine if it is advisable for you to practice getting on and off your Scooter and operating it in the presence of an attendant.

  • Page 7: Driving On Inclines

    Do not drive your Scooter in reverse down an incline. • Try to keep your Pursuit moving when climbing an incline. If you do come to a stop, restart and accelerate slowly and carefully. Do not try to descend or climb a slope whose gradient is greater than recommended.

  • Page 8: Motor Braking System

    5. When you have reached a level surface at the bottom of the slope, position the freewheel lever in the engaged position. See section 5. Operation 6. Carefully remount your Pursuit, and set the key switch to the on position to restore power.

  • Page 9: Medication

    Please use your E-Traveller Pursuit scooter often and allow it to expand the horizons of your daily life. The more mobility your E-Traveller Pursuit brings to you, the happier you will be, and the more satisfied we at Motobility Wholesale will be! But as with all things, especially motor-operated vehicles, observing a few rules and safety considerations will help ensure safe scooter operation.
  • Page 10 Never drive your Pursuit up or down a step or curb that is higher than the ground clearance listed on the specifications chart (see page 14).

  • Page 11: Your E-Traveller Pursuit

    Freewheel Switch Handle Figure 4. Your E-traveller Pursuit FOR YOUR RECORDS Please fill in your Pursuit information below. This information will be useful in the event that you ever need to contact E-traveller Technologies, concerning your Scooter. Model Serial Number...
  • Page 12 4. Your E-Traveller Pursuit - continued Specifications PS3500 Weight Capacity 300 lbs. / 136kg Rear Drive Wheels 3.6 mph / 5.8kmh Maximum Speed 6.5AH Battery: 7.4 miles / 12km Operating Range 10AH Battery: 15.5 miles / 25km 4.1in / 105mm...

  • Page 13: Operation

    Pursuit. Key Switch This switch turns the power on and off to your Pursuit. See figure 5. Insert the key into the key switch.

  • Page 14: Tiller Adjustments

    This lever operates both the speed and the direction of the Pursuit. This self-centering lever system controls your Pursuit speed (up to the maximum speed set by the speed adjustment dial) and its forward and reverses direction. See figure 5.

  • Page 15: Seating

    Push the armrest forward. See figure • Do not sit in or attempt to drive your Pursuit unless the seat frame is locked in the up position and the seat is locked securely to the seat frame. Accidental folding of the seat frame or...

  • Page 16: Freewheel Mode

    5.4 Freewheel Mode Your Pursuit is equipped with a freewheel lever that can set your Scooter in or out of freewheel mode. Figure 9: Freewheel Switch (Drive Position) To disengage the parking brake and put your Scooter in freewheel mode: Press the (1) symbol on the freewheel switch.

  • Page 17: Riding Your Pursuit

    Or your first driving session, make certain that your Pursuit starts out on a level surface and that you will continue driving on a level surface.

  • Page 18: Basic Driving

    Pull-on, the throttle control lever, to gently accelerate your Pursuit. Release the throttle control lever to allow your Pursuit to come gently to a full stop. Practice these two basic functions until you feel that you have control of your Scooter.

  • Page 19: Riding Your Pursuit - Continued

    Learn and follow those tips, and with surprising ease, you will soon be in control of your Pursuit as you maneuver it through doors, up and down ramps, up and over curbs, through grass and gravel, and up and down inclines.

  • Page 20: Disassembly

    7. Disassembly Your Pursuit scooter is designed to be disassembled/folded easily in order to be transported. When disassembling your Scooter, please be sure to follow these simple instructions. Remove the Seat Place your Scooter on a level surface. Remove the key from the key switch before you begin to disassemble/fold your Pursuit.
  • Page 21 Fold-Down and Lock the Seat Frame Pull both spring-loaded seat pins outward simultaneously, and while holding them out; push the seat frame forward and down. See figure 14. WARNING! This area is a pinch-point and requires your full attention. Be careful not to pinch your fingers between the frames.

  • Page 22: Assembly

    WARNING! Pinch Point: A pinch point is an area where you MUST consider your fingers to be sure they DO NOT become pinched between two metal or hard plastic areas. The greatest chance of pinch points becomes possible during the assembly of the Pursuit scooter.
  • Page 23 Assembly from the folded compact position 1. Lift the seat off of its holder on the folded tiller. See figure 17. 2. Squeeze the yellow tiller lever and raise the tiller up until it stops. See figure 18. Figure 17. Folded Position Figure 18.
  • Page 24 5. Place seat onto the seat frame facing forward and push down to lock it. See figure 21. 6. Pull each arm upward until they lock into place. See figure 22. Figure 21. Installing Seat Figure 22. Lifting Arm & Seat Back 7.
  • Page 25 Cautions & Warnings • Do not lift your Pursuit by its plastic body parts, seat, or tiller. Breakage of these parts is not covered by the warranty. • Do not use the tires or wheels to lift your Pursuit. The tires may rotate and cause injury or damage.

  • Page 26: Care And Maintenance

    The main body and the control panel of your Scooter are formed ABS plastic for style and durability. Each Pursuit comes standard with removable colour panels in (Red, Blue, Green, White. and Orange. Colour panels can be changed easily by removing two screws for each panel.

  • Page 27: Cautions & Warnings

    To Charge the Battery Pack: Figure 24. Battery Pack The charger for your Pursuit is an off-board charger. To charge the battery pack, plug the charger into the charger port on the bottom side of the battery pack or control panel. See figures 24 and 25. When the battery pack is fully charged, disconnect the charger power cord from the wall outlet and from the charging socket.

  • Page 28: If Your Ursuit Doesnt Operate

    Scooter.  As you operate your Pursuit, battery voltages go down, and battery current must rise to satisfy the demands of the motor and of other electrical devices operating on your Scooter. This can cause a heavy current draw that can overload the scooter power module.

  • Page 29: Diagnostics

     of time up an incline above the recommended 6 degrees.  An overload can occur if your Pursuit is carrying a payload that is higher than the recommended weight capacity of 300 pounds.  Your Scooter will not operate until the motor control board cools back to its operational temperature range.
  • Page 30 10. Care and Maintenance - continued 5 Flashes/Beeps Indicates a brake problem.  The freewheel switch may be in the disengaged position. See page 19.  The brake or the brake wiring may be damaged.  For safety reasons, your Scooter was designed to cease operation until the problem is corrected. ...

  • Page 31: Fuses

    10. Care and Maintenance - continued 10.7 Fuses Non-Flash/Beep Code Faults If the following faults occur, please check the appropriate fuses located inside the power module panel or at the centre of the tiller. Refer to figures 26 and 27 below for fuse replacement and warnings.
  • Page 32 Proudly brought to you by:...
