Summary of Contents for Special mobility e-Mobby
- Page 1 User Manual e-Mobby UM0002-EN_e-Mobby 2_1.0.docx...
-
Page 2: Table Of Contents
Accessories ········································································································· 10 Commissioning ····································································································· 10 Operating instructions ·································································································· 11 General overview operator controls and functions ························································· 11 Switching the e-Mobby ON and OFF ·········································································· 13 Driving conditions ·································································································· 13 Driving the e-Mobby ······························································································· 14 Balance ··············································································································· 15 Operating the e-Mobby features ··············································································· 15 3.6.1... - Page 3 Although this user manual is prepared with the utmost care, Special Mobility BV assumes no responsibility for errors or unintentional absences. Special Mobility BV shall not be liable against any damages of any nature arising from the use, and/or use of any options or accessories other than original Special Mobility BV products.
-
Page 4: Introduction
User Manual e-Mobby 1. Introduction Before the e-Mobby is being used, carefully read this user manual to get familiar with all its possibilities and limitations. Use this manual as a reference work and guideline, make sure the operator is well familiar with all functionality and options. -
Page 5: General Warnings, Cautions And Notes
FTR - serial nr. Dead man’s button CAD.EMV.NDSTP.02 Key main switch CAD.EMV.SLETL.04 ** : “LL” indicates the user manual language and is dependent on to which country the e-Mobby is sold Revision: 1.0 Page 5 of 30 Date of release: 2019-02-14 UM0002-EN_e-Mobby 2_1.0.docx... -
Page 6: Product Description
A maximum of two additional Mobby’s can be linked at the front of the e-Mobby which means a total of three persons can be transported with the e-Mobby. A luggage car can be linked at the back side of the operator platform to carry luggage. -

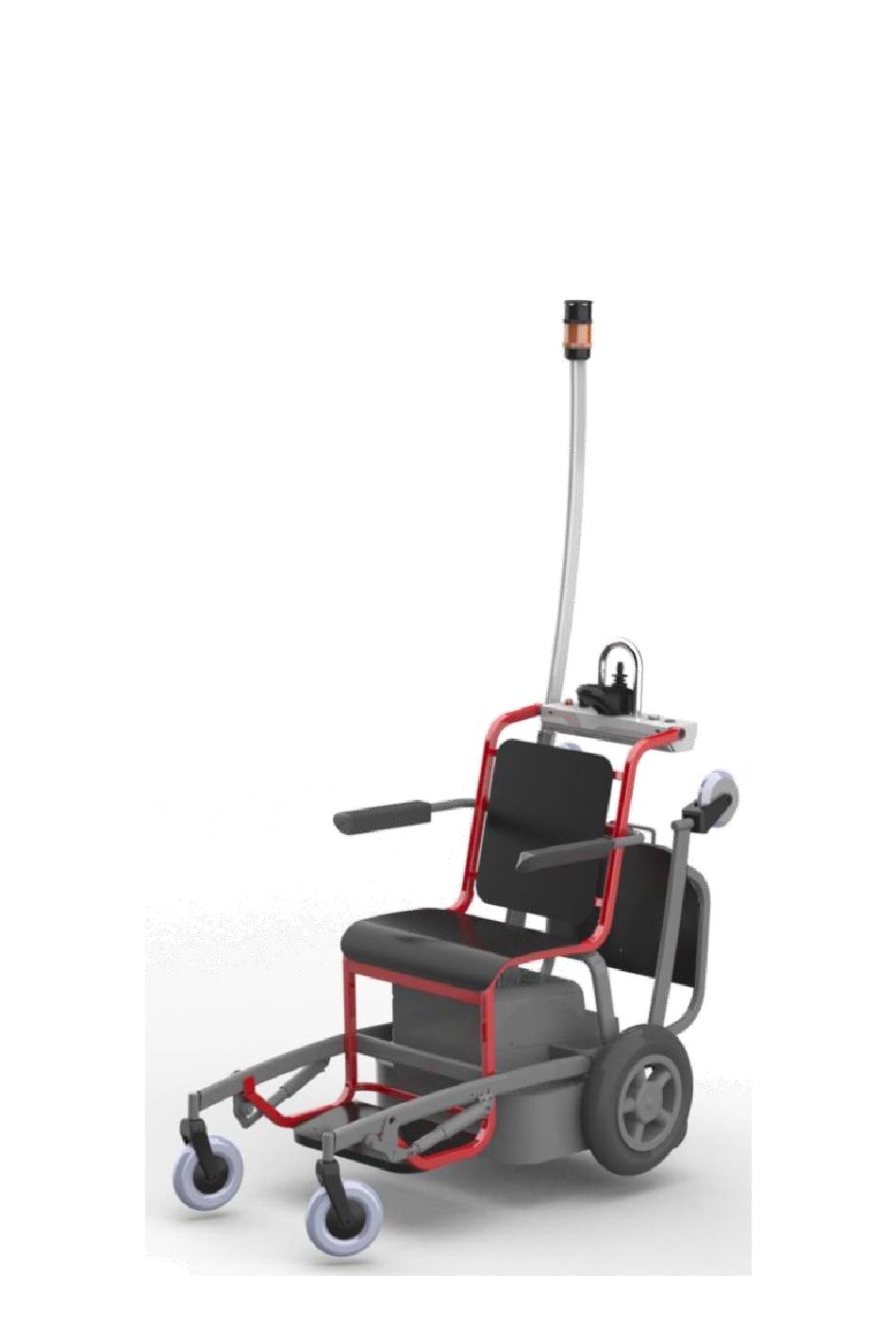

Page 7: Overview Of The Device
User Manual e-Mobby 4. Secondary user: Cleaning person Is responsible for cleaning the device in a correct way. Expertise and training: No special training or education is necessary. It is important that the cleaning instructions, described in this user manual, are followed to ensure proper functionality and lifetime. - Page 8 User Manual e-Mobby Ref. Description Signal pole Passenger seat Passenger arm rest Passenger foot rest Front swivel wheels Walking stick holder Electronic chair coupling (optional) Base frame Electric driven wheels Operator foot board (optional) Control panel Location of main switch and fuses Revision: 1.0...
-
Page 9: Configurations
User Manual e-Mobby 2.5 Configurations The e-Mobby is available in two major versions and multiple options or customizations. Also, software wise several customer specific configurations are applicable. 2.5.1 Major versions The main difference between the two available versions is the power supply: •... -
Page 10: Customizations
Customer specific notifications whiling operating the e-Mobby (e.g. drive sounds, additional horn, visual signals) 2.5.3 Options The e-Mobby has different options to complement the product and making daily use of the e-Mobby even more convenient. The following options are available: •... -
Page 11: Operating Instructions
3. Operating instructions 3.1 General overview operator controls and functions As addition to the overview of the e-Mobby (see §2.4) below a sum up of the applicable controls for the operator. These controls are explained further on in this manual. - Page 12 For electric lifting-unlocking coupled Mobby (optional) Activating lifting device For electric lifting-unlocking coupled Mobby (optional) Emergency stop For shutting down the e-Mobby in case of an emergency Dead man’s button For shutting down the e-Mobby in case the operator falls off Revision: 1.0...
-
Page 13: Switching The E-Mobby On And Off
4. Push the power button located onto the control panel to initiate the drive system. 5. Once initiated, the indicator lights on top of the control panel are continuously on. 6. The e-Mobby is now ready to drive, a flashing beacon combined with an audible signal indicates that the device is ready for use. -
Page 14: Driving The E-Mobby
When driving the e-Mobby, along with the flashing beacon a (predefined) audio signal plays continuously to notify bystanders. NOTE: The drive system is equipped with a brake function which is enabled if the e-Mobby is not moving. Once the operator activates the joystick for moving forward or backwards, the brake is released. -
Page 15: Balance
3.5 Balance The e-Mobby has the best stability when a passenger is seated, when driving without a passenger make sure to balance the e-Mobby in order to have maximum control. When leaning too much backwards, the front wheels may lose contact with the floor. -
Page 16: Walking Stick Holder
For more convenience, an optional footboard covered with a non-skid material for the operator is available. The operator does not have to walk behind the e-Mobby but can stand on a platform. In case this is not required, the platform is folding. -
Page 17: Wide Seat Base
3.6.3 Wide seat base The standard version of the e-Mobby contains a chair base, suitable for most passengers. In case transport of larger passengers is required, a different chair base with a wider frame is available. This does not compromise the functionality of the e-Mobby. -
Page 18: Electric Powered Lifters
The e-Mobby works with the patented Mobby-system to easily connect Mobby with each other. Normally, this action is done manually, but for the e-Mobby this can be done by actuators. The regular fixture is replaced by an actuator-mechanism which electrically lifts a Mobby. Operating the lifters is done as follows: 1. -
Page 19: Towing Hook For Luggage Cart
Lift the footboard a bit to position the pinion above the hole of the luggage cart tow bar. Gently lower the pinion until it snaps in the tow bar. You can now drive with the luggage cart attached to the e-Mobby. -
Page 20: Passenger Seat
User Manual e-Mobby 3D impression of luggage cart 3.6.7 Passenger seat Standard, the seat for the passenger is made from low-maintenance perforated panels. As an option, these panels can be exchanged by upholstered panels which give more comfort to the passenger. Below... -
Page 21: Miscellaneous Customizations
The other way is to lift an armrest (both left and right can be lifted) so that the passenger can sit down from the side of the e-Mobby. After sitting down, the passenger can face forward, the armrest can be lowered. -
Page 22: Docking A Mobby
3.8.1 Manual docking 1. Position an empty Mobby in front of the e-Mobby (or other Mobby) and make sure the fixture is just in front of the lifting knobs. 2. Use the handle at the back to lift the Mobby and slide-pull the Mobby backwards until the fixture is positioned over the knobs. -
Page 23: Charging The Batteries
3.9 Charging the batteries The e-Mobby is equipped with a built-in charger, dedicated for charging the battery pack. The charger cable contains a country-specific plug and fits a regular wall socket. Follow the steps below for charging the batteries: 1. -
Page 24: Safety Statement
5.4 Brake override In case the e-Mobby enters an error state or malfunctions, there is a facility to manually move the device. The e-Mobby has two drive motors, where each motor has a release lever to override the internal brake. -
Page 25: Thermal Protection
WARNING: Never park the e-Mobby with released brakes on a slope or comparable surface. The vehicle may roll down the slope and cause serious injury to bystanders. CAUTION: Overriding the brake function disables the brake functionality in general. After manually moving the e-Mobby, make sure the brakes are activated again! 5.5 Thermal protection... -
Page 26: Signal Protection
5.6 Signal protection The e-Mobby has a dedicated pole for visual and audible signals for alerting bystanders. These signal indicators are protected by a fuse, located at position K (see §3.1). If these functions do not work, first check the fuse and if required, replace it with a new one or contact the service technician. -
Page 27: Product Label And Used Symbols
The product label as shown above is only representing the general layout and information. The yellow marked parts are variable and not representative for your vehicle. Please refer to the attached label onto your e-Mobby to retrieve the actual and specific information. -
Page 28: Other Used Symbols
User Manual e-Mobby 7.2 Other used symbols Symbol Description Indicates the catalogue number Indicates the unique serial number Indicates the manufacturer of the device Indicates the date of manufacture Indicates that the instructions for use must be followed and read... - Page 29 User Manual e-Mobby Indicates the max. weight of the product Indicates that seat belts must be worn Indicates the position of the main switch Identifies the button for the horn Revision: 1.0 Page 29 of 30 Date of release: 2019-02-14...
-
Page 30: Technical Specifications
User Manual e-Mobby 8. Technical specifications Specification Description Motorized transportation of a person, not able to walk long distances Application in an indoor environment Model e-Mobby Width ±700mm; ±760mm for XL-version Height ±2000mm (incl. beacon light) ±1400mm with foot board folded Length ±1800mm with luggage rack unfolded...
