PLEASE REFER TO THIS INSTRUCTION SHEET PRIOR TO INSTALLATION
The IR Systeme Technik™ is designed to emit remote control signals effectively at the source devices connected to your DigiSender® product.
This could be your Satellite or Cable receiver, VCR, DVD etc. When installed correctly, this device will enable you to control your equip-
ment from your bedroom or other remote location.
Because everyone has their equipment set up differently, the Magic Eye comes included with a number of accessories. These enable the IR
Systeme Technik™ to be installed in many different ways. Please choose the most appropriate installation for your equipment setup.
IMPORTANT: THE MAGIC EYE CABLE MUST BE CONNECTED TO THE 'IR' SOCKET ON YOUR DIGISENDER® TRANSMITTER.
Please refer to your DigiSender® manual for further information.

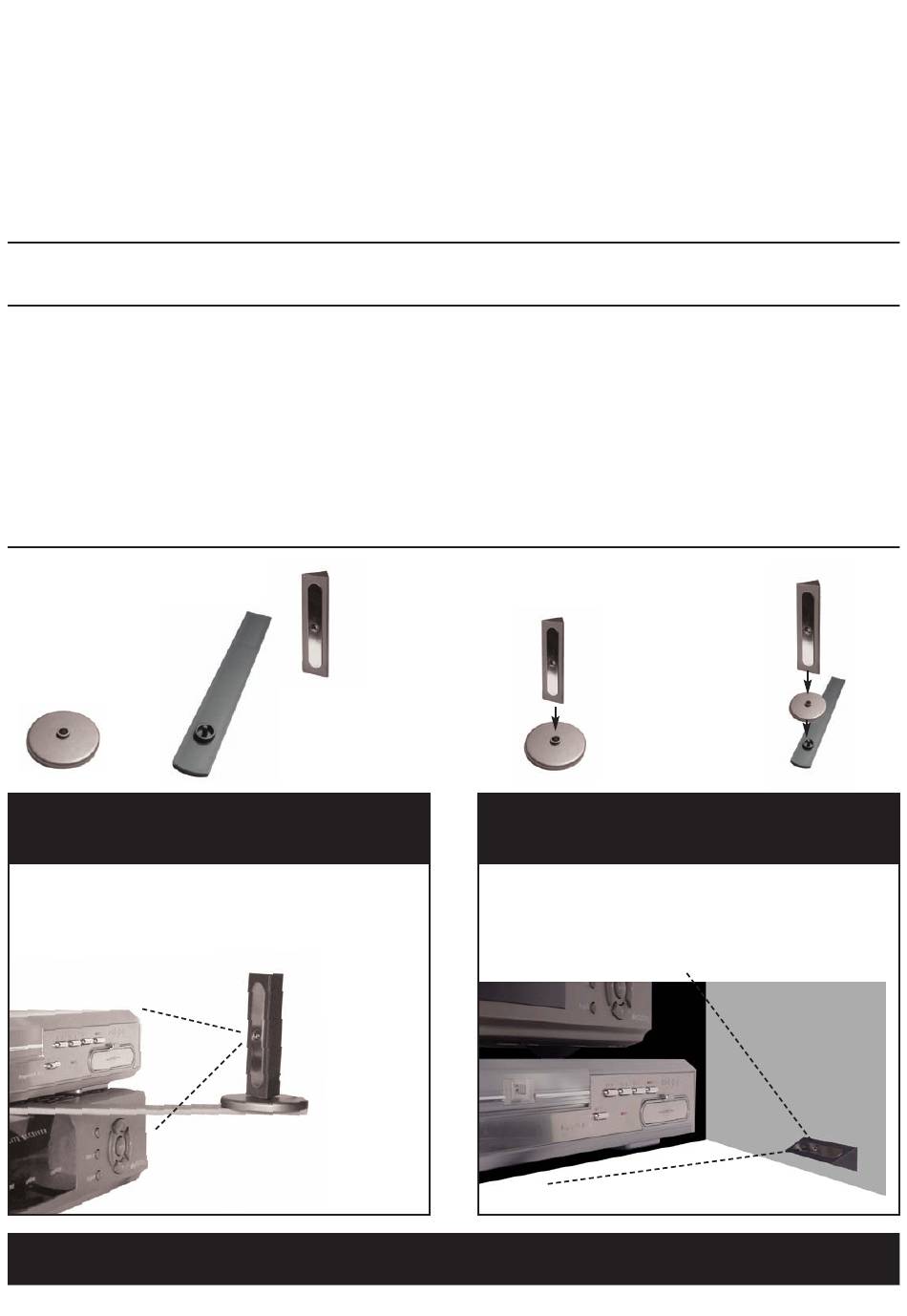

IR Systeme Technik™
Magic Eye System &
Accessories
Accessory #2
Round base
EXAMPLE #1
Stacked equipment under TV stand
The Magic Eye can be affixed to the underside of the TV stand using the
supplied sticky foam pad.
Please ensure that the glass eye faces the equipment you wish to control, for
example, your Satellite or Cable receiver.
Vertically mount the eye using the accessory
ensuring the infra red LED faces the infra red
sensor on your equipment.
MORE EXAMPLES OVERLEAF...
IMPORTANT
IR Systeme Technik™
INSTALLATION GUIDE
Magic Eye
Infra red emitter
Accessory #1
Extension base
#
Using the accessories
EXAMPLE #2
Equipment stacked in a glass cabinet
The Magic Eye can be affixed directly to the inside of the glass door. When
closed the eye will be facing the source equipment.
Please ensure that the glass eye faces the equipment you wish to control, for
example, your Satellite or Cable receiver.
1
Vertical
Mounting #1
Vertical
Mounting #2
150807-1
Affix to inside of
cabinet door using
the supplied sticky
foam pad.
Advertisement
Table of Contents
Summary of Contents for AEI Security & Communications DigiSender IR Systeme Technik DG4MEIR
- Page 1 150807-1 IMPORTANT IR Systeme Technik™ INSTALLATION GUIDE PLEASE REFER TO THIS INSTRUCTION SHEET PRIOR TO INSTALLATION The IR Systeme Technik™ is designed to emit remote control signals effectively at the source devices connected to your DigiSender® product. This could be your Satellite or Cable receiver, VCR, DVD etc. When installed correctly, this device will enable you to control your equip- ment from your bedroom or other remote location.
- Page 2 EXAMPLE #3 EXAMPLE #4 Single item on a shelf Multiple items on a shelf Use accessory #1 with the Magic Eye in a horizontal position so IR signals are Use accessory 1 to place the Magic Eye at a short distance from the front of spread across both devices you intend controlling.
