Lighting Automation
Model: 2NL
Product Guidance
Page 1 of 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2NL and is the answer not in the manual?

Questions and answers

Summary of Contents for Smart Node 2NL

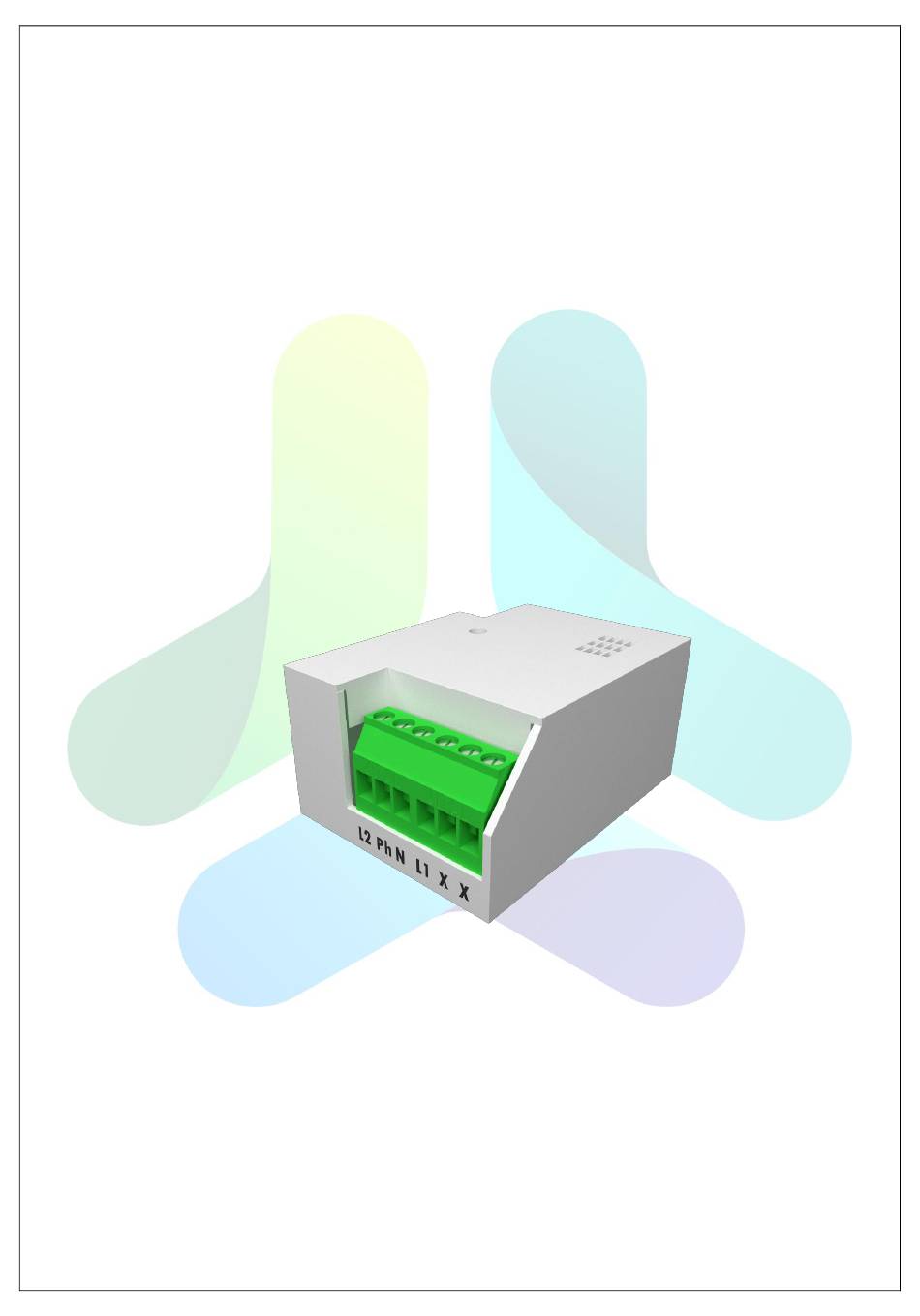

  • Page 1 Lighting Automation Model: 2NL Product Guidance Page 1 of 19...

  • Page 2: Table Of Contents

    Table of Contents Table of contents ………………………………………….……………..………… 2 1.About Lighting Automation…………………………….……………..…………. 3 2.Smart node Lighting Module 2NL …………………….………………….……. 4 2.1 Mode of Operations…………………………….………………..……… 4 3. Basic Hardware explanations…………………………………………..….…. 7 4. Installation Guide…………………………………………………………..… 10 4.1 Hardware Installation………………………………………………..10 4.2 Wi-Fi Configuration………………………………………………….…. 13 5.

  • Page 3: About Lighting Automation

    (such as Alexa, Google Home), mood-based scene settings, appliance scheduling and Geo-location based control. Smart Node has 6 different modules in Lighting segment: 8.1, 8.0, 4.1, 4.0, 2NL and 2HL. Page 3 of 19...

  • Page 4: Smart Node Lighting Module 2Nl

    Here, in 2NL model: 2 indicates a total of 2 load support NL indicates both load are normal load Note: Fan/dimmable light can be connected to 2NL but it cannot be regulated (speed/light intensity)using Smart Node application 2.1 Mode of operations The loads connected to LA-2NL module can be operated by four different means at a time.
  • Page 5 2) Smart Node application All the loads connected to LA-2NL can be operated using Smart Node application in Android as well as iOS phones. The application is available free of cost in the App Store as well as the Play Store. The loads can be operated from anywhere in the world provided internet is available on both sides.
  • Page 6 A user gets instantly notified if there is any change in the appliance's state or when a schedule gets executed. 3) Voice control device All the loads connected to LA-2NL can be voice-controlled using voice enabling device like Amazon Alexa and Google Home. The loads can be turned on/off using our voice.

  • Page 7: Basic Hardware Explanations

    3. Basic Hardware explanation This section covers explanation about different types of load in 2NL. The front view of 2NL is shown below: Here Ph indicates Phase (Live wire) input, N indicates Neutral input and HP indicates Heavy Phase input. The loads connected to the different output terminal are described in detail below: ➢...
  • Page 8 • terminal, we can only turn on/off that light. We cannot dim the intensity of the light through the Smart Node. If a physical dimmer is connected in series between L and the light load wire, then using the physical regular dimming is possible. A single light should not exceed 750 watts.
  • Page 9 General Technical Specifications Some general technical specifications of module are given below Input 100~240V 50/60Hz Communication Wi-Fi 2.4GHz 802.11b/g/n Wi-Fi signal strength -70 dBm (min) Internet speed 512Kbps (min) Data Consumption <3MB/Month (100 operations/day) Power Consumption 0.6W idle and <3W (On Full Load) –...

  • Page 10: Installation Guide

    4. Installation Guide Smart Node Lighting Automation module 2NL installation can be divided into two parts: first is the hardware connection with the actual loads and second is the configuration of the device with the Wi-Fi. We will go into deep into each section below 4.1 Hardware Installation...
  • Page 11 The next wiring diagram gives a basic explanation when a 2NL device is connected behind a switchboard with 2 switches. nstallation Steps 1. Please turn off the power by switching off the MCB for safety purpose. Then remove the front panel of the respective switchboard and open the...
  • Page 12 3. We need to connect the wire of each load (which were removed from the switches) to each node of the Smart Node module as per the load type. The detailed information about the load is explained above.

  • Page 13: Wi-Fi Configuration

    9. Now, insert the Switch Board back to its position and then, insert back all the screws and the outer plate. 10. Turn on the power by switching on the MCB. 11. Now, all the loads would be operable using physical switches. To operate the loads using 4.2 Wi-Fi Configuration After successful wiring of the loads with the device, we now need to connect...
  • Page 14 4. If the web page does not appear, then open any webpage and enter 192.168.4.1 5. If you click on the “Reset” button, then the device will be back in the ‘factory default’ mode and the pin of the device will set to default. All previously added device to any mobile will not work.
  • Page 15 If the password inserted is incorrect then the Wi-Fi “SN- XXXXXXXXXXXXX” will not get disappear and repeat the same process. 9. Install and open Smart Node application, go to ‘Settings’ -> ‘Add New Device’. Click on ‘Add Device’ button. After 2 seconds, a list of devices in local will appear and the newly configured device would be there in the list with the name of its serial number.

  • Page 16: Installation - Special Case

    Some examples are: 5.1 Invertor Connection If you wish to connect the loads connected with 2NL to work with invertor, then it is mandatory to insert the Invertor phase wire to Ph terminal (P1). By default, the load connected to L2 will be connected with the Invertor.
  • Page 17 Now, if we install 2NL with traditional switches and wish to make a two- way connection, then we need to insert an extra wire between the two switchboards. The common black wire from the connector provided should be connected as shown below. If no extra wire exists between the two switch boards, then it is not possible to make a two-way connection.

  • Page 18: Declaration

    Private Limited. All rights reserved. Without prior approval of Smart Node Automation, reproduction, transfer, distribution or storage of contents in this document in any form is prohibited. Smart Node Automation operates a policy of ongoing development. Thus, Smart Node Automation reserves the right to make changes or improvements to the products described in this document without prior notice.

  • Page 19: Guarantee And Warranty Period

    7. GUARANTEE and WARRANTY period Smart Node offers one year of free replacement and another two years of free repairable warranty from the date of billing of the end client. Smart Node will not be liable in any way towards damage caused to products by following: a) The guarantee or warranty period is expired.
