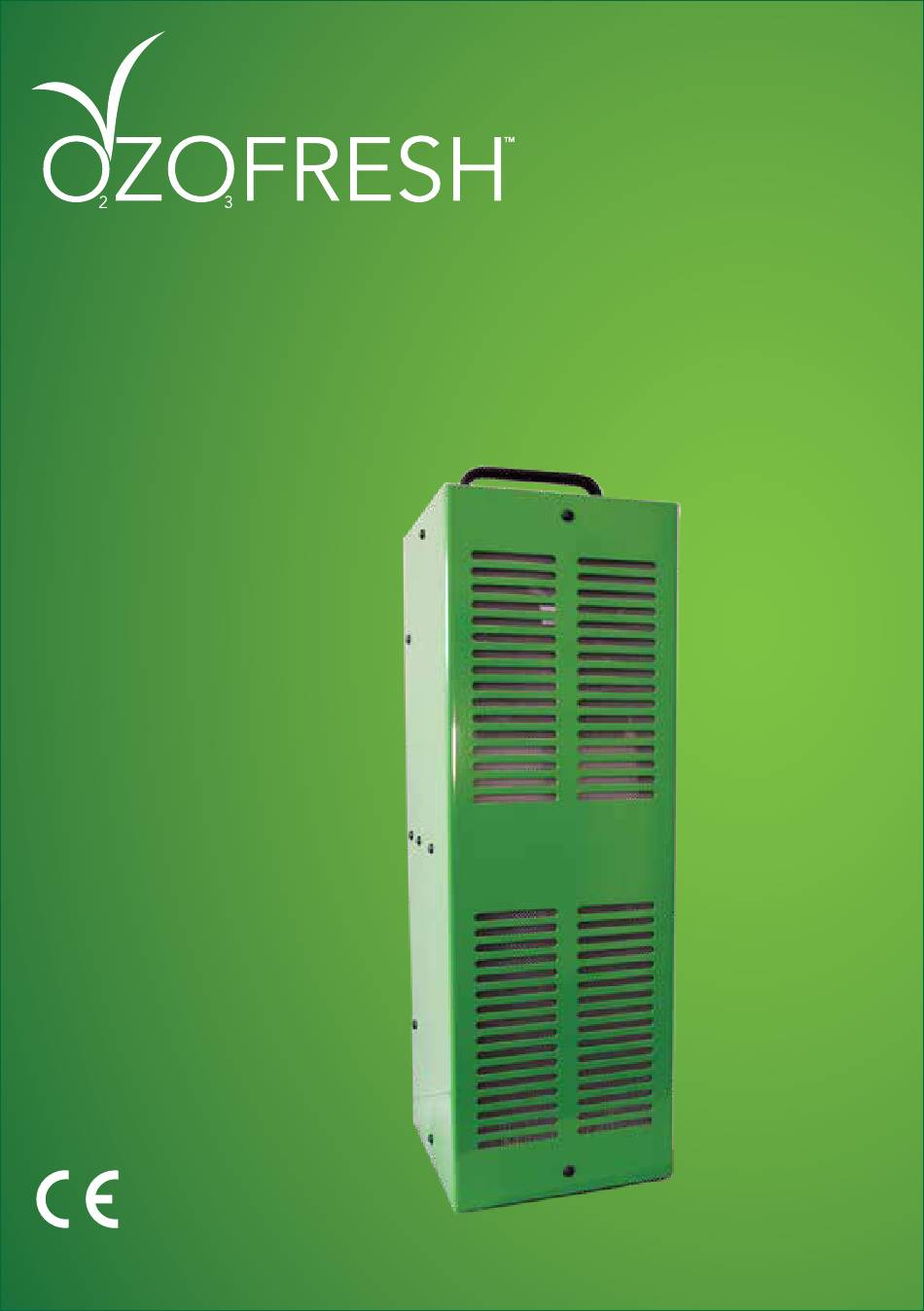

- Page 1 FRESH AIR ON DEMAND. ECLIPSE EN Instruction Manual Ozofresh_EclipsePro_V1...
- Page 2 Your Eclipse Pro ensures that problematic odours are destroyed and not masked, which ultimately is all that scented air fresheners will do. An added benefit of the Eclipse Pro is that it does not use harmful chemicals and the ozone produced will freshen those difficult to reach areas within a facility.
- Page 3 ECLIPSE PRO SAFETY GUIDANCE DECLARATION OF CONFORMITY Model No. Eclipse Pro. This unit fully complies with CE rules of EMC regulations: EN 61000-61, EN 61000-63, EN 61000-32, EN 61000-33. The Eclipse Pro is for indoor use only and the instructions of use and warnings are supplied within the instruction manual/ on the machine itself.
-
Page 4: Unpacking Your
If any of the above items are missing, then please contact your supplier immediately. We recommend that you store your Eclipse Pro in the box that it comes in when not in use to preserve the life of the machine and to prevent accidental damage. - Page 5 2. DO NOT expose your Eclipse Pro to rain or moisture. Should any water or other liquid come into contact with the machine, unplug it immediately and have it checked/serviced by qualified personnel prior to further use.
- Page 6 8. Ensure that your Eclipse Pro is unplugged from the power source when not in use and store the machine in a dry, clean & lockable environment to prevent damage/mis-use.
- Page 7 Any maintenance operations should only be undertaken when the machine is disconnected fully from the power source. PLEASE NOTE There are no parts inside your Eclipse Pro that are serviceable by the user. Removing parts, unless qualified to do so, will void the warranty of your machine.
- Page 8 ECLIPSE PRO SPECIFICATIONS TECHNICAL SPECIFICATIONS Ozone output: 10000mg/hr Dimensions: 460 x 157 x 157mm Weight: 7kg approx. Mains supply: 230V/50Hz/140W via mains switch, with fuse and detachable IEC mains cable Fan Airflow (Ozone): 305m3/hr Fan Airflow (Destruct): 305m3/hr Coverage: 200m3 Specification and colour of the product may change without prior notice unless previously agreed.
- Page 9 HOW TO OPERATE YOUR ECLIPSE PRO OPERATING INSTRUCTIONS Your Eclipse Pro has been designed to enable simple and trouble free operation. The main control features are on the top panel of the machine, via the numbered buttons. How to set a cycle 1.
- Page 10 How to change the cycle If you need to change the time cycle of the Eclipse Pro simply press the button for the correct time. Please note: if you have already left the room and started the machine, we recommend that you do not return until the initial cycle is finished.
- Page 11 ‘hissing’ noise it makes when producing O3 Operating times Choosing an operating time for your Eclipse Pro is very much dependent on the size of the room to be treated, degree of odour within the room, level of soft furnishings and ventilation within the room.
- Page 12 HOW TO LOOK AFTER YOUR ECLIPSE PRO MAINTENANCE & SERVICING To maintain the warranty and expected life-time of your Eclipse Pro, we recommend a preventative maintenance inspection annually. This will also ensure trouble free operation of the machine. We offer a ‘back to base’ service option whereby you simply courier the machine back to our premises and we will service and clean the unit before sending back to you.
- Page 13 TROUBLESHOOTING ECLIPSE PRO BUTTON FUNCTION TESTING You can test the functionality of your Eclipse Pro to ensure you are getting the best from the machine. Below is a list of functionality tests: - Complete cycle time selection in minutes. Destruct Only / Test Destruct Fan (bottom).
- Page 14 NOTES NOTES...
- Page 15 NOTES NOTES...
- Page 16 FRESH AIR ON DEMAND. Watchman Ozone T/A Ozofresh Ozofresh, 50 iCon Centre, Eastern Way, Daventry, Northants, NN11 0QB Telephone number: +44 (0)844 248 0107 Sales: +44 (0)7903 742 373 Email: support@ozofresh.co.uk Website: www.ozofresh.co.uk Follow us for all the latest updates and exclusive offers:...
