Summary of Contents for Phase 3 Powersafe

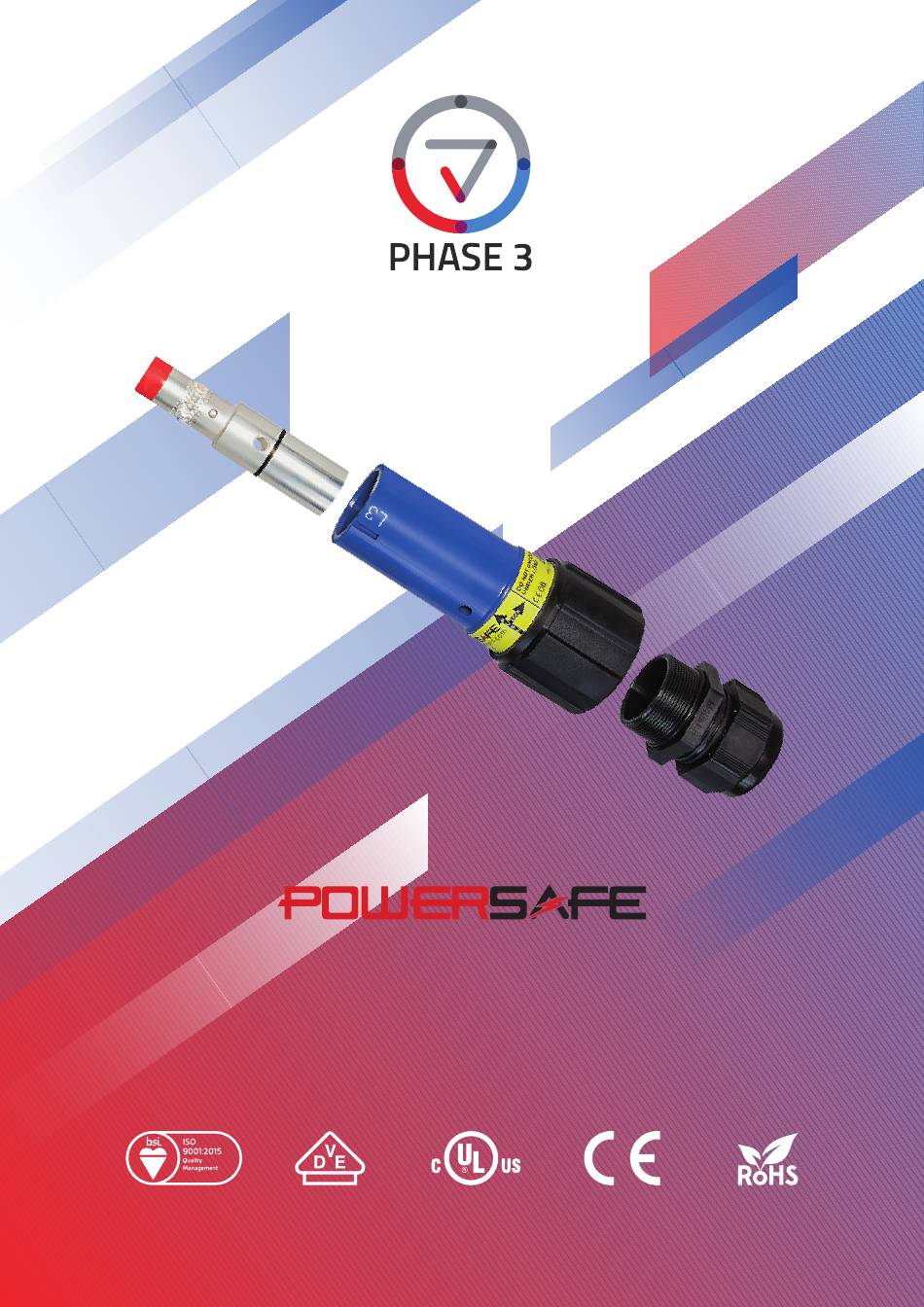

- Page 1 CONNECTORS USA POWER CONNECTOR ASSEMBLY GUIDE usa.p3connectors.com...
- Page 2 If in doubt please contact Phase 3 Connectors USA. 2. Termination Methods There are three methods on how to terminate cables on the Powersafe contacts: Set Screw termination (page 2), Threaded Post termination (page 3) and Crimp termination (page 4).
- Page 3 For a #2 (35mm2) cable, the R120, R95, R70, R50 and R35 sleeves should all be used in sequence. All the sleeves fit perfectly inside each other to create a gradual reduction span. The flared end of the sleeves should be against the cable insulation. Phase 3 Connectors USA Tel: 833-738-7285 usa.p3connectors.com...
- Page 4 Periodic checks should be made to ensure security of dowel pins. 9. Now screw the cable gland onto the insulator and tighten the body and dome nut to 97 in/lbs Your connector should now be complete and ready for an overall inspection. Phase 3 Connectors USA Tel: 833-738-7285 usa.p3connectors.com...
- Page 5 2. Strip the cable jacket to leave 1.75" (43mm) of conductor exposed. 3. Slide the conductor into the rear of the contact. Take care to ensure all the wire strands are inside the contact. Continues on Page 7. Phase 3 Connectors USA Tel: 833-738-7285 usa.p3connectors.com...
- Page 6 Phase 3 Connectors USA Tel: 833-738-7285 usa.p3connectors.com...
- Page 7 Phase 3 Connectors USA Tel: 833-738-7285 usa.p3connectors.com...
- Page 8 Following these steps above will ensure the long term safety and continued performance of your connectors. ** Replacement parts for service are readily available from the factory Phase 3 Connectors USA Tel: 833-738-7285 usa.p3connectors.com...
-
Page 9: Did You Know
This product should be installed, Inspected and maintained by qualified electricians only, in accordance with local and national electrical codes. DID YOU KNOW Phase 3 manufactures Sequential Mating Boxes for power distribution in the Powersafe range. Ask your sales rep CONNECTORS USA Phase 3 USA...
