STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8

STREET WASHING EQUIPMENT

KPL 270-200-1250x8

OPERATION INSTRUCTIONS

E-mail: info @dynaset.com

DYNASET OY, Menotie 3,

Tel.: +358 3 3488200

Fax: +358 3 3488222

FIN-33470 Ylöjärvi, FINLAND

MAY CHANGE WITHOUT PRIOR NOTICE

Table of Contents

Need help?

Do you have a question about the KPL 270-200-1250x8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynaset KPL 270-200-1250x8

Page 1 STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 STREET WASHING EQUIPMENT KPL 270-200-1250x8 OPERATION INSTRUCTIONS E-mail: info @dynaset.com DYNASET OY, Menotie 3, Tel.: +358 3 3488200 Fax: +358 3 3488222 FIN-33470 Ylöjärvi, FINLAND MAY CHANGE WITHOUT PRIOR NOTICE MAY CHANGE WITHOUT PRIOR NOTICE...
Page 2: Table Of Contents
2/26 May 2012 STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 TABLE OF CONTENTS 1. SAFETY PRECAUTIONS AND WARNING STICKERS 2. PRODUC DESCRIPTION 3. INSTALLATION 4. HYDRAULIC CONNECTIONS 5. KPL PART LIST 6. HIGH PRESSURE PUMP (HPW) GENERAL 7. HPW INSTALLATION 8.
Page 3: Safety Precautions And Warning Stickers
Dynaset dispatch department includes one (1) warning sticker bag per one (1) main product. Product recipient is obligated to fix determinate warning sticker to Dynaset product. Fix sticker to visible and appropriate place or close to Dynaset product where it’s easily seen. Before fixing sticker clean surface with solvent detergent.
Page 4: Produc Description

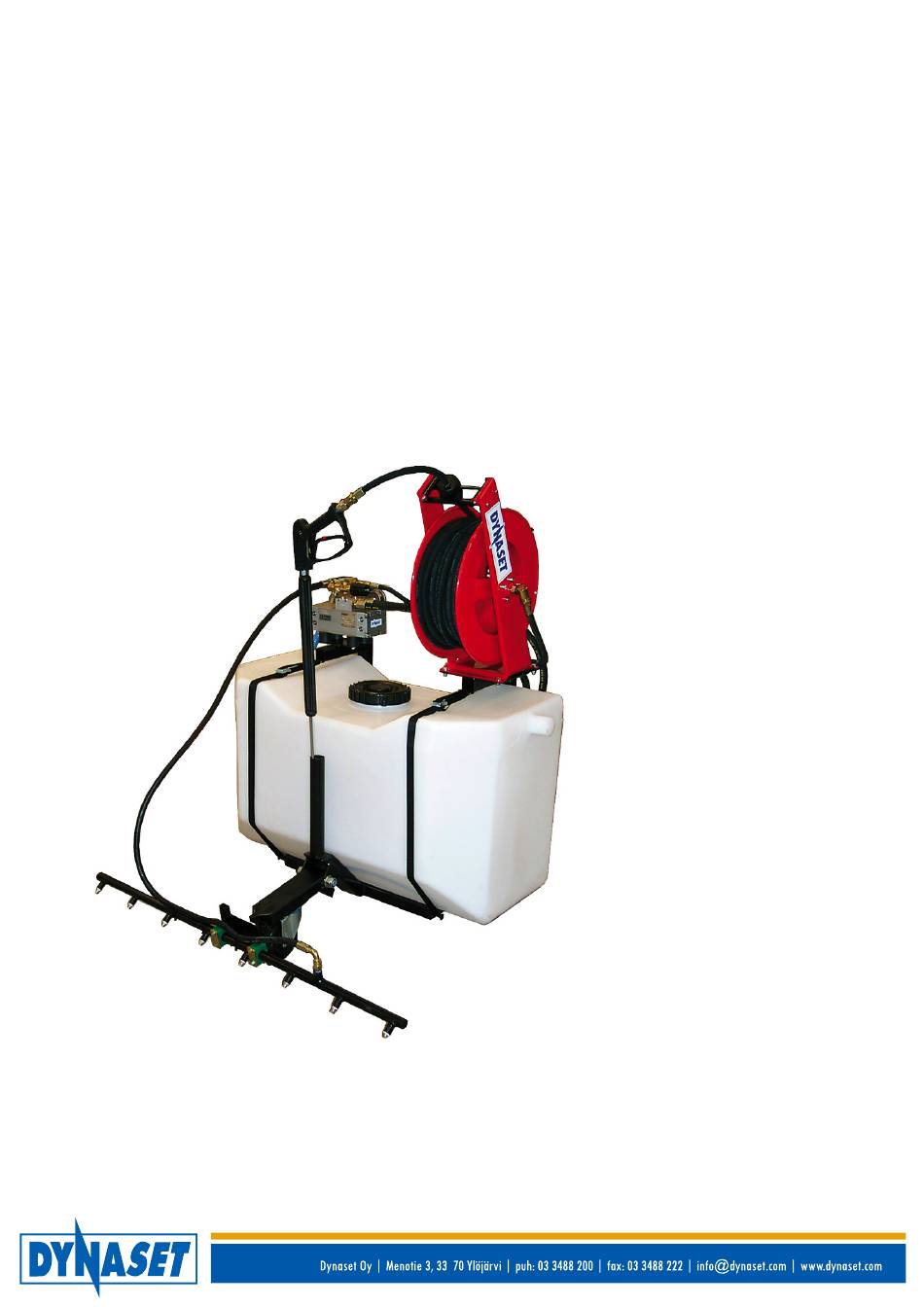

STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 PRODUCT DESCRIPTION DYNASET KPL 270 - 200 - 1250x8 STREET WASHING EQUIPMENT is especially designed for attached to working machines like mini tractors. KPL street washing unit is ultimately light-weight. KPL high pressure street washer cleans effectively dust, sand and other impurities from street or other fairways.
Page 5: Hydraulic Connections
1.10 HYDRAULIC CONNECTIONS P = PRESSURE LINE 1/2” T = TANK LINE 1/2” E-mail: info @dynaset.com DYNASET OY, Menotie 3, Tel.: +358 3 3488200 Fax: +358 3 3488222 FIN-33470 Ylöjärvi, FINLAND MAY CHANGE WITHOUT PRIOR NOTICE MAY CHANGE WITHOUT PRIOR NOTICE...
Page 6: Kpl Part List
PIPE BRACKET, 25 STANDARD SERIE 3 2.11 1703235000 COUPLER BODY R3/4, 19, Ms E-mail: info @dynaset.com DYNASET OY, Menotie 3, Tel.: +358 3 3488200 Fax: +358 3 3488222 FIN-33470 Ylöjärvi, FINLAND MAY CHANGE WITHOUT PRIOR NOTICE MAY CHANGE WITHOUT PRIOR NOTICE...
Page 7: High Pressure Pump (Hpw) General
STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 HIGH PRESSURE PUMP (HPW) GENERAL DYNASET HPW-pump is a converter, which transforms actuating fluid power, usually hydraulic oil, into pumping fluid’s power, which is defined by flow rate and pressure. Actuating power is supplied from hydraulic system of carrier machine or other installation.
Page 8: Hpw Integration Into A Hydraulic Circuit
3-way valve. HYDRAULIC SYSTEM WITH VARIABLE DISPLACEMENT PUMP: In system with OPEN CENTRE the required oil flow is set by DYNASET PRESSURE COMPENSATED PRIORITY VALVE In system with CLOSED CENTRE (load sensing system) the required oil flow is set by DYNASET LS-VALVE kit, which comprises solenoid valve, pressure compensated oil flow limiter and pressure relief valve.
Page 9: Hydraulic System With Variable Displacement Pump
May 2012 9/26 STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 ... INSTALLATION IN SYSTEM WITH VARIABLE DISPLACEMENT HYDRAULIC PUMP HIGH PRESSURE TOOL LOAD SENSING WATER PRESSURISED SUPPLY: PRESSURE CONTROL MIN. 1,5 BAR MAX 10 BAR INTAKE LINE: SUCTION HEAD MAX. 3 M WATER RESERVOIR HPW HYDRAULIC PORTS: HPW’...
Page 10: Operation
May 2012 10/26 STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 OPERATION Prior to starting-up the HPW-pump it is checked whether all couplings in hydraulic and pumping fluid circuits are properly connected and there are no leakages over the equipment. Ensure that the water tank is refilled and intake line’s strainer/filter is clean.
Page 11: Basic Applications Of Hpw-Pump
Various high pressure washing and cleaning jobs, such as spray gun washing, pipe and sewer cleaning and street washing, are typical applications of DYNASET HPW-pumps. As special applications, high pressure dust suppression, hydro-demolition and high pressure fire-fighting systems are worth to mention. Compact size and reasonable power demand enable to fit HPW-pump practically to any project, where high pressure water or other fluid is being used.
Page 12: Street Washing Unit
May 2012 12/26 STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 STREET WASHING UNIT 50 - 150 mm STREET WASHING UNITS 10 - 50 mm When adjusting on-position, the street washing pipe should be brought down horizontally as close as possible to the roadway.
Page 13: Maintenance
May 2012 13/26 STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 MAINTENANCE KPL: Clean suction strainer from impurities at least once a year or if needed. Access to suction strainer happens via tank cap. Remove nozzle if clogged, clean the strainer and nozzle from dirty with clean water. Change new Teflon tape onto the threads and fasten nozzle.
Page 14: Hpw Outline Dimentions
14/26 May 2012 STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 HPW OUTLINE DIMENSIONS HIGH PRESSURE PUMP HPW 200/30-45-ST 4 pcs 4 pcs FLUID CONNECTIONS HYDRAULIC PORTS PUMPING FLUID PORTS pressure return pressure intake BSP 1/2” BSP 1/2” BSP 3/8” BSP 3/4”...
Page 15: Hpw Technical Characteristics
15/26 May 2012 STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 HPW TECHNICAL CHARACTERISTICS PARAMETERS HPW 200/30-45 WATER POWER WATER FLOW l/min WATER PRESSURE WATER TEMPERATURE ºC 70 ºC PUMPING POWER SUCTION HEAD WATER FEED PRESSURE min-max -0,3 ...10 PRESSURE RATIO water/hydraulic 1,18...
Page 16: Hpw Main Assembly
16/26 May 2012 STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 HPW MAIN ASSEMBLY HIGH PRESSURE PUMP HPW 200/30-45-ST Note ! The pressure valve’s spring is shorter and of considerably bigger deflection rate than the suction valve’s one. Do not mix up the valves 1.6.2 when re-assembling the pump ! 1.6.1...
Page 17: Hpw Part List
17/26 May 2012 STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 HPW PART / COMPONENT LIST STOCK DESIGNATION DETAILS QUANTITY NUMBER HPW200/30-45 D200101260 HPW-PUMP, ASSEMBLY HPW200/30-45 0400001737 CENTRE BODY, ASSEMBLY 1.1.1 0400000221 BLOCK 63 HPW 200 1.1.2 1702705000 HF-PLUG R 3/8”...
Page 18 18/26 May 2012 STREET WASHING EQUIPMENT KPL 270 - 200 - 1250x8 HPW PART / COMPONENT LIST UNLOADER VALVE ASSEMBLY Code V100102800 6306376000 UNLOADER VALVE DST-261 1702745000 PLUG, SOCKET HEAD RK1/4” 1701980000 ELBOW FITTING 12L RK 3/8” 1702105000 SWIVEL ELBOW FITTING 0400001386 ELBOW FITTING RK 3/8 P12...
Page 19: Hydraulic Fluids
Automatic transmission fluids and even engine oils can be used, provided that they are allowed to be used in hydraulic system of your carrier machine. Prior to use special hydraulic fluids a with DYNASET equipment, please be kindly requested to contact nearest DYNASET representative for an advice.
Page 20: Trouble Shooting
20/26 May 2012 High pressure pump HPW 200/30-45-ST HPW TROUBLESHOOTING HPW-PUMP DOES NOT PRODUCE WATER FLOW 1.1.1 1.1.1 HPW-PUMP DOES NOT Too small hydraulic flow or Enable or adjust the hydraulic flow. WORK no hydraulic flow at all. 1.1.2 1.1.2 Hydraulic pressure too low.
Page 21 21/26 May 2012 High pressure pump HPW 200/30-45-ST HPW TROUBLESHOOTING WATER FLOW RATE Insufficient hydraulic flow or Adjust the hydraulic flow to the demanded TOO SMALL pressure. level at required pressure. Nozzle of your pressure tool Verify the nozzle sizing and replace with undersized.
Page 22 22/26 May 2012 High pressure pump HPW 200/30-45-ST HPW TROUBLESHOOTING CLOSING THE WATER Insufficient hydraulic Adjust the hydraulic pressure up as much as PRESSURE LINE DOES pressure in relation to necessary to enable proper operation of NOT DROP PRESSURE pumping fluid pressure, water pressure unloader valve.
Page 23: Manufacturer's Limited Warranty
Exclusions shipped, at the purchaser’s cost, adequately from warranty are explained in item 8. packed for shipment, to the DYNASET OY or to other location authored by DYNASET OY. Shipment documents must contain: Beginning of warranty period Purchaser’s name and contact information...
Page 24: Declaration Of Conformity
If device has changed by someone other than at the hands of manufacturer or his permission, this declaration is not valid. PRODUCT: STREET WASHING EQUIPMENT TYPE NUMBER: KPL 270 - 200 - 1250x8 YLÖJÄRVI 11.05.2012 DYNASET Oy Timo Nieminen R&D Manager MAY CHANGE WITHOUT PRIOR NOTICE...
