AudioShare ASW101 User Manual

Wall station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

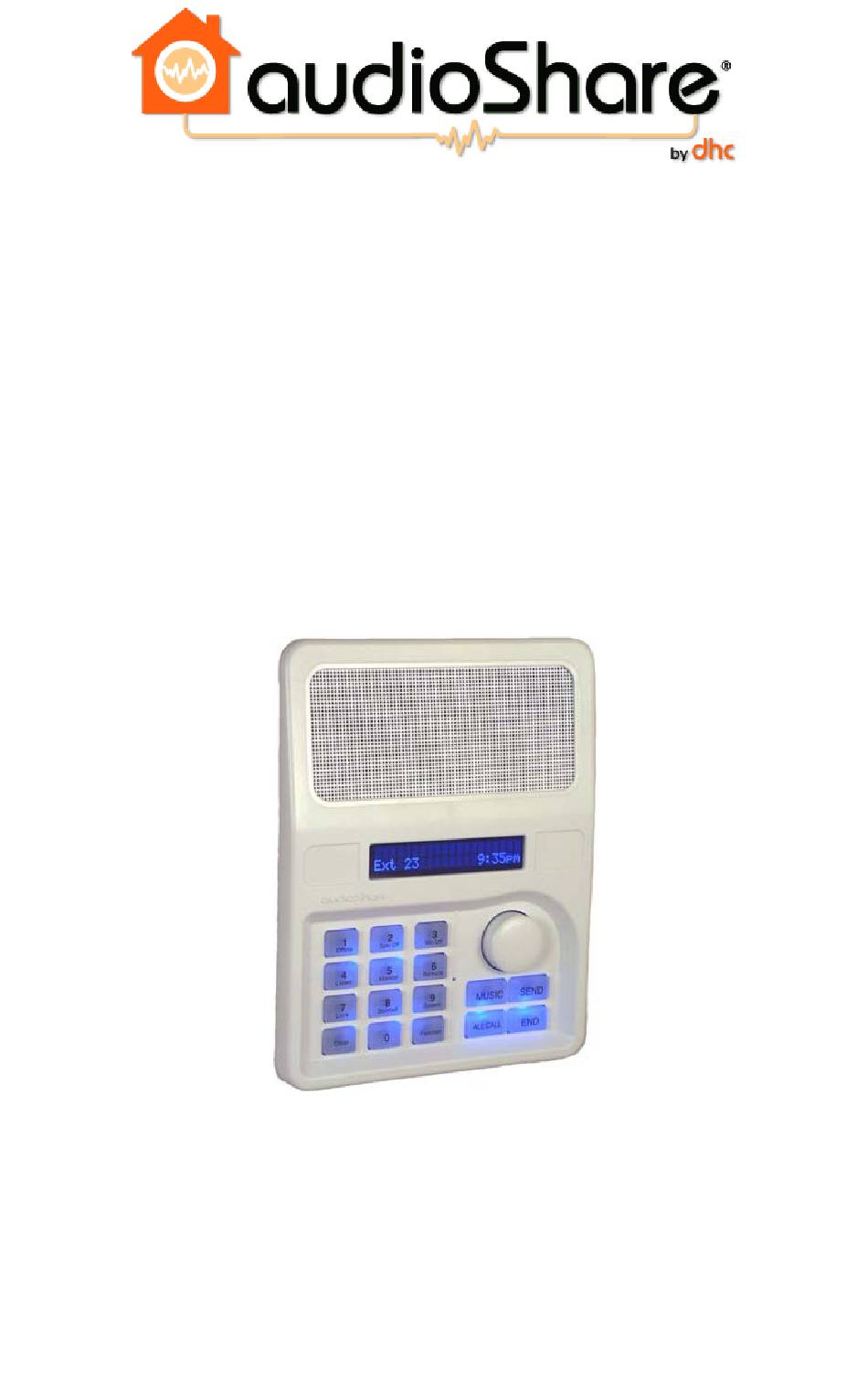

The First all digital
Voice
and
Music
system
USER GUIDE
v02r31-090401
ASW101 Wall Station
© 2009 Digital Home Communications, LLC. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASW101 and is the answer not in the manual?

Questions and answers

Summary of Contents for AudioShare ASW101

  • Page 1 The First all digital Voice Music system USER GUIDE v02r31-090401 ASW101 Wall Station © 2009 Digital Home Communications, LLC. All Rights Reserved.
  • Page 2 ® units have been designed to shunt electrostatic discharge away from these sensitive circuits. In order for this protection to be fully effective, the audioShare ® system power supply must be connected directly to an electrical/earth ground. Failure to properly ground the system will void the warranty.
  • Page 3 VDC, which is present on all system wiring and at each device connected to the system. Disconnect system power supply before ® installing, interconnecting, replacing or removing any audioShare equipment. It is possible for 50 VDC to still be present on ®...

  • Page 4: Table Of Contents

    Table of Contents QUICK-START REFERENCE GUIDE ..........7 General Operating Rule............... 7 INTRODUCTION................11 What’s a Media Bus? ..............11 ® USING audioShare ............... 12 Include and Join Features............13 Voice Communication ............... 14 Listening Features ..............16 Privacy Features ................ 17 Music...................
  • Page 5 Setting addresses initially ............. 25 Door Station Operation ............. 26 Door Chime Sounds ..............26 NEW FUNCTIONALITY ..............28 ® audioShare ACCESSORIES ............29 SPECIFICATIONS ................31 WARRANTY ................... 33 DHC Limited Warranty ............33 How to Obtain Warranty Service........... 33 Customer Feedback ...............
  • Page 6 Q&A ..................36 Error Messages................37 Gotchas ..................39 APPENDIX B .................. 41 ® Tech tips and cool ways to use audioShare ......41 Listen to Your iPod or Walkman without Earphones ... 41 Copy Music to Your Computer..........41 Listen to Your Music Anywhere in the House .....

  • Page 7: Quick-Start Reference Guide

    QUICK-START REFERENCE GUIDE This section is a short outline to remind users of some of the key operating ® functions. Please refer to USING audioShare beginning on page 12 for a complete description of all operating features. ® Note: On some older audioShare wall stations the ENTER key is labeled SEND.
  • Page 8 station address and press ENTER. Repeat for each additional station to be included (see Include and Join Features on page 13). End conference call: Press END (see general rule above) All Call (One-way paging broadcast from initiating station to all other available stations): Press ALL CALL (it is not necessary to hold the ALL CALL button).
  • Page 9 ENTER, the station you want to monitor and press then enter destination ENTER just press ALL CALL. station address and press End Monitor: Press END Lock (toggle security features lock on/off for this station only): Press Function, then Lock. Enter the passcode and press ENTER.
  • Page 10 Backlight Dim (dim brightness: 0-100% for this station only) Debug mode (toggle: on/off) Change Station # (NOTE: resets passcode to default) System Reset – if one or more stations display strange characters or do not operate as expected: • Function, END.

  • Page 11: Introduction

    INTRODUCTION Your audioShare ® is the first all digital voice and music system. It does for your home communication needs what the Internet did for the personal computer. It uses patent-pending digital technology to create a true point-to-point, all-master audio network, combining features of music distribution systems, intercom systems, and adding many unique features, too.

  • Page 12: Using Audioshare

    ® by making mistakes when pressing buttons. If all else fails, simply press END or CLEAR and start over again. Go ahead and experiment to discover how audioShare ® can work for you. Remember, you can't hurt or break it by pressing buttons (gently). Refer to Appendix A for troubleshooting.

  • Page 13: Include And Join Features

    Include and Join Features One of the many unique features of audioShare ® that sets it apart from other systems is the ability to include other stations in a conversation or music broadcast after the initial connection has be made between other stations. This can be done in either of two ways using the “include”...

  • Page 14: Voice Communication

    • Enter destination address and press ENTER and start talking in hands-free mode, just like a speaker phone. audioShare ® normally operates in hands-free mode, similar a speaker phone. Not every environment is suited to hands-free operation, however. If one or more rooms has background noise such as a TV, radio, cooling fan, noisy children, etc.
  • Page 15 Conference All – conference call between all available stations in hands-free mode. • Press ALL CALL twice within 3 seconds to initiate the conference. End Conference All: • Pressing END from any station involved in the Conference All will end the entire conference.

  • Page 16: Listening Features

    Listening Features Monitor mode can be done two ways. To Monitor a station from all other stations – broadcast from that station to all: • Press ALL CALL from the station to be monitored. To Monitor one station from only one or a select number of other stations: •...

  • Page 17: Privacy Features

    Privacy Features Note: all of the privacy features are “toggle” functions, meaning the same command will enable or disable them. Speaker Off – excludes the station from any All Call communications, except doorbell (see Doorbell Off below). • Press Function, then Spkr Off (An “S” will appear in the upper right hand corner of the screen to remind the user the speaker is disabled during All Call broadcasts.) End Speaker Off –...

  • Page 18: Music

    ® wall station will convert an analog signal to digital and distribute it over the network with undisturbed, high-quality sound. At the other end, you can select either the analog or digital output of the audioShare ® station to input to your chosen listening/recording device.

  • Page 19: Listening To Music

    MUSIC button, enter the source, and then enter the additional destination station address. It is necessary to identify the source each time because your audioShare ® may have more than one music source operating at a time.

  • Page 20: Local Loop-Back Mode

    Note: Refer to the General Operating Rule on page 7. Local Loop-Back Mode Listen to Your iPod or Walkman without Earphones. See Appendix B: Music Interrupt If during a music broadcast between two or more stations, someone wants to make an intercom call to any of the stations involved in that broadcast, the music will be interrupted temporarily while the intercom call is being made.

  • Page 21: Remote

    Remote 1. Press Function, then Remote. 2. When it asks, “Remote address?” enter address of remote station you want to control and press ENTER. 3. When the screen displays “Select Remote Function or Volume” select the desired function or turn volume knob to adjust volume of the remote station.

  • Page 22: System Settings

    System Settings Setting the Clock/Time “ ” Press Function then System then scroll the volume knob to Clock Menu and press ENTER • It asks to 1 change 24/AM-PM or 2 set time • To set time, enter time using 4 digits (e.g., 0845) then answer the AM/PM prompt that follows with a 1 or a 2, then press ENTER.

  • Page 23: Backlight Dim

    • To temporarily override hands free operation while already in a ENTER ENTER conversation, press to talk. Release to listen. Backlight Dim Lighting levels vary from room to room so you may adjust the keypad and LCD screen backlight level to your liking. When any key is pressed or when the volume knob is adjusted, the backlight automatically changes to maximum brightness.

  • Page 24: Select Doorchime

    Select Doorchime See Door Station Operation (page 26) Set Default Music Address You can preset a default music source address to work with the QuickTouch Music function. For example, if you have a music source such as a satellite receiver, CD player, MP3 player, etc. that is running all or most of the time that is connected to a specific wall station you can set that wall station’s address as a default music source.

  • Page 25: Initialization And Power Off

    If you need to change a station address, follow the instructions under Changing Station Number (page 22). audioShare ® Your system includes a backup memory that restores all privacy and security (passcode) functions to their last known configuration prior to a power failure.

  • Page 26: Door Station Operation

    (back) of the door station. The unit must be removed from its mounting box in order to change the switch setting. It is highly recommended that you consult with a qualified audioShare ® installer before attempting to change the switch setting.
  • Page 27 These sounds are selectable from any wall station. Press Function, then System, then scroll to “Select Doorchime”, then press ENTER, then scroll to the desired door station name, then press ENTER. If the selected door station doesn’t exist (is not included in your system), you will receive a message: “No Doorstation Found”.

  • Page 28: New Functionality

    To find out what new functions are available for your audioShare ® please visit www.audioshare.net. Some new functions will be available at no charge and will require only a simple Internet download.

  • Page 29: Audioshare Accessories

    ® ACCESSORIES The following accessories are available to enhance the usability of your audioShare ® system. Power Injector Module (PIM) The Power Injector Module is a less expensive alternative to a Hub. It is intended audioShare ® to provide power to smaller systems (up to 16 stations).
  • Page 30 ® The hub provides a main distribution point for the system and can be placed anywhere in the system in any combination of home run or daisy chain configurations. It provides power to all units in the system and networks all units together.

  • Page 31: Specifications

    RCA, female, S/PDIF (compatible with all surround formats) Digital Output (1) RCA, female, S/PDIF (passes all surround formats) audioShare Network Only (2) RJ45, female (Data, Media Buses & Power Supply) Connections - Door Stations System Network (2) RJ45, female (Data, Media Buses & Power Supply) Doorbell Button (dry contacts, external) 2 wires (stripped &...
  • Page 32 Connections - Hub audioShare Network Only (8) RJ45, female incl. activity LEDs, linkable to additional hubs Ethernet Only (1) RJ45, female, incl. link and activity LEDs Serial Port (1) DB9, female, RS-232 (computer interface) Power Input (1) Coaxial, female, 5.5mm O.D., 2.5mm I.D., center...

  • Page 33: Warranty

    WARNING: It is common practice to acid wash exterior brick or stone walls or to power wash homes with siding or stucco exteriors. Doing this with an audioShare ® door station installed will damage the unit. Resulting damage is not covered under the warranty. Always be sure to remove the unit and protect the Cat 5 wires and the RJ45 connectors before performing these washes.
  • Page 34 ® about your system for a long time, even after the warranty expires. If you don’t contact us about problems, we can’t address or correct them. Please...

  • Page 35: Troubleshooting And Q&A

    APPENDIX A Troubleshooting and Q&A Hands Free Operation Like any speakerphone, hands free operation works best in a quiet environment with minimal background noise. Home appliances such as vacuum cleaners, air conditioners, TVs, radios, stereos, etc. running in the background can disrupt (fake-out) the hands free operation.

  • Page 36: Feedback Protection

    As with any audio system involving microphones and loudspeakers, it is possible to create a feedback situation. This can be destructive to the equipment if allowed ® audioShare to continue for too long. is automatically protected against both feedback and excessively loud operation. If excessively loud operation persists additional protection is provided by tripping the internal circuit breaker.

  • Page 37: Error Messages

    The “ ” will be removed from the display indicating that the microphone is now turned on. Why does my music sound distorted when playing through the audioShare ® system? ® audioShare expects a standard line level input signal. The output of some audio devices, especially the earphone output, can be higher than line level.
  • Page 38 Digital Audio Error or CODEC Error – the station receiving audio (music or voice) can’t interpret the S/PDIF data stream due to bad wiring, defective hub, or (most likely) no digital audio input signal present at the transmitting station when in digital audio mode.

  • Page 39: Gotchas

    ® audioShare misunderstandings about how the system works. This is true of the system as well. It is possible to create situations that conflict with each other resulting in some unexpected error code or strange operation.
  • Page 40 ENTER room to be monitored), then , then (the second listening station), then ENTER. Now, stations 3 and 4 will be listening to station 1, and station 2 is free again to do something else. If station 2 is one of the stations to be included in the monitor broadcast, along with stations 3 and 4, the following procedure is used.

  • Page 41: Tech Tips And Cool Ways To Use Audioshare

    APPENDIX B Tech tips and cool ways to use audioShare ® Listen to Your iPod or Walkman without Earphones Did you know you could listen to your iPod or any other portable music device in your room without headphones? Just connect an adapter cable...

  • Page 42: Multiple Music Sources In One Room

    For the Tech-Heads The following information is for the technically minded (Nerds - you know ® who you are) who want to utilize all of the cool features of audioShare ® Each audioShare wall station has RCA jacks on the back that provided analog and digital inputs and outputs for whatever audio device you want to connect and distribute throughout the house.
  • Page 43 PCM, Dolby Digital, DTS , AC-3 or any other surround sound protocol that is presented to it. If the signal is a simple stereo audio signal (PCM), the CODEC will be flagged and will convert it to analog and send it to the local station speaker and analog output jacks.
  • Page 44 Couple this with the local loop-back feature that doesn’t tie up any media buses and the flexibility is without equal. ® The audioShare system design opens up lots of possibilities for those who understand how it works. The items listed above should give you the clues...

  • Page 45: Door Station Address Locations

    APPENDIX C Door Station Address Locations Address Pre-Assigned Location Front Door Back Door Patio Door Garage Door Basement Door (security) Gate Door 7 Door 8 Door Chime Sounds Tri-Tone Chime Door Knock (big door with echo) “Going Home” (vibraphone) “Hey, somebody’s at the door!” (male voice) “Simple Gifts”...

  • Page 46: Station Directory

    APPENDIX D Station Directory Room Station Number _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________ _______________________________________ ________________...
  • Page 47 INDEX Destination Address, 19 Digital, 18 Digital Audio Error, 38 ACCESSORIES, 29 Door Chime Sounds, 26, 45 All Call, 8 Door Station, 30 ALL CALL, 14 Door Station Address Locations, Analog, 18 APPENDIX A, 35 Door Station Operation, 26 APPENDIX B, 41 Doorbell, 9, 20 APPENDIX C, 45 Doorbell Off, 17...
  • Page 48 Invalid Address, 38 Power Injector Module (PIM), 29 Invalid Station Number, 38 Power Off, 25 In-Wall Amplifier/Speakers, 29 Power Reset, 35 Power Supply, 30 Power/Ethernet Module (PEM), Join, 13 PowerPlay, 29 Privacy Features, 17 Keypad Lock, 20 Q&A, 36 QuickTouch Music, 8, 19 Listen, 8, 16 Listen to Your iPod , 41...
  • Page 49 System Bus, 38 System Functions, 9 Unknown Remote Error, 38 System Information, 9 System Reset, 10 System Settings, 22 Voice Communication, 14 Tech tips, 41 Wall Station, 30 Tech-Heads, 42 WARRANTY, 33 Warranty Service, 33 Website, 52...
  • Page 50 Notes...
  • Page 51 Notes...

  • Page 52: Contact Information

    The First all digital Voice Music system CONTACT INFORMATION Main Office DHC, LLC 873 S. Orem Blvd., Suite 1 Orem, UT 84058 Voice 1-888-406-7776 FAX: 1-877-642-9910 User or Installer Support e-mail: Support@audioshare.net Phone: 1-801-615-7188 Sales e-mail: BJarvis@audioshare.net Phone: 1-888-406-7776 Website www.audioshare.net...
