Page 3: General
General General The Theben IPsecure Interface KNX connects the KNX bus to an Ethernet network. KNX telegrams can be sent to or received from other devices via the network. The interface can be used as a programming interface (ETS), and clients, e.g. visual display systems, can access the KNX bus via the IPsecure Interface KNX. -
Page 4: Notes
IP Interface KNX General 1.1.1 Notes Notes and safety instructions are represented as follows in this manual: Note Tips for usage and operation Examples Application examples, installation examples, programming examples Important These safety instructions are used as soon as there is danger of a malfunction without risk of damage or injury. Attention These safety instructions are used as soon as there is danger of a malfunction without risk of damage or injury. -
Page 5: Cyber Security (Network Security)
Cyber security (network security) The industry is increasingly faced with cyber security risks. To increase the stability, security and robustness of its solutions, Theben has introduced official robustness tests for Internet security as part of the product development process. In addition, the information below includes guidelines and mechanisms that you can use to improve the security of KNX systems. -
Page 6: Connection To The Internet
IP Interface KNX General Connection to the Internet The device is not intended for use on the public Internet. For this reason router ports in the direction of the Internet must not be opened; this action will ensure KNX communication is not visible on the Internet. Systems can be accessed via the Internet in the following ways: •... -
Page 7: Product And Functional Overview
General Product and functional overview The Theben IPsecure Interface KNX connects the KNX bus to an Ethernet network. KNX telegrams can be sent to or received from other devices via the network. The interface can be used as a programming interface (ETS), and clients, e.g. visual display systems, can access the KNX bus via the Interface. - Page 8 Theben Tool). An ETS app (Theben Update App) is available for the firmware update. If KNX Secure mode is not activated for the devices, a firmware update can also be performed with the Theben Tool. During the update process, the KNX bus (TP) must be connected in addition to the IP network (LAN). Otherwise, the update process will fail.
-
Page 9: Overview Of Versions
Number of tunneling servers IP discovery (IP Tool) Firmware update with (IP Tool * Firmware update with Theben Update App Power over Ethernet KNX Secure * Only if the device is not operated in KNX Secure mode... -
Page 10: Device Technology
IPsecure Interface KNX Device technology Device technology IPsecure Interface KNX is the interface between KNX installations and IP networks. KNX telegrams can be sent to or received from other devices via the network. The Interface can be used as a programming interface (ETS), and clients, e.g. - Page 11 The latest version of the application and corresponding software information are available for download from www.abb.com/knx. After import into ETS, the application is stored in the Catalogs window under Manufacturers/Theben/System Infrastructure and Interfacing/IP Routers and Interfaces.
-
Page 12: Connection Diagram
Cover cap Note It is also possible to power the Interface via the voltage output without choke of an Theben KNX power supply. This reduces the number of KNX devices that can be connected to the Theben KNX power supply... -
Page 13: Dimension Drawing
IPsecure Interface KNX Device technology Dimension drawing IPsecure Interface KNX... -
Page 14: Mounting And Installation
IPsecure Interface KNX Device technology Mounting and installation The device is a modular installation device for quick installation in distribution boards on 35 mm mounting rails to DIN EN 60 715. The installation position can be selected as required. The connection to the bus is implemented using the supplied bus connection terminal. The terminal assignment is located on the housing. -
Page 15: Unloading The Device And Resetting To Factory Settings
Note Any USB interface used for programming a KNX Secure device must support “long frames.” Suitable is an USB interface from Theben. There must be a connection to the KNX TP (twisted pair) in order to program the device. Approx. 10 seconds after the download is complete, the device reboots and closes all open tunneling connections. - Page 16 IPsecure Interface KNX Device technology Resetting to factory settings can also be performed directly on the device. This is not a security risk, because the device will no longer be part of the system afterward. • Press the Programming button when the KNX bus is not connected •...
-
Page 17: Description Of Inputs And Outputs
Only a DC voltage in a range of 12 to 30 V may be connected to the power supply input. We recommend using an power supply 640 mA S KNX from our range. It is also possible to power the Interface via the voltage output without choke of an Theben KNX power supply. Caution The supply voltage must be 12 to 30 V DC, or the device is powered via PoE (Power over Ethernet) according to IEEE 802.3af class 1. -
Page 18: Operating Controls

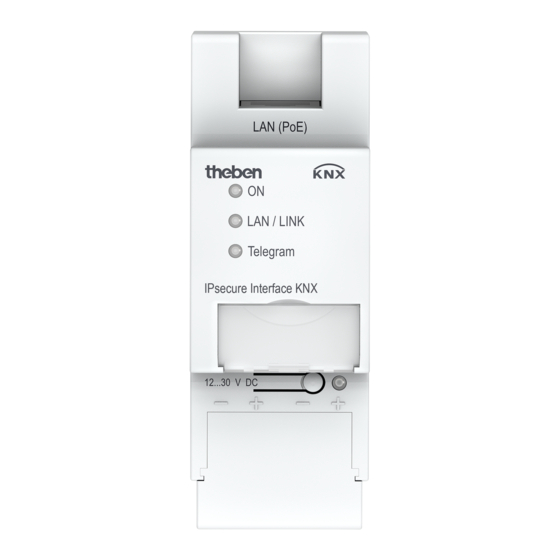

IPsecure Interface KNX Device technology Operating controls There are no operating controls located on the IPsecure Interface. Display elements Three indicator LEDs are located on the front of the device: LAN/LINK Telegram • The LED lights up a few seconds after the auxiliary voltage is connected. •... -
Page 19: Commissioning
The IPsecure Interface KNX is parameterized using the application and the Engineering Tool Software ETS. The application can be found under Theben AG/System components/Interfaces. For parameterization purposes, a PC or laptop with ETS and a connection to KNX are required. -
Page 20: Parameters
IPsecure Interface KNX Commissioning Parameters This chapter describes the parameters of the IPsecure Interface using the parameter windows. Parameter window IP settings All parameters for the device are set in the Properties window of ETS. Note The device name, IP address and tunneling servers are set in the Properties window of ETS. The IP parameters (device name, assignment of the IP address by DHCP or static) are configured in the Properties window of ETS. - Page 21 IPsecure Interface KNX Commissioning The IP address can be defined in the IP Properties window. The following options are available for setting the IP address: Options: Obtain an IP address automatically Use the following IP address • Obtain an IP address automatically: In the default setting, the IP Interface Secure expects the assignment of an IP address by a DHCP (dynamic host configuration protocol) server.
-
Page 22: Communication Objects
IPsecure Interface KNX Commissioning Communication objects The IPsecure Interface has no group objects. Use of the integrated tunneling servers The IPsecure Interface offers five additional physical addresses, which can be used for a tunneling connection. These so-called tunneling servers can be used with the ETS as a programming interface or with another client, e.g. a Visualisation. -
Page 23: Tunneling Server Settings
IPsecure Interface KNX Commissioning Note The physical address for the tunneling connection must fit the topology. Therefore, the addresses must be selected from the address range of the subordinate line. On delivery, all tunneling servers have the address 15.15.100. In ETS 5, the first five free addresses in the line are assigned automatically after the Interface has been inserted into a line. -
Page 24: Knx Secure
Commissioning KNX Secure The Theben IPsecure Interface is a KNX device according to the KNX Secure standard. In other words, the device can be put into operation in a secure manner and the tunneling connections are encrypted. The following information must therefore be taken into account during device commissioning: •... -
Page 25: Planning And Application
IPsecure Interface KNX Planning and application Planning and application The IPsecure Interface in the network The IPsecure Interface is designed for use in 10/100 BaseT networks compliant to IEEE 802.3. The device features an AutoSensing function and sets the baud rate (10 or 100 Mbit) automatically. 4.1.1 Assignment of IP address DHCP/AutoIP... -
Page 26: The Theben Ip Tool
4.2.1 Discovery The IP Interfaces can be found in the network using the IP Tool. Select Discovery mode in the ribbon area. This function serves to find and display Theben IP devices in the network. Note The functions are described in the IP Tool online help. -
Page 27: Firmware Update
Planning and application 4.2.2 Firmware update The device’s firmware should always be kept up to date. Theben provides tools with which the device’s firmware status can be checked. Theben IP Tool can be used for a firmware update in non-secure mode. -
Page 28: Contact
The agreed properties are definitive for any orders placed. Theben AG does not accept any responsibility whatsoever for potential errors or possible lack of information in this document. We reserve all rights in this document and in the subject matter and illustrations contained therein. -
Page 29: Open Source Software Components (Oss)
IPsecure Interface KNX Appendix Open source software components (OSS) A list of the open source components used is available on the Internet at: https://www.theben.de/OSS...
