BTR 60.300 Assembly, Installation And Commissioning Instructions

I
nstallatIon and

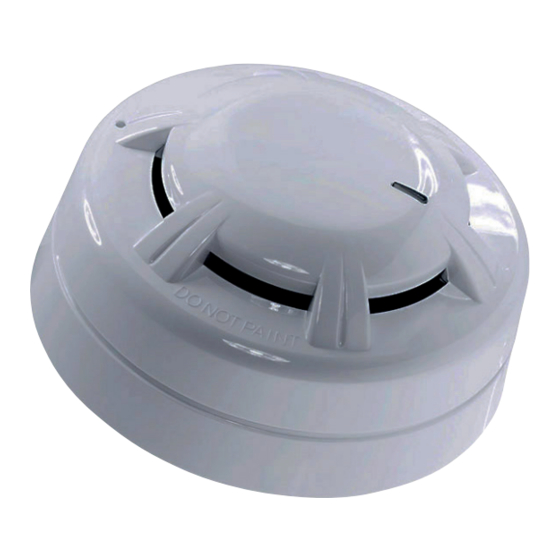

Optical smoke detector with mounting base
VdS certification no.:
G 204039
Assembly:
• Mount detector only in horizontal position.
• Produce drill holes for two screws M5 - according to the
hole layout from the smoke detector pedestal.
• Mount the smoke detector pedestal with two screws M5
at the mounting surface.
• Guide detector into locking position and turn it to the
right.
Remove the dust protection cap only with
!
start-up.
The connection depends on the Control Unit.
Warranty claims require proper and profes-
sional assembly, installation and maintenan-
ce in accordance with national regulations
!
and manufacturer's instructions of the RWA
control unit.
The safety instructions in the supplied pro-
duct documentation are to be observed.
C
ommIssIonIng
Optical smoke detector
Part.-No.:
60.300
Application:
for the automatic early detection of fire and controlling of the
„Emergency OPEN" function via a detector line of RWA
Control Units.
Measuring element:
Operating voltage:
Standby current:
Housing:
Dimensions (ØxH):
Connections:
Protection rating:
Display:
Feature / Equipment:
• Fire algorithms to avoid false alarms, automatic alarm threshold tracking
• According to EN 54-7, connection to the detector line input
Maintenance:
• Check smoke detector regularly with testing gas.
Adhere to instructions for detector test.
• Yellow blinking of the LED-display indicates a fault.
• Clean dirty detectors with a moist cloth or a little rubbing
alcohol. Replace if necessary.
• For maintenance and change of the detector, note the
current regulations (e.g. DIN 14 675).
N
I
nstruCtIon
photo electric / scattered light principle
8,5 – 33 V DC
< 100 μA
Surface mounting, plastic (ABS), pearl white
Ø100 x 50 mm
Screw terminals 1,0 mm² (rigid wire)
IP23D
Alarm LED
The smoke detector must be disposed in
ote
accordance with legal regulations.
Strictly observe the information given in this
and in the instructions for installation of the
RWA control unit, when mounting the
!
optical smoke detector.
Details can be found on our website
www.btr-hamburg.de
Keep this instruction over the lifetime of the
product.
