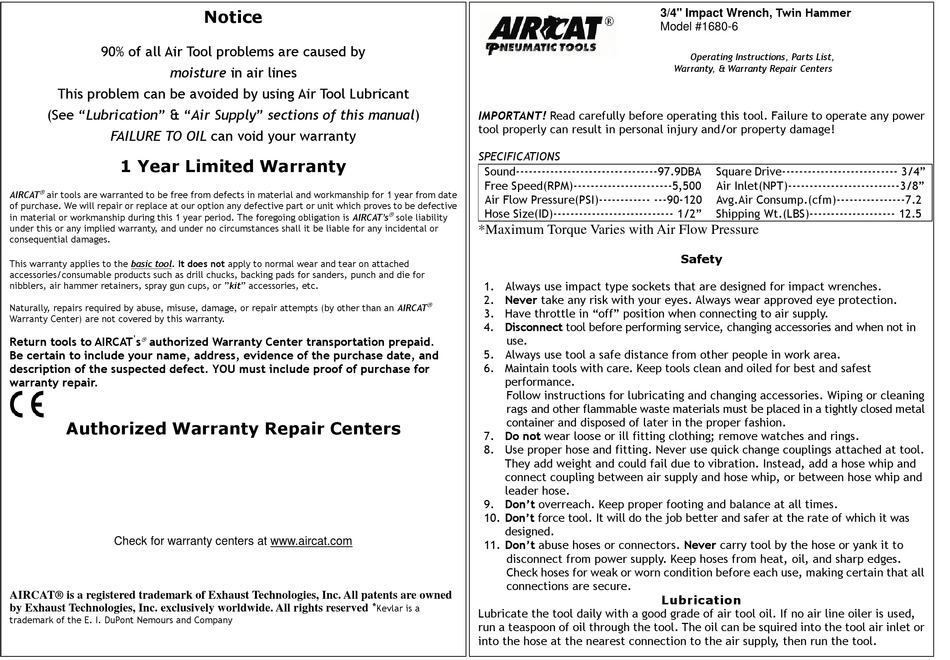

Aircat 1680-6 Operating Instructions

90% of all Air Tool problems are caused by
moisture in air lines
This problem can be avoided by using Air Tool Lubricant
(See "Lubrication" & "Air Supply" sections of this manual)
FAILURE TO OIL can void your warranty
1 Year Limited Warranty

AIRCAT air tools are warranted to be free from defects in material and workmanship for 1 year from date
of purchase. We will repair or replace at our option any defective part or unit which proves to be defective
in material or workmanship during this 1 year period. The foregoing obligation is AIRCAT's
under this or any implied warranty, and under no circumstances shall it be liable for any incidental or
consequential damages.
This warranty applies to the basic tool. It does not apply to normal wear and tear on attached
accessories/consumable products such as drill chucks, backing pads for sanders, punch and die for
nibblers, air hammer retainers, spray gun cups, or "kit" accessories, etc.
Naturally, repairs required by abuse, misuse, damage, or repair attempts (by other than an AIRCAT
Warranty Center) are not covered by this warranty.
'
Return tools to AIRCAT s authorized Warranty Center transportation prepaid.

Be certain to include your name, address, evidence of the purchase date, and
description of the suspected defect. YOU must include proof of purchase for
warranty repair.
Authorized Warranty Repair Centers
Check for warranty centers at www.aircat.com
AIRCAT® is a registered trademark of Exhaust Technologies, Inc. All patents are owned
by Exhaust Technologies, Inc. exclusively worldwide. All rights reserved *
trademark of the E. I. DuPont Nemours and Company

Notice

Kevlar is a
IMPORTANT! Read carefully before operating this tool. Failure to operate any power
tool properly can result in personal injury and/or property damage!

SPECIFICATIONS

Sound---------------------------------97.9DBA
Free Speed(RPM)-----------------------5,500
Air Flow Pressure(PSI)------------ ---90-120
Hose Size(ID)---------------------------- 1/2"

sole liability
*Maximum Torque Varies with Air Flow Pressure
1. Always use impact type sockets that are designed for impact wrenches.
2. Never take any risk with your eyes. Always wear approved eye protection.

3. Have throttle in "off" position when connecting to air supply.
4. Disconnect tool before performing service, changing accessories and when not in
use.
5. Always use tool a safe distance from other people in work area.
6. Maintain tools with care. Keep tools clean and oiled for best and safest
performance.
Follow instructions for lubricating and changing accessories. Wiping or cleaning
rags and other flammable waste materials must be placed in a tightly closed metal
container and disposed of later in the proper fashion.
7. Do not wear loose or ill fitting clothing; remove watches and rings.
8. Use proper hose and fitting. Never use quick change couplings attached at tool.
They add weight and could fail due to vibration. Instead, add a hose whip and
connect coupling between air supply and hose whip, or between hose whip and
leader hose.
9. Don't overreach. Keep proper footing and balance at all times.
10. Don't force tool. It will do the job better and safer at the rate of which it was
designed.
11. Don't abuse hoses or connectors. Never carry tool by the hose or yank it to
disconnect from power supply. Keep hoses from heat, oil, and sharp edges.
Check hoses for weak or worn condition before each use, making certain that all
connections are secure.
Lubricate the tool daily with a good grade of air tool oil. If no air line oiler is used,
run a teaspoon of oil through the tool. The oil can be squired into the tool air inlet or
into the hose at the nearest connection to the air supply, then run the tool.
3/4" Impact Wrench, Twin Hammer
Model #1680-6
Operating Instructions, Parts List,
Warranty, & Warranty Repair Centers
Square Drive--------------------------- 3/4"
Air Inlet(NPT)--------------------------3/8"
Avg.Air Consump.(cfm)----------------7.2
Shipping Wt.(LBS)-------------------- 12.5

Safety

Lubrication
