TivoCUE10 Quick Start Guide
The TivoCUE 10 is a powerful and easy-to-use two-universe (1024 channel) DMX controller. To begin, install CUE Pro or CUE
software onto a computer. CUE Pro is recommended because it can utilize all the features of the TivoCUE10.
This guide will focus on using CUE Pro. Please consult the CUE manual for instructions on using that program. Install the
software by downloading the ".exe" file from the Tivoli website. Please read the manuals for both the TivoCUE10 and CUE Pro
software for additional instructions.

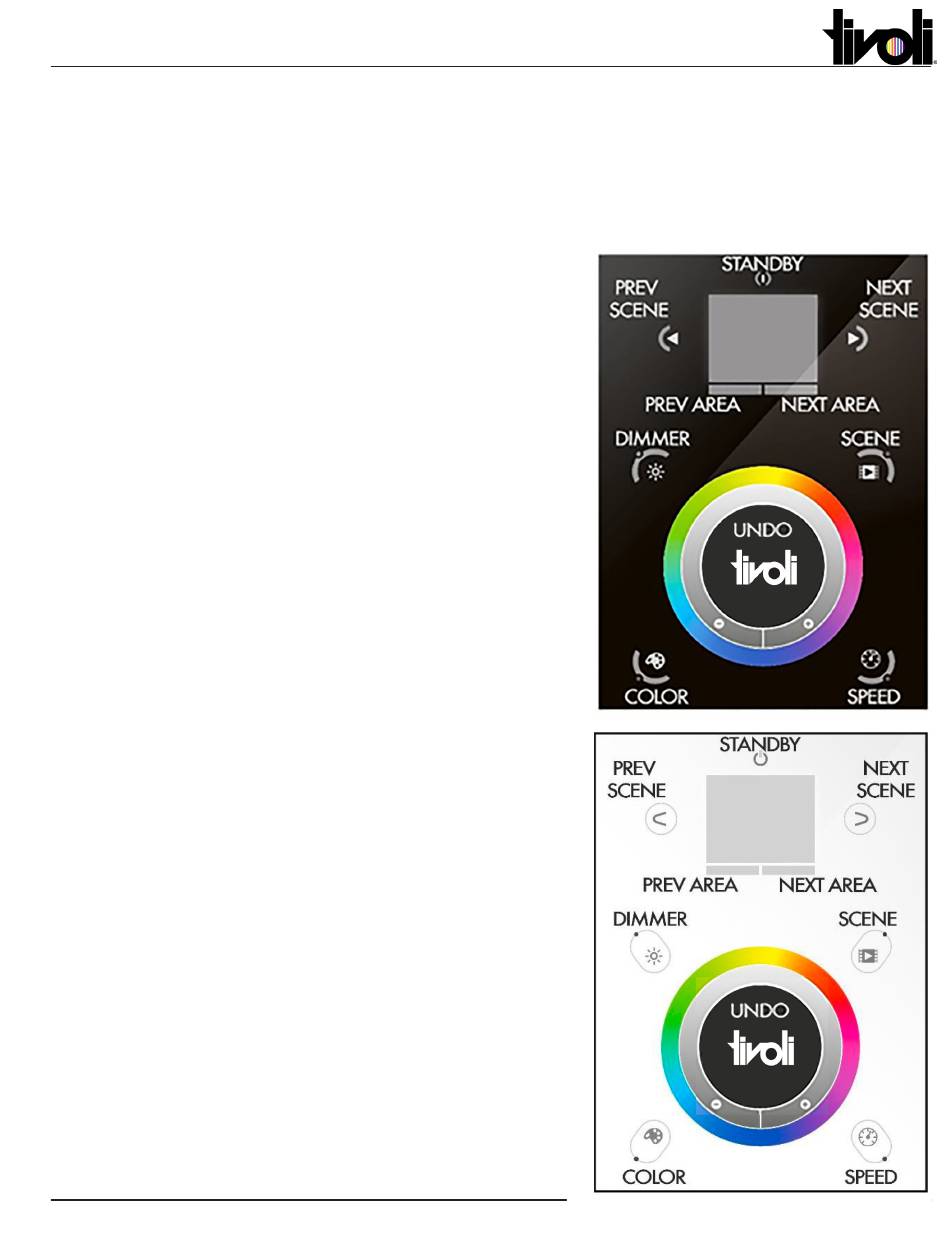

TivoCUE10 Front Controls
• Standby – Powers the unit on and off. Hold for
the settings menu, where settings and controls can
be customized. The settings menu is covered in
detail in the TivoCUE10 product manual.
• Prev/Next Scene – Cycle through saved scenes in
the currently selected area.
• Prev/Next Area- Cycle through all programmed
areas.
• Dimmer – Activates dimming mode. Use the color
wheel to adjust brightness.
• Scene – Activates scene selection mode. Use the
arrows to cycle through saved scenes.
• Color – Activates color selection mode. Use the
color wheel to cycle through colors.
• Speed –Activates speed selection mode. Use the
color wheel to adjust the speed of the scene.
• Undo – Undoes the previous change.
Copyright © 2019 Tivoli 07.08.19
Page 1 of 10
www.tivolilighting.com tel: 714-957-6101 fax: 714-427-3458

Advertisement

loading
Need help?

Need help?

Do you have a question about the TivoCUE10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tivoli Audio TivoCUE10

  • Page 1 This guide will focus on using CUE Pro. Please consult the CUE manual for instructions on using that program. Install the software by downloading the “.exe” file from the Tivoli website. Please read the manuals for both the TivoCUE10 and CUE Pro software for additional instructions.
  • Page 2 TivoCUE10 Quick Start Guide TivoCUE10 Bottom Connections and Controls • Data LED – Flashes to indicate that the TivoCUE10 is communicating with another device. • Mini USB Port – Used to connect the TivoCUE10 directly to a computer with the included cable.
  • Page 3 USB cable, which will also supply power. Alternatively, connect it to a local network using the Ethernet port and power it using the included adapter. Start the software after the TivoCUE10 is powered on and the startup menu will recognize a USB or Ethernet connected device, depending on how you choose to connect it.
  • Page 4 TivoCUE10 Quick Start Guide 5. In the ScanLibrary section, open the “generic” folder and select “rgb” (for any pixel or standard RGB LEDs). Select the number of fixtures to add. Click “Patch” to add the RGB device(s) to the DMX universe. Each pixel or RGB strip requires a separate RGB fixture.
  • Page 5 TivoCUE10 Quick Start Guide 7. Skip steps 7-8 if all fixtures will be controlled in unison. Click on the “Add Areas” button to create zones within the DMX setup. Edit the area name by clicking on it. Then click the “Areas” button at the top to manage areas.
  • Page 6 TivoCUE10 Quick Start Guide 9. Click the name of the area to be programmed, then click the “Add Scene” button to add a new scene. The selected devices will appear on the timeline. Adjust duration, repetitions and more using the buttons in the scene window.
  • Page 7 TivoCUE10 Quick Start Guide 11. Repeat steps 9 and 10 for all desired scenes in each area. Each area saves scenes in a separate page, so the areas are triggered independently. (sample below) 12. Press the Play button in the timeline section to play the new program.

  • Page 8: Live Mode

    TivoCUE10 Quick Start Guide Live Mode 1. Click on the “Live” tab at the top to access all saved scenes and easily run them from the computer. Copyright © 2019 Tivoli 07.08.19 Page 8 of 10 www.tivolilighting.com tel: 714-957-6101 fax: 714-427-3458...

  • Page 9: Standalone Mode

    • Click “Write the interface memory” to complete the download. • Click the “DMX Mode” button at the top and select “Stand Alone” to test the new program using the TivoCUE10. Select “Live” to return the TivoCUE10 to computer control.
  • Page 10 App Control Using a Smartphone or Tablet There are three apps that can be used to turn a smartphone or tablet into a remote control for the TivoCUE10. They are: DMX Lightpad 3, Easy Remote and Arcolis. All of these are by “LIGHTINGSOFT AG” and are available from Google Play and the Apple App store for free.
