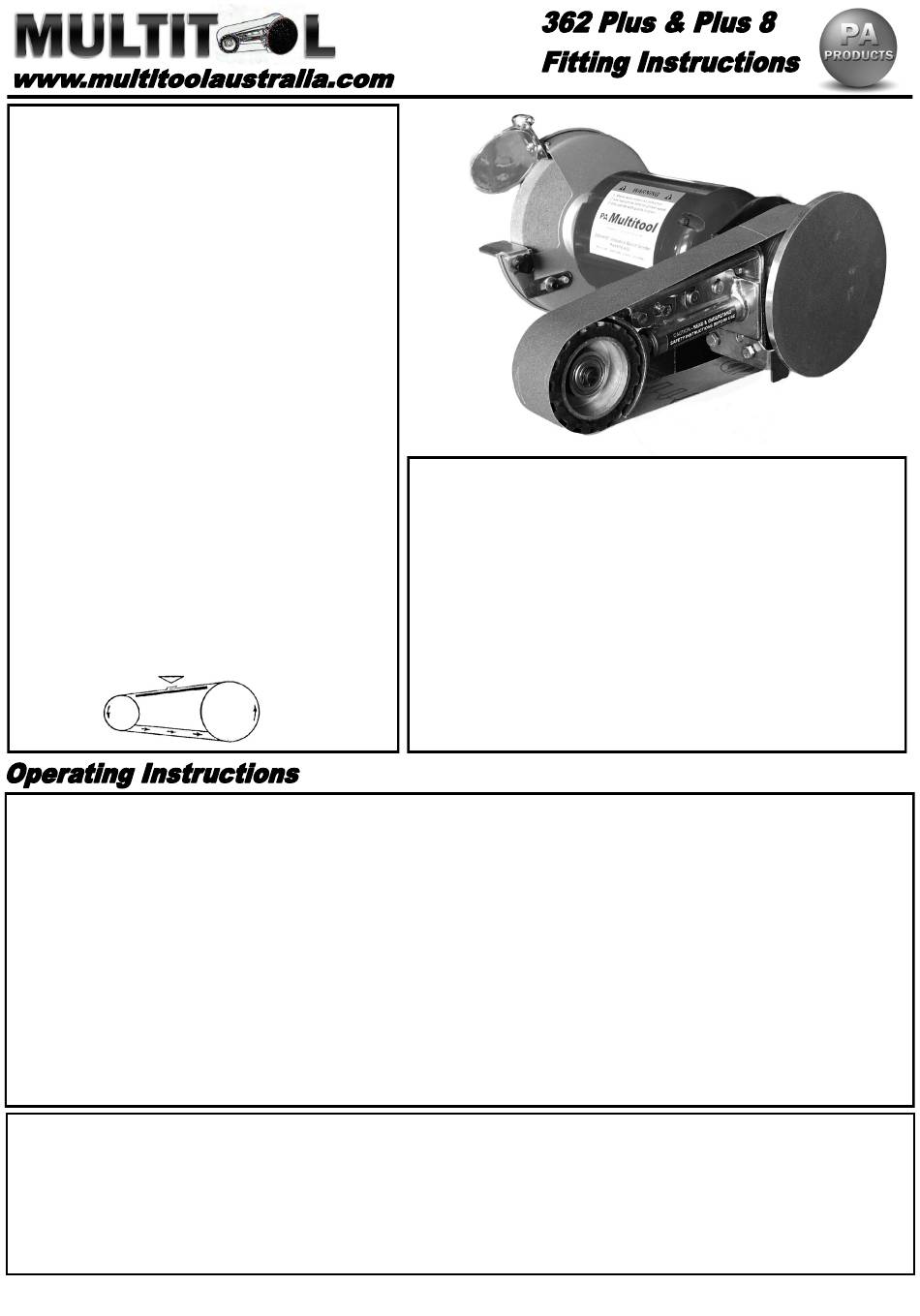

Multitool 362 Plus Fitting Instructions

WARNING:
Read, understand and follow all instructions before operating the
Multitool:
1. ALWAYS WEAR EYE PROTECTION. A full-face visor is
preferred. Any Belt/Disc Grinder can throw foreign objects into
the eyes
2. AVOID CONTACT with Belt or Disc. The abrasive belt
when running is an aggressive cutting tool. Extra care should be
exercised when using coarse grit belts because of their rapid
cutting action.
3. KEEP CHILDREN AWAY. All visitor s should be kept a
safe distance from the work area.
4. BOLT THE BENCH GRINDER secur ely to the bench or
supporting surface to stop it from tipping over or moving when
in use.
5. DO NOT MOUNT the attachment pr otr uding into
walkways.
6. KEEP WORK AREA CLEAN. Clutter ed areas and benches
invite accidents.
7. ALWAYS WEAR A DUST MASK to prevent dust
inhalation when adequate ventilation or extraction is not
available.
8. DO NOT WEAR LOOSE CLOTHING which may become
entangled in the machine. Wear protective hair covering to
contain long hair.
9. ALWAYS HOLD the wor k piece fir mly when gr inding and
apply a light and steady pressure against abrasive disc or belt.
10. ALWAYS GRIND ON THE DOWNWARD SIDE of the
grinding disc. Grinding on the upward side of the disc could
cause the work piece to fly out of position, resulting in injury.
11. DO NOT USE belts that are damaged, tor n or show signs of
wear.
12. ALWAYS INSTALL BELTS with ar rows in the back of the
belts facing the correct direction. Belts and lap joints must be
fitted facing the correct direction. See sketch below.
BELT CHANGING
To remove the belt simply push down on the underside of belt to compress the tensioner assembly. Catch automatically holds slide in retracted position. When refitting the
belt simply release the catch (fig 3) Always make sure the belt lap faces the correct direction. (diagram reverse side)
DISC GRINDING
Whenever possible remove the belt when using the disc facility. The disc grinding facility is a very useful and versatile part of the attachment. It is very useful for dressing
small castings and components, patterns, models etc., often eliminating costly machining. Tool and cutter sharpening is a simple task and there is less chance of burning
edges. With the addition of the table, lengths and angles are easy to adjust. A rubber cleaning stick should be used regularly to prevent the build up of wood resin. Three
options are available in abrasive discs. 1. Self-Adhesive. 2. Fur backed – which must be used with an optional hook and loop backing pad. 3. Plain paper or cloth backed
disc which must be attached with a contact adhesive. When changing a disc pad remove any remaining adhesive with a solvent eg acetone– Do not use household cleaners.
CONTACT WHEEL GRINDING, POLISHING AND SANDING
Using the front contact wheel avails the user of material removal many times faster than a conventional grinding wheel. The unique smooth cutting action is cooler, faster
and safer than conventional grinding methods. A good example of one of the many uses is the smoothing of welds and casting blemishes prior to plating. Using the
extremely fast and easy belt change, it is possible to go from a rough weld finish to a flat smooth polished finish suitable to chrome plate in only three belt changes. e.g.
Remove rough weld with 40, 60 or 80 grit belt. Remove grinding marks – 240 grit belt. Change ground finish to smooth, brushed finish for plating – Scotchbrite super
fine. Wood shaping and finishing can be done in a similar manner but belts should always be kept exclusively for wood, especially in the finer grades. A rubber belt
cleaning stick helps prevent clogging on wood use.
FREE STRAPPING
Free strapping is a method of belt grinding, sanding or polishing where no backing is used behind the belt. It is especially suitable for round and contoured work and some
sharpening operations. It is done on the underneath side of the belt opposite the platen. It is ideally suited to narrow belt widths as small as ½" (13mm). Belt grades of
180 to 400 are recommended because of the rapid cutting action of narrow belts.
The words "us", "we" or "our" refers to P.A Products or their authorized agent.
The warranty will only apply if the operating fitting instructions are followed.
The warranty will not apply for a period of 3 years from the date of original
purchase against any defect in our product, which can be proved, to our
satisfaction to have been caused by faulty materials or workmanship. Our
liability is limited to the cost of repairing or at our option, replacement of the
defective goods or parts of the goods. We will not be liable for any defect
caused by unauthorized repair.
FOR TECH SUPPORT VISIT WWW.MULTITOOLAUSTRALIA.COM OR IN AUSTRALIA CONTACT PA PRODUCTS (02) 6331-8881
Specifications
Multitool 362
Belt size 36" x 2" (915 x 50mm) Disc size 7" (178mm) Contact Wheel 3½ (89mm) dia. Suits
most 6" (150mm) or 8" (200mm) bench grinders with minimum 1/3 H.P. (248W) and shaft
sizes of 1/2" or 5/8". Rating Continuous Industrial.
Belt Application
Oxide Belts
HEAVY GRINDING OR THIN SECTIONS
ALUMINIUM
WOOD Use Aluminium Oxide Resin Bond open or close cote 40,60,80,100,120 Gritsivi
PLASTICS, GLASS CERAMIC, GENERAL LAPIDARY Use silicon Carbide Resin Bond
Close Cote
WARRANTY AND CONDITIONS OF SALE
INSTRUCTIONS TO FOLLOW FOR WARRANTY CLAIMS:
If warranty claim is made, we must be notified as soon as possible after assumed
defect has become apparent.
Goods may only be returned for credit with the approval of PA Products in Australia
Ph. (02) 6337 1142 or Van Sant in the USA Ph. 800 828 2043
The customer must prepay all freight charges for returned goods.
We will contact the customer with an advice after inspecting the goods to determine
with the customer what action should be taken in the circumstances.
COURSE FINISH
MEDIUM TO FINE
VERY FINE
MICROFINISHING
Always use belt grease to prevent clogging
Use 40 to 80 Grit aluminium
Use 100 to 80 Grit
Use 250 to 400 Grit
Use 3M Trizact 600 to 2000
Use Zirconia Belts 40,60,80
