Siskiyou 6519 Setup Instructions

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

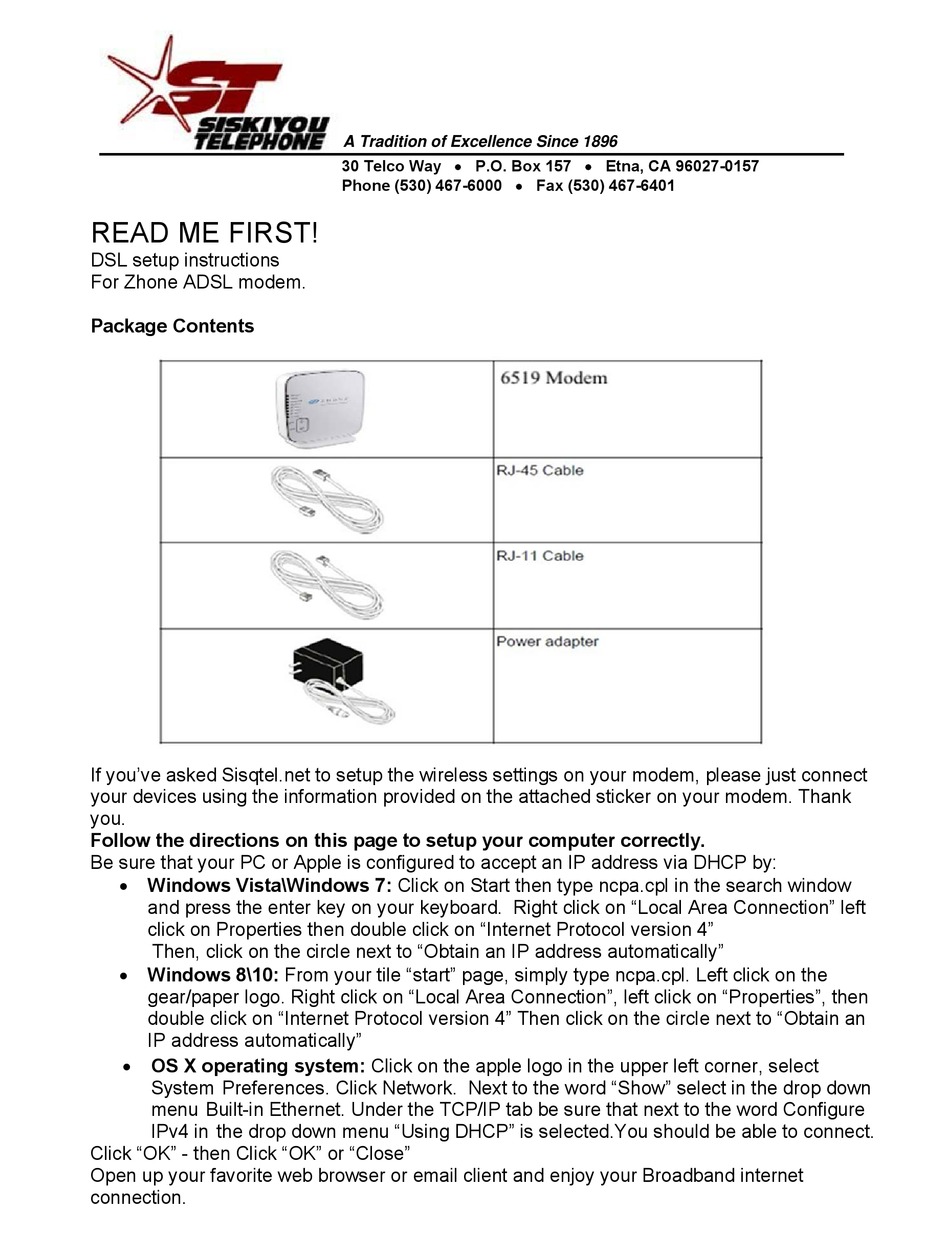

READ ME FIRST!
DSL setup instructions
For Zhone ADSL modem.

Package Contents

If you've asked Sisqtel.net to setup the wireless settings on your modem, please just connect
your devices using the information provided on the attached sticker on your modem. Thank
you.
Follow the directions on this page to setup your computer correctly.
Be sure that your PC or Apple is configured to accept an IP address via DHCP by:
 Windows Vista\Windows 7: Click on Start then type ncpa.cpl in the search window
and press the enter key on your keyboard. Right click on "Local Area Connection" left
click on Properties then double click on "Internet Protocol version 4"
Then, click on the circle next to "Obtain an IP address automatically"
 Windows 8\10: From your tile "start" page, simply type ncpa.cpl. Left click on the
gear/paper logo. Right click on "Local Area Connection", left click on "Properties", then
double click on "Internet Protocol version 4" Then click on the circle next to "Obtain an
IP address automatically"
 OS X operating system: Click on the apple logo in the upper left corner, select
System Preferences. Click Network. Next to the word "Show" select in the drop down
menu Built-in Ethernet. Under the TCP/IP tab be sure that next to the word Configure
IPv4 in the drop down menu "Using DHCP" is selected.You should be able to connect.
Click "OK" - then Click "OK" or "Close"
Open up your favorite web browser or email client and enjoy your Broadband internet
connection.
A Tradition of Excellence Since 1896
30 Telco Way P.O. Box 157 Etna, CA 96027-0157
Phone (530) 467-6000 Fax (530) 467-6401

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6519 and is the answer not in the manual?

Questions and answers

Related Manuals for Siskiyou 6519

Summary of Contents for Siskiyou 6519

  • Page 1 A Tradition of Excellence Since 1896 30 Telco Way P.O. Box 157 Etna, CA 96027-0157 Phone (530) 467-6000 Fax (530) 467-6401 READ ME FIRST! DSL setup instructions For Zhone ADSL modem. Package Contents If you’ve asked Sisqtel.net to setup the wireless settings on your modem, please just connect your devices using the information provided on the attached sticker on your modem.
  • Page 2 Label Color Function Power Green Off: No Power, On: Power on Green Off: No connection or no signal On: aDSL synced up successfully     Blink: aDSL sync up in progress     Internet Green Off: No data being transmitted On: Data being transmitted Green Off: No computer/router link...
  • Page 3 Zhone-6519 Modem/Router Wireless Setup 1. With the Ethernet (RJ-45/yellow) cable plugged into your computer, open your Web Browser. 2. In the URL box on top put http://192.168.1.1 click “Enter.” 3. Next you should be asked to enter a user name and password. Username is admin, Password is your phone number with a “–“...
  • Page 4 All phone lines must be filtered for the best DSL service. First plug your DSL two port filter into your wall jack. Be sure to plug the phone side of your filter into your phone and the computer screen side of the filter (DSL/HPN) into your DSL modem.
