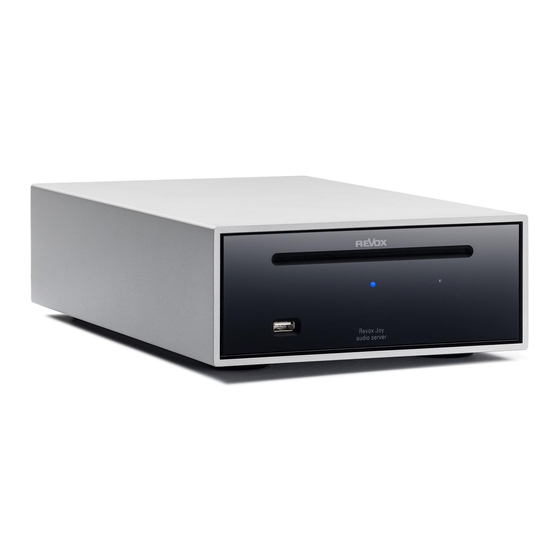

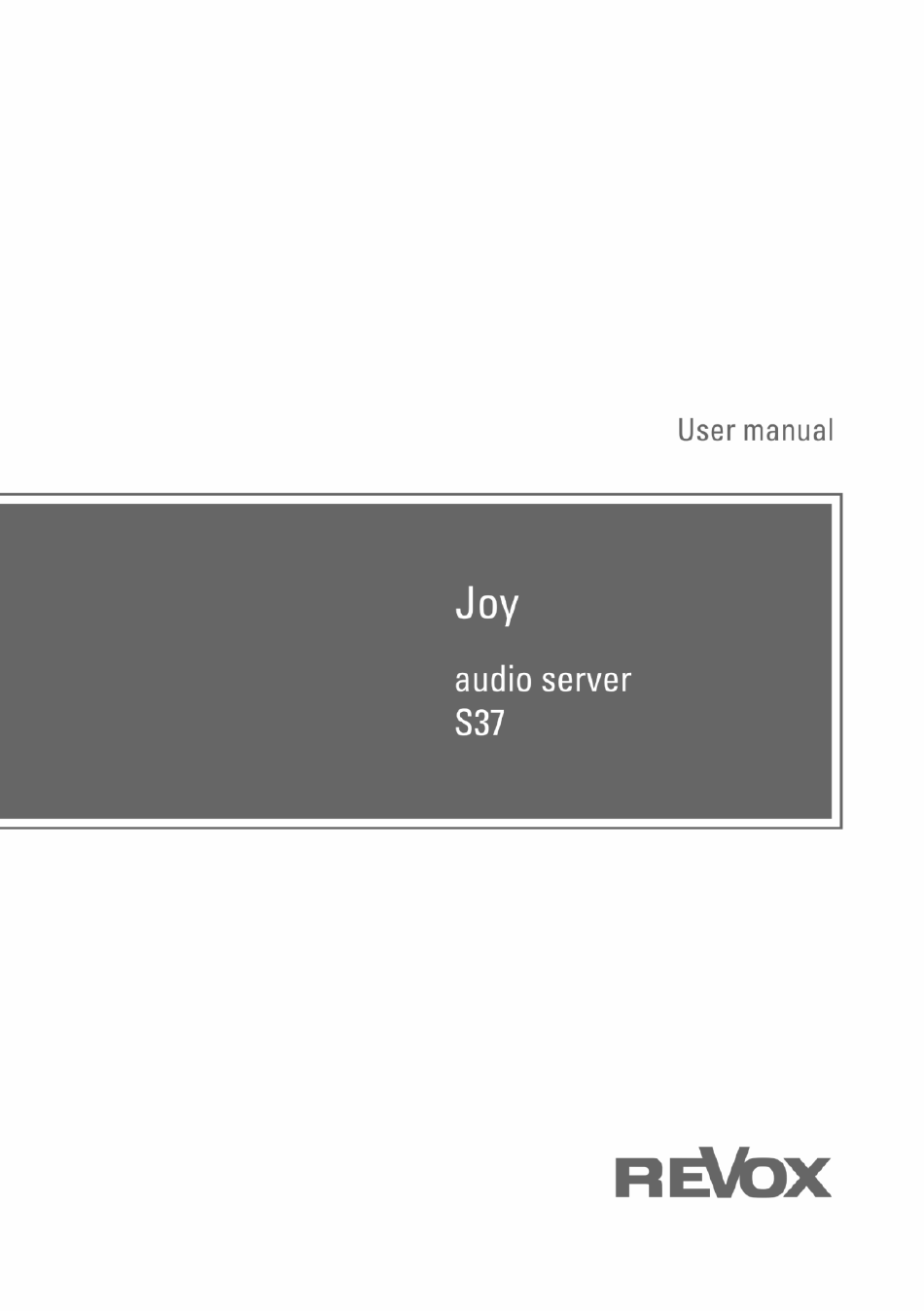

- Page 1 Revox Joy S37 Audio Server Page 0...
-
Page 2: Table Of Contents
Home menu ......... 17 Changing the view ......33 Standby mode ........17 View - Artist ........33 Settings ..........17 View - Albums ......... 33 Help ........... 17 View - Genre ........34 Revox Joy S37 Audio Server Page 1... - Page 3 Refresh an archive ......49 Reset ............ 61 Help ............50 Manufacturer code list (overview) .. 66 Audio streaming ......... 50 Gracenote EULA ......67 General information ....51 Gracenote Service ......68 Revox Joy S37 Audio Server Page 2...
- Page 4 Revox Joy S37 Audio Server Page 3...
-
Page 5: Welcome
Scope of delivery applies to all areas of the S37. Revox hopes that you have a lot of fun and Revox Audio Server of course a lot of entertainment, as you Remote control M117 use your Revox Audio Server. -
Page 6: Safety
- is unstable absence. - has high humidity Unplug the unit from the mains during The guarantee only covers the intended storms. Voltage peaks through the usage of the unit. Revox Joy S37 Audio Server Page 5... - Page 7 Protect your unit from: Regulations pertaining to the unit Damp, dripping water, splash water and In EU and EEC countries, Revox offers a steam. guarantee on units bought in the EU, Impacts and mechanical loads over and above the statutory rights of Magnetic and electrical fields guarantee claims against the seller.
-
Page 8: First Contact
These The best picture quality for the transfer have to be selected in the S37 Settings of the Revox Audio Server GUI to your menu in the Audio section. picture display device is offered through You have the options the HDMI connection. - Page 9 Optionally, the S37 can also be operated using a wireless keyboard. You can connect the Revox wireless keyboard using a USB receiver plugged into one of the USB sockets on the rear of the unit. Revox Joy S37 Audio Server Page 8...
-
Page 10: Unit Front Panel
Selection Menu indicates that it is ready Standby LED display for operation. Do not press any button on A blue LED indicates that the Revox the remote control or any connected Audio Server is in standby mode. This wireless keyboard during the boot-up display goes out as soon as the S37 is procedure. -
Page 11: Unit Rear Panel
Revox Audio Server Introduction Unit rear panel There are a lot of connections on the rear panel of the Revox Audio Server, which are described in the following. 2-way USB 2.0 Power supply Connection for 2 x USB 2.0 devices... - Page 12 Revox Audio Server Introduction HDMI Video output Connect the Revox Audio Server to a picture display device through the HDMI output. This connection supports the HDCP protocol and is compatible with the HDMI 1.3a standard. Audio formats up to 24 bit/98 kHz are supported.
-
Page 13: Remote Control
Both batteries should always be requirements of the Revox Entertainment exchanged at the same time. System and the Revox Audio Server. Basic operation The complete control of the S37 can be carried out using the Arrow buttons , the... -
Page 14: Function Display Through Leds
You can control the M117/S37 volume M117 - Funktionen TV - Mode across all sources with the Volume buttons Function buttons in general There are several buttons on the remote control that function irrespective of the Revox Joy S37 Audio Server Page 13... -
Page 15: Tv Function Buttons
Music archive function buttons Picture-in-picture mode In addition to the general applications, the following buttons are available Last channel within the music archive: Additional information Detail information Programme change Play Start recording Pause Play Stop Revox Joy S37 Audio Server Page 14... -
Page 16: Pictures Archive Function Buttons
You can switch the function mode of the remote control using the Function button in order to allow you to operate a television. You will find details of how to program for your personal television in the TV programming chapter. Revox Joy S37 Audio Server Page 15... -
Page 17: Remote Control Overview
Revox Audio Server Remote control Remote control overview Revox Joy S37 Audio Server Page 16... -
Page 18: Home Menu
Help another selection. You can display the S37 Operating If a function in the Revox Audio Server Manual in PDF format on the S37 through should lead to an inconsistency, the the "Help" option. The Help function is... - Page 19 Home menu place relevant to the position where you called the function from. You navigate through the Operating Manual using the arrow buttons and return to the previous menu with the Back button. Revox Joy S37 Audio Server Page 18...
-
Page 20: General Settings
General settings General settings System In System settings, you can define the The basic configuration of the Revox system language, the date and time, a Entertainment System is done through screen saver, a switch-off timer and the the Settings menu. As a rule, these settings for the front display panel and settings only have to be made once. - Page 21 Using the switch-off timer, you can touching the panel. The "Sensitivity" define when the Revox Audio Server setting allows you to set the sensitivity of should automatically be switched to the proximity sensor's reaction level.
-
Page 22: Display Settings
The scaling is then carried out at the defined timepoint then carried out in the Revox Audio on the following day. Server and the best possible picture This option gives you energy savings. -
Page 23: Audio Settings
IT network through this menu display device and the S37. item. You define the designation that is used to identify the Revox Audio Server Audio settings in the network through the Device name You match the audio output of your S37 input. -
Page 24: Music Settings
Multimedia module. If Under Settings, navigate to the Media the UPnP server is activated, S37 music source entry and highlight the option can be played in each room of a Revox "Add new source". Multiroom System through Multimedia module or the Joy products. -
Page 25: Auto Start - Disc
Version 1.5 of the S37 from the three options mentioned above. Audio Server software, in respect of inserting a CD. Revox Joy S37 Audio Server Page 24... -
Page 26: Storage Location For Audio Cds
The FLAC and WAV formats can also be set. Please note that with FLAC and MP3, the Revox metadata is written into the music In this way, the music database can be file. With WAV, this is not possible expanded essentially to any size. -
Page 27: System Information
The menu gives you the option to make a manual search for updates for your S37. You will receive a notification from Revox through the user interface in the case of a firmware update. If you don't want to carry out the update at that... -
Page 28: Advice On Settings
If the S37 is separated from the mains through the power switch or if it has to be shut down following a system conflict, it can happen that the changes have to be made again. Revox Joy S37 Audio Server Page 27... -
Page 29: Music Archive
"Copying audio CDs" You simply navigate the music archive chapter. and the Revox Audio Server plays the Using this setting, the CD is recorded music through one of the audio outputs automatically in the background and at or serves as a UPnP Server. -
Page 30: Record View
Import/Export menu. manually change the metadata of the If a recording is possible or is running, track or even the entire album. Details the record button is shown in the lower status bar. Revox Joy S37 Audio Server Page 29... -
Page 31: Cancel Recording
Within the menu, you will find the option The import process can be started by "Import/Export". Select this option. pressing the Record button Revox Joy S37 Audio Server Page 30... - Page 32 S37, the following screen opens after a short time. Select an option and confirm your choice with the OK button All further steps can be carried out, as described on the previous page. Revox Joy S37 Audio Server Page 31...
-
Page 33: Browsing For Music
Cover - If there are several albums by Folder view the artist available, a "slide show" of File system view the covers of the available albums is shown in the blue border. Revox Joy S37 Audio Server Page 32... -
Page 34: Changing The View
Music archive Changing the view within the menu one of the eight possible options - the file manager is missing with The Revox Audio Server offers two this selection. methods of switching between views. The easiest way is to move the... -
Page 35: View - Genre
Revox Audio Server Music archive Essentially, display always But the Revox Audio Server also offers dependent on how the album's metadata this option because this search criterion is set up and administered. is very important for lovers of classical music. -
Page 36: View - Folders
Settings / Music. The basis for the navigation here is the folder structure, not the list structures as arranged by the UPnP server. You can also see where the files are physically stored in this view. Revox Joy S37 Audio Server Page 35... -
Page 37: Music Selection
(in the same way as with an SMS), or more conveniently by using a Revox wireless keyboard and confirmed with the button Depending on the text that was entered,... -
Page 38: Search Function Searching
Creating playlists You can create an unlimited number of playlists from music tracks in the Music archive on the Revox Joy Audio Server. You can give individual names to the playlists and then later choose one of them to listen to through the Playlist view. - Page 39 No more entries are needed if adding to an existing playlist. If you want to create a new playlist, a dialogue window opens where you can define the name of your playlist. Revox Joy S37 Audio Server Page 38...
-
Page 40: Playing Music
Additional information can be found in the chapter “audio settings”. From the standpoint of audio quality, the best way is to control the volume through the amplifier and not through the S37. Revox Joy S37 Audio Server Page 39... - Page 41 Menu . Press the Menu button while playback is active and then select Repeat or Shuffle from the menu. The tick indicates that the Shuffle function is active. Revox Joy S37 Audio Server Page 40...
-
Page 42: Play Modes
Revox Joy S37 Audio Server Page 41... -
Page 43: Play Menu
Play button . The track that is being currently played is stopped and the new selection is played. The "Play as next" selection causes the currently selected track(s) to be Revox Joy S37 Audio Server Page 42... -
Page 44: General Functions
Selecting entries Normally, the currently highlighted entry In the Revox Audio Server, multiple has a blue border around it. Further entries from an archive can be selected functions principally affect with the Select button highlighted entry. -
Page 45: Editing Entries
It is often the case that several entries in confirmation dialogue. one album need to be changed at the same time. The Revox Audio Server also Editing entries has a solution for this eventuality. The metadata of the different music... - Page 46 S37 also offers a solution in this case. Work step by step through the following Scan the cover in or search for it windows to get to your folder with the through Google Images, for example. file. Revox Joy S37 Audio Server Page 45...
-
Page 47: Deleting Entries
Then press the Movies, Music and Pictures archives, Delete button on the remote control the Revox Entertainment System offers a and the element highlighted with the simple but effective search function blue border or the highlighted folder is through the "Search"... -
Page 48: Inserting A Disc
"Eject disc" option in the "Play" menu. is carried out in different fields. To eject a USB drive, mark the drive for Music archive: example in the file manager. Artist Album artist Album Title Revox Joy S37 Audio Server Page 47... -
Page 49: Exporting Files
Revox Audio Server General functions Exporting files The Revox Audio Server also offers a corresponding function for exporting data from all three archives to external storage media. Select the desired data in one of the archives with the Select button . -
Page 50: Refresh An Archive
Stop button Refresh an archive You can name this new folder according to your individual requirements. The Revox Audio Server always needs a certain amount of time to refresh archive views. If a newly recorded programme is not visible or if you cannot see the data... -
Page 51: Help
Help One of the options that you will find in many menus is "Help". If you select this option, the Revox Entertainment System Operating Manual opens as a PDF file. You navigate within the PDF document using the arrow buttons. -
Page 52: General Information
S37. If these folders have been deleted without the approval of Revox, you will be charged for any work required by remote maintenance to recreate them, even during the warranty period. - Page 53 CD, for example. Also within the warranty period, Revox can offer a warranty on the hardware but not on the data. Therefore, you should make regular backups of the data that you value.
-
Page 54: Abbreviations & Terminology
URL stands for Uniform Resource Locator. URLs identify and localise a resource that can be accessed by devices in computer networks. Revox Joy S37 Audio Server Page 53... -
Page 55: Service
If the problem cannot be resolved with Online update the Operating Manual or with the help of the specialist dealer, Revox also offers Revox will offer software updates for the online support for the Revox Audio S37 at irregular intervals. Revox makes Server. -
Page 56: Warranty
We recommend keeping the original box and packaging material so that if required, the device can be transported safely. Any damage in transit caused by using insufficient packaging is not covered under the terms of the warranty. Revox Joy S37 Audio Server Page 55... -
Page 57: Wireless Keyboard
Keyboard As well as the remote control, the optional Revox wireless keyboard can CTRL + SHIFT + V also be used to operate your Revox CTRL + P Audio Server. CTRL + SHIFT + P Your specialist dealer can order the... -
Page 58: Installation
S37 USB receiver. is switched on. Now the middle LED on the front of the wireless keyboard lights up for about 10 Revox Joy S37 Audio Server Page 57... -
Page 59: Status Leds
Readiness state In order to bring the keyboard out of standby mode, just press any key on the keyboard (not a mouse button or the touchpad). Revox Joy S37 Audio Server Page 58... -
Page 60: Tv Programming
5 times at the automatically returns to the original end of the list, use the automatic mode. search function. Revox Joy S37 Audio Server Page 59... -
Page 61: Automatic Search
navigation button. Once the correct code has been found, this has to be confirmed with the button. After searching is completed, the remote control returns to its original status. Revox Joy S37 Audio Server Page 60... -
Page 62: Reading Out The Code
If the digit has the value 0, the LED doesn't flash. If no button is pressed for 10 seconds during programming, the remote control automatically returns to the original mode. Revox Joy S37 Audio Server Page 61... - Page 63 543 661 763 780 781 784 683 684 685 686 687 688 689 690 691 692 693 694 695 696 697 698 699 700 701 702 703 704 705 706 707 708 769 788 794 804 Revox Joy S37 Audio Server Page 62...
- Page 64 229 230 231 232 233 234 235 236 237 238 239 246 254 258 259 437 439 788 Philips 258 272 312 407 408 410 411 412 415 417 420 421 422 423 424 425 426 431 Revox Joy S37 Audio Server Page 63...
- Page 65 648 650 674 686 Tatung 159 211 310 326 424 437 439 449 475 517 524 528 539 541 547 584 707 788 804 805 Technica 290 413 432 435 492 493 507 510 779 Technics Revox Joy S37 Audio Server Page 64...
- Page 66 Code table information This code table only includes a small extract for the most commonly used models and brands. The complete list can be downloaded free-of-charge from the Download area of the Revox web site www.revox.de. Television models that intelligently controlled...
-
Page 67: Manufacturer Code List (Overview)
Hitachi Saba Humax Sagem Samsung Sansui Sanyo Loewe Schneider Marantz Sharp Medion Siemens Metz Silva Schneider Mitsubishi Sony Mitsubishi Technisat Motorola Telefunken Tevion Neckermann Thomson Nokia Toshiba Nordmende Universum Orion Watson Whirlpool Yamaha Revox Joy S37 Audio Server Page 66... -
Page 68: Gracenote Eula
Gracenote Servers GRACENOTE SOFTWARE, or to change data categories for any GRACENOTE SERVERS, EXCEPT cause that Gracenote deems sufficient. EXPRESSLY PERMITTED HEREIN. No warranty is made that the Gracenote Revox Joy S37 Audio Server Page 67... -
Page 69: Gracenote Service
Gracenote, Inc. All Rights Reserved. Gracenote Service Music recognition technology related data are provided by Gracenote. Gracenote is the industry standard in music recognition technology related content delivery. For more information visit www.gracenote.com. Revox Joy S37 Audio Server Page 68... - Page 70 Revox Audio Server Gracenote User manual S37 audio server Revox Joy S37 Audio Server Page 69...
