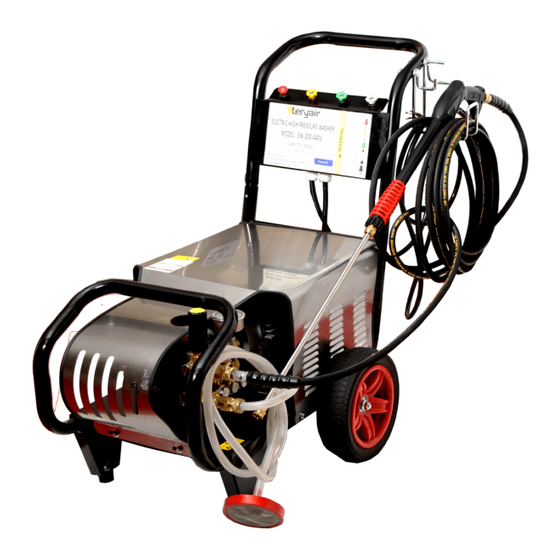

Electric High Pressure Washer, 110Bar, 110V-1ph, 2.2kW
EW 1103-220V
Electric High Pressure Washer, 110Bar, 220V-1ph, 2.2kW
EW 1106-220V
Electric High Pressure Washer, 110Bar, 220V-3ph, 2.2kW
EW 1106-440V
Electric High Pressure Washer, 110Bar, 440V-3ph, 2.2kW
EW 1706-220V
Electric High Pressure Washer, 170Bar, 220V-3ph, 4.4kW
EW 1706-440V
Electric High Pressure Washer, 170Bar, 440V-3ph, 4.4kW
EW 200-220V
Electric High Pressure Washer, 200Bar, 220V-3ph, 5.5kW
EW 200-440V
Electric High Pressure Washer, 200Bar, 440V-3ph, 5.5kW
Read this manual carefully before installing, operating or servicing this equipment. It's the responsibility
of the employer to ensure this manual is read by the operator. Please preserve this manual.
This document is issued with Product Serial No
Operation and Maintenance Guide
High Pressure Washers
Descriptions
IMPA Number
590857
590852
590853-OLD
590854-OLD
590853
590854
590855
590856
Advertisement
Table of Contents
Summary of Contents for Teryair EW 1103-110V
- Page 1 Operation and Maintenance Guide High Pressure Washers Models Descriptions IMPA Number EW 1103-110V Electric High Pressure Washer, 110Bar, 110V-1ph, 2.2kW 590857 EW 1103-220V Electric High Pressure Washer, 110Bar, 220V-1ph, 2.2kW 590852 EW 1106-220V Electric High Pressure Washer, 110Bar, 220V-3ph, 2.2kW...
-
Page 2: Table Of Contents
Operation and Maintenance Guide High Pressure Washer Series Page 2 Table of Contents Technical Data Operating and Safety Instructions Intended and Prohibitive use Un Packing Assembly & Diassembly Safety checks before and after operating the High Pressure Washer Maintenance Exploded View pf High Pr. Pump 110 Bar Exploded View pf High Pr. Pump 170 Bar / 200 Bar Repair Kit Troubleshooting List of Main Parts of High Pressure Washer 18. Warranty Card - Terms and Conditions. Product Installation and Registration FF-MM-391-REV - 01... -
Page 3: Technical Data
Operation and Maintenance Guide High Pressure Washer Series Page 3 Technical Data IMPA No. 590857 590852 590853 - Old 590854 - Old Model No. EW1103P - 110V EW1103P - 220V EW1106P-220V EW1106P-440V Single Phase, 110V, Single Phase, 2200V, Three Phase, 220V, Three Phase, 440V, Power Supply 60 Hz 60 Hz 60 Hz 60 Hz... - Page 4 Do not spray electrified equipment. Warning Caution This High Pressure Washer is not designed for use Use only genuine Teryair or Teryair approved in an explosive environment accessories Warning Medical attention Caution Personnel who sustain injuries caused by high pressure Keep the gun trigger locked when not operating.
-
Page 5: Intended And Prohibitive Use
Operation and Maintenance Guide High Pressure Washer Series Page 5 Intended and Prohibitive use Intended use Biological growth from concrete or steel constructions Hard caked mud from construction machinery like dozer tracks. Paint, dirt, mud from walls and floors Oil and grease from High Pressure Washer. Dirt, paint from sea going vessels. -
Page 6: Un Packing
Operation and Maintenance Guide High Pressure Washer Series Page 6 Un Packing Identify all the components as shown earlier, contact your supplier if any parts are missing or dam- aged. Be aware that minor visual differences may be noticed between actual motor/frame/pump and High pressure hoses because this components vary depending on the model ordered. -
Page 7: Assembly & Diassembly
Operation and Maintenance Guide High Pressure Washer Series Page 7 8. Connect other end of water inlet hose to a Assembly & Diassembly water supply source. 1. The motor and the pump are factory fitted to the Caution Trolley 2. Connect the Handle to the frame 9. - Page 8 Operation and Maintenance Guide High Pressure Washer Series Page 8 Plug (Red Colour) For Transportation Purpose Only To Replace With Breathing Cap (Shown As Above) Breathing Cap Fill lubricating oil Make Sure to fill Oil in the pump as shown below befor start. Make Sure that the fitted oil plug is removed.
- Page 9 Operation and Maintenance Guide High Pressure Washer Series Page 9 18. Types of nozzle provided as shown & can be use according to user requierment. Spray Tip detail Electric motor connection detail FF-MM-391-REV - 01...
-
Page 10: Safety Checks Before And After Operating The High Pressure Washer
500 hours of use or whenever the level Cleaning solution injection of oil has dropped or looks contaminated. • All Teryair high pressure washers have a facility of Check list before starting the High Pressure injection of Cleaning Fluids to aid in the cleaning Washer process. -
Page 11: Maintenance
Operation and Maintenance Guide High Pressure Washer Series Page 11 Warning keep distance from gun tip to job at least 8 Shutting down inches. Warning: This high pressure washer is a high powered • DO NOT turn off water source before switching off the High Pressure Washer and it is imperative that it must motor. - Page 12 Operation and Maintenance Guide High Pressure Washer Series Page 12 Dis-Assembly insrtructions for High Pre. Washer Remove the Plugs (14) & take out vale kits (15). There Open inlet adaptor (25) using spanner from inlet assem- are total 6 plugs & 6 valve kits (3nos on front side & bly (23) &...
-
Page 13: Exploded View Pf High Pr. Pump 110 Bar
Operation and Maintenance Guide High Pressure Washer Series Page 13 Exploded View pf High Pr. Pump 110 Bar Bill Of Material High Pressure Pump - EW110 Bar Illu. No. Description Qty. Illu. No. Description Qty. Pump Body Cap For Pressure Regulator PLUG (RED) with O-Ring Seal Kit (Set of 5 pcs) O- Ring for End Cover... -
Page 14: Exploded View Pf High Pr. Pump 170 Bar / 200 Bar
Operation and Maintenance Guide High Pressure Washer Series Page 14 Exploded View pf High Pr. Pump 170 Bar / 200 Bar Bill Of Material High Pressure Pump - EW170 Bar / EW200 Bar Illu. No. Description Qty. Illu. No. Description Qty. -
Page 15: Repair Kit
Operation and Maintenance Guide High Pressure Washer Series Page 15 Repair Kit EW170 Bar / Description Images EW110 Bar Qty / Assembly EW200 Bar Seal 644 97 02 642 97 42 x 3 Sets Replacement Kit Valve 644 97 03 642 97 43 x 6 Sets Replacement Kit... -
Page 16: Troubleshooting
Operation and Maintenance Guide High Pressure Washer Series Page 16 Troubleshooting Serial No Causes Remedial Action A loose connection The motor does not turn after energizing Check connections and retry Low voltage Check voltage and verify correct and re try The motor hums but does not turn Pump is stuck Service Pump see Maintenance section... -
Page 17: List Of Main Parts Of High Pressure Washer
Operation and Maintenance Guide High Pressure Washer Series Page 17 List of Main Parts of High Pressure Washer Illustration EW1103-110V EW-1103-220V EW-1106-220V EW-1106-440V Number 59.08.57 59.08.52 59.08.53-OLD 59.08.54-OLD 500mm lance 500mm lance 500mm lance 500mm lance 2.2kW-110V-1ph 2.2kW-220V-1ph 2.2kW-220V-3ph 2.2kW-440V-3ph Pe200 Pe200 Pe200... - Page 18 Operation and Maintenance Guide High Pressure Washer Series Page 18 FF-MM-391-REV - 01...
-
Page 19: Product Installation And Registration
Note :- User is requested to email this duly filled and signed product registration to our company email – service@teryair.com, within 3 days from the date of Installation and start of use, along with proof of purchase scan copy. In absence of this receipt. Warrenty start date will be assumed as date of first sales from factory. - Page 20 Operation and Maintenance Guide High Pressure Washer Series Page 20 This page is intentionally Left blank. FF-MM-391-REV - 01...
