Hinkley 980017 Installation Instructions

GENERAL INFORMATION

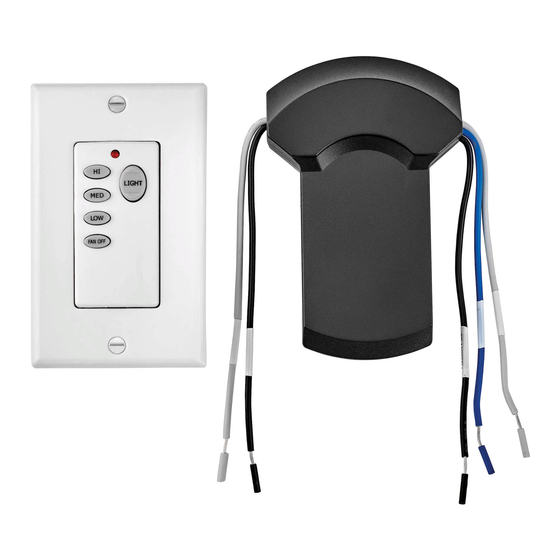

This wall control is designed to separately control your ceiling fan speed and light brightness.
The fan button will control the fan speed. (Hi, Medium, Low)
The light buttons will control the lights, brightness dimmer and off.
The red indicator on the transmitter will light when the button is pressed.

INSTALLATION AND OPERATING INSTRUCTIONS

NOTE: This unit is equipped with an automatically learned type remote control. There are no frequency switches on the receiver and
transmitter; the receiver unit will automatically scan the frequency from the handheld remote if any changes are made. This unit has 65,000
different code combinations.

1. INSTALLING RECEIVER IN THE CEILING FAN

A. Safety precautions:

WARNING: HIGH VOLTAGE! Household electrical power can cause serious injury or death. Disconnect the source of electrical power
to the ceiling fan by removing the fuse or switching off the circuit breaker.

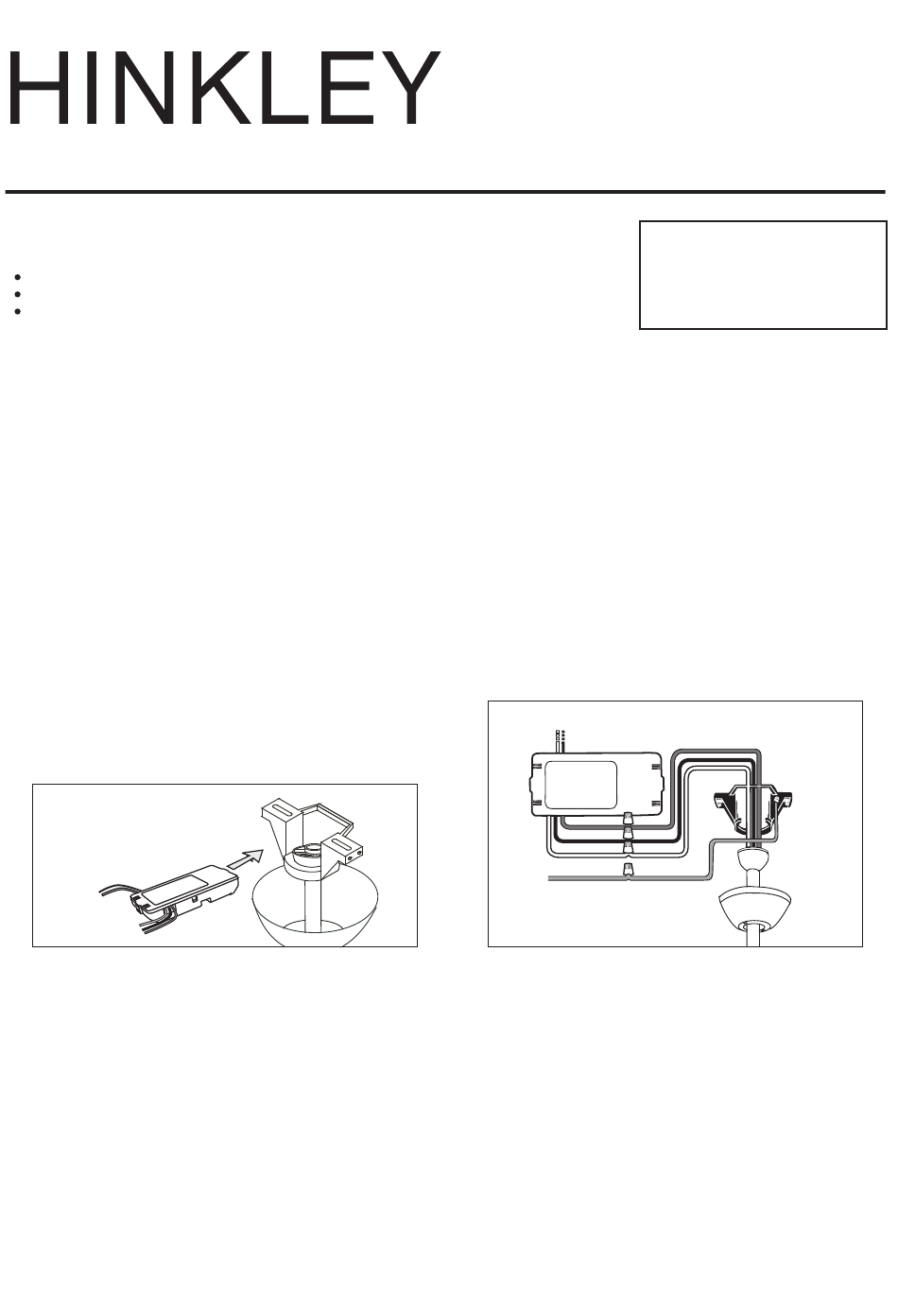

B. Installing receiver in fan.:

a. Remove the ceiling fan canopy from the mounting bracket.
b. Disconnect the existing wiring between the ceiling fan and supply at the electrical junction box.
c. Make the connections as follows, using the wire nuts supplied: (Fig. B)
CONNECT
Green fan wire...........................................Bare supply wire
Black receiver wire (AC IN L)..................Black supply wire
White receiver wire(AC IN N)..................White supply wire
White receiver wire (TO MOTOR N).......White fan wire
Black receiver wire (TO MOTOR L)........Black fan wire
Blue receiver wire(FOR LIGHT)..............Blue light wire
RECEIVER
Fig. A
If other fan or supply wires are different color, have this unit installed by a qualified electrician.
d. Push all connected wires up into junction box.
e. Reinstall the canopy on the mounting bracket.
f. Restore the electrical power.

2. INSTALLING THE WALL TRANSMITTER

WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE
TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.
a. Remove the existing wall plate and switch from the wall outlet box.
b. Make the electrical connections as shown in Fig. C. If your outlet box has a ground wire (Green or Bare Copper) connect the Transmitter's
ground wire directly to one of the screws from the outlet box . Secure all wire connections with the plastic wire nuts provided.
c. Carefully tuck the wire connections inside the outlet box. Use the screws provided to secure the wall transmitter and wall plate to the outlet
box. (Fig. D)
TO
3 SPEED FAN & LIGHT
WALL CONTROL WITH
SMART CONTROL RECEIVER
INSTALLATION INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
NOTE: When installing the remote
control, be sure your fan control or
pull chain switch are in the "HIGH
SPEED" position and the light
control or switch is set to "ON".
AC SUPPLY
WHITE BLACK
RECEIVER
BLUE BLUE
BLACK BLACK
WHITE WHITE
BARE GREEN
Fig. B
Model: 980017
