Summary of Contents for TQ MBox-R-E39
- Page 1 User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page I MBox-R/-V/-VH-E39 User's Guide MBox-R/V/VH-E39 UG 0100 2021-05-25...
-
Page 2: Table Of Contents
User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page I TABLE OF CONTENTS IMPORTANT INFORMATION ..................................1 General ........................................... 1 Symbols and Typographic Conventions .............................. 1 Before You Start ......................................1 Duty Of Care ........................................1 Limited Warranty ......................................1 Liability and Warranty Obligation ................................ - Page 3 User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page II TABLE DIRECTORY Table 1: Terms and Conventions .................................... 1 Table 2: MBox-R/-V/-VH-E39 Chassis Options ..............................5 Table 3: MBox-R/-V/-VH-E39 Standard Versions ..............................5 Table 4: TQMxE39M Module Versions ................................... 5 Table 5: Pinout Power-In Connector...................................
-
Page 4: Important Information
User's Guide or the warnings on the device. In the event of damage caused by failure to observe the information provided in this User's Guide or the warnings on the device, TQ-Systems GmbH shall not be required to honour... -
Page 5: Safety Guidelines
User's Guide and provided with the MBox-R/-V/-VH-E39, you can help protect yourself from hazards and create a safer environment. Do not attempt to service the MBox-R/-V/-VH-E39 yourself unless instructed to do so by TQ-Systems GmbH or this User's Guide. Grounding Considerations Be aware, that the chassis of the MBox-R/-V/-VH-E39 is internally connected to Digital Ground (Power Supply Connector GND). -
Page 6: About This Manual
Registered Trademarks TQ-Systems GmbH aims to adhere to copyrights of all graphics and texts used in all publications, and strives to use original or license-free graphics and texts. All brand names and trademarks mentioned in the publication, including those protected by a third party, unless specified otherwise in writing, are subjected to the specifications of the current copyright laws and the proprietary laws of the present registered proprietor without any limitation. -
Page 7: Introduction

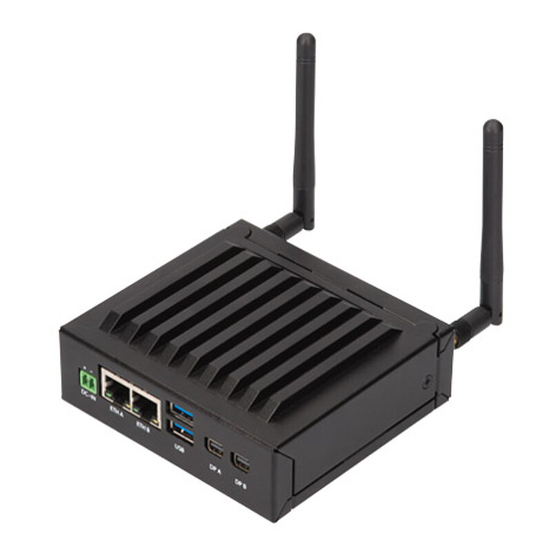

PC systems for automation, visualisation and monitoring and all applications, which place high demands on quality, durability and long-term availability. The name “MBox-R-E39” refers to the MBox with a “robust” housing. The “MBox-R” comes in one height with or without serial ports. -
Page 8: Mbox-R/-V/-Vh-E39 Versions
User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page 5 MBox-R/-V/-VH-E39 Versions Currently the MBox-R/-V/-VH-E39 is available in different configurations. The following table shows the details: Table 2: MBox-R/-V/-VH-E39 Chassis Options MBox-V MBox-VH MBox-R Table 3: MBox-R/-V/-VH-E39 Standard Versions... - Page 9 User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page 6 MBox-R/-V/-VH-E39 Versions (continued) More configurations are possible: Mass storage: • 16 / 32 / 64 / 128 / 256 / 512 Gbyte mSATA (SATA III, MLC) (Standard-Temp. 0 °C to +70 °C) •...
-
Page 10: Functional Specification
IEC/EN60950-1 LPS (sub-clause 2.5) is compulsory. TQ-Systems GmbH recommends the AC Adapter TRH70A120 from CINCON (Input 90 to 264 V AC) for applications up to +45 °C. A Power kit is available on request. At higher ambient temperatures or other environmental conditions, a suitable power supply has to be chosen. -
Page 11: Connectors And Interfaces
User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page 8 Connectors and Interfaces 4.3.1 External Connectors and Interfaces Arrangement 2 × Mini DisplayPort (Port B with DP++ support) 2 × Ethernet 2 × USB 3.0 DC-IN 9 to 30 V 2 ×... - Page 12 User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page 9 4.3.1 External Connectors and Interfaces Arrangement (continued) Status LED Power Button Reset Button Antennas Holes for SMA-connectors are not supported in standard versions unless otherwise specified. Figure 3:...
-
Page 13: Power Supply Connector
User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page 10 4.3.1.1 Power Supply Connector The MBox-R/-V/-VH-E39 supports a wide-range voltage input from 9 to 30 V DC. Power-In connector: • Connector type: Phoenix MC1,5/2-G-3,5 • Mating connector: e.g. Phoenix FMC1,5/2-ST-3,5... -
Page 14: Status Led
User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page 11 4.3.1.5 Status LED The MBox-R/-V/-VH-E39 is equipped with a Status LED (on rear side). Table 7: Status LED Conditions Status LED LED Colour Description – S5 State (System is shut down or not powered) -
Page 15: Optional External Connectors And Interfaces Arrangement
User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page 12 4.3.2 Optional External Connectors and Interfaces Arrangement 4.3.2.1 Serial Interfaces RS-232 The MBox-R/-V/-VH-E39 provides up to two serial ports: • 2 × D-Sub-9 RS-232 port (4-wire) • Legacy compatible (IO addresses and IRQs) •... -
Page 16: Mechanics
User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page 13 MECHANICS Dimensions The following illustrations show the MBox-R-E39 Figure 10: MBox-R-E39, Dimensions (mm), Front View Figure 11: MBox-R-E39, Dimensions (mm), Side View... - Page 17 User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page 14 Dimensions (continued) The full height of the housing incl. cooling fins is 40 mm. Figure 12: MBox-V-E39 (without D-Sub-9 Connectors), Dimensions (mm), Bottom View The full height of the housing incl.
-
Page 18: Mounting
User's Guide l MBox-R/V/VH-E39 UG 0100 l © 2021 TQ-Group Page 15 Mounting There are several possibilities to mount the MBox-R/-V/-VH-E39: • With an adapter plate • To a DIN rail with an optional clamp (for MBox-V-E39 and MBox-VH-E39) •... -
Page 19: Regulatory Information
WEEE AND RECYCLING WEEE TQ-Systems GmbH encourages owners to recycle their MBox-R/-V/-VH-E39 when it is not used anymore. The Waste Electrical and Electronic Equipment (WEEE) mark only applies to countries within the European Union (EU) and Norway. Appliances are labelled in accordance with European Directive 2012/19/EU concerning waste electrical and electronic equipment (WEEE). - Page 20 TQ-Systems GmbH Mühlstraße 2 l Gut Delling l 82229 Seefeld info@tq-group.com www.tq-group.com...
