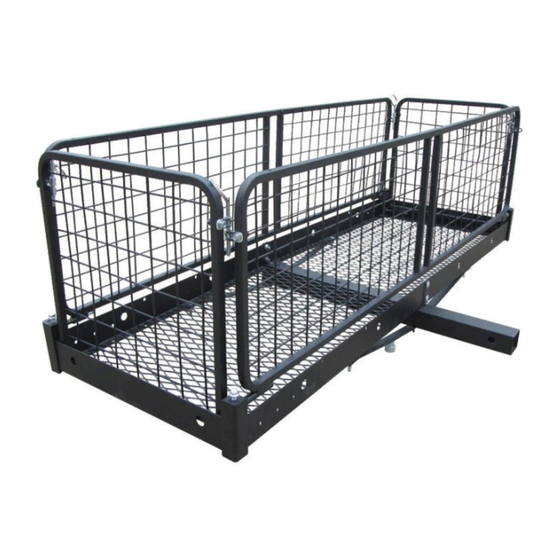

- Page 1 Item no: 07496 MANUAL 60 IN. CARGO HAULER WITH BASKET Item# 07496 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
- Page 2 Item no: 07496 TECHNICAL SPECIFICATIONS Carrier dimensions 60 in. x 20 in. x 18 in. Load Weight Capacity 500 lbs. Required Receiver Fits 2 in. receivers SAFETY WARNINGS AND PRECAUTIONS WARNING: When using product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment.
- Page 3 Item no: 07496 ASSEMBLY FOR CARGO CARRIER It is important that you read the entire manual to become familiar with the product BEFORE you assemble and use the Cargo Carrier. Before assembling and operating the Cargo Carrier, be sure that you have all parts described in the Parts List and Assembly Diagram located on the last pages of this manual.
- Page 4 Item no: 07496 FIG. 3 STEP 3 Secure both sides of the two support braces (5) to the frame (1) with 4 of M10*20 carriage bolts (3), and 4 of M10 lock nuts (4). Do not tighten fully. See Fig 3.
- Page 5 Item no: 07496 FIG. 5 STEP 6 Insert front left and right fencing (10 and 11) together, and assemble them into top holes on corner fixtures of supporting frames (1). (place fencing flat within supporting frames). See Fig. 6. FIG. 6 STEP 7 Insert back left and right fences (10 and 11) together, and assemble them into top holes on corner fixtures of supporting frames (1).
- Page 6 Item no: 07496 FIG. 7 STEP 8 Align all hinges and connecting bars on hinges then insert the ring pins (12). (The connecting corner hinges should be positioned on the inside of the fences). See Fig 7 . OPERATION WARNING: The load weight must be centered or evenly distributed across the Carrier platform.
- Page 7 Item no: 07496 PARTS DIAGRAM Part# Description Part# Description Supporting frame Tie plate Connecting piece M10*83 carriage bolt M10*20 carriage bolt Left and right side fencing M10 lock nut Front/Back Left fencing Support brace Front/Back Right fencing 50 square tube...
- Page 8 • Problems cause by parts that are not Erickson Manufacturing Ltd. parts. Limits of implied Warranty and Consequential Damage Erickson Manufacturing Ltd. disclaims any obligation to cover any loss time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY...
