MAXXTOW 70067 Instruction Manual

Instruction Manual
Model
Functions Fits 2"x 2" Receivers;;
Class III
Rise: 4" to 10"
Drop: 5" to 11"
Capacity 5,000 Lbs. Gross
Trailer Weight;;
500 Lbs. Tongue
Weight*
Hitch Pins 5/8" Diam. Steel with
R-­Shaped Safety
Clips;; Included
Hitch Ball Opening 1" Diameter;; Hitch
Ball sold separately
*Tongue Weight refers to the trailer's weight that presses down
on the trailer hitch, The total of this weight should not exceed
500 Lbs.
Too much tongue weight can lower the tow vehicle in back, result-­
ing in traction, steering and braking problems.
Too little tongue weight can reduce rear wheel traction, resulting
For proper handling, tongue weight should be under 10% of the
Gross Trailer Weight (GTW).
cations table.
Do not exceed the rating of the lowest rated component in the
vehicle/trailer towing set-­up.
Read and understand this entire manual before installing and
using this product.
Copyright 2012 by MAXXTOW. A ll rights reserved. No portion of this manual or any artwork contained
c
herein may be reproduced in any shape or form without the express written consent of MAXXTOW. Due
to continuing improvements, actual product may differ slightly from the product described herein. Tools
required for assembly and maintenance may not be included.
70067 70068
Fits 2"x 2" Receivers;;
Class III
Rise: 1-­3/4" to 6-­1/4"
Drop: 3" to 7-­1/2"
5,000 Lbs. Gross
Trailer Weight;;
500 Lbs. Tongue
Weight*
5/8" Diam. Steel with
R-­Shaped Safety
Clips;; Included
1" Diameter;; Hitch
Ball sold separately
WARNING

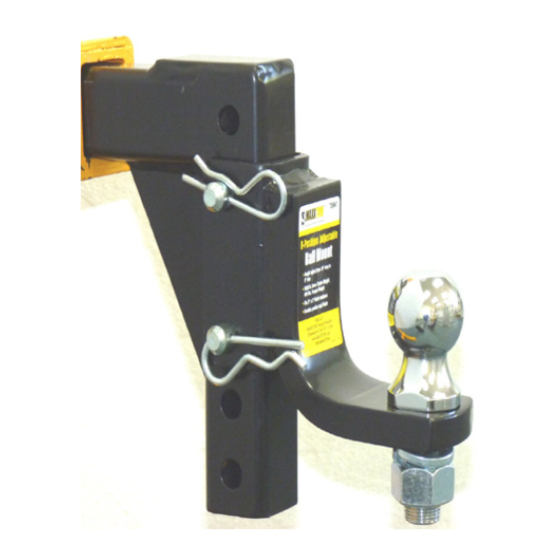

Adjustable
Ball Mount
Model 70067
Adjustable
Ball Mount
Model 70068
-­
Hitch Balls shown above -­ sold separately
SAVE THIS MANUAL
