PERFORMANCE
CAPACITY................................210, 000 BTU/HR / 59,920 KCAL/HR
CONTINUOUS OPERATION BEFORE REFUEL ........... 7.5 HOURS
TEMPERATURE LIMIT ............. OPEN @ 140°F - CLOSED @180°F
HEATED AIR ....................................................................... 1930 CFM
COMBUSTION SMOKE/BACHARACH SCALE ...#1 OR #2 SMOKE
CARBON MONOXIDE ALLOWED .......................................... 0.01%
GENERAL
WEIGHT (DRY) ........................................................ 215 LBS / 98 KG

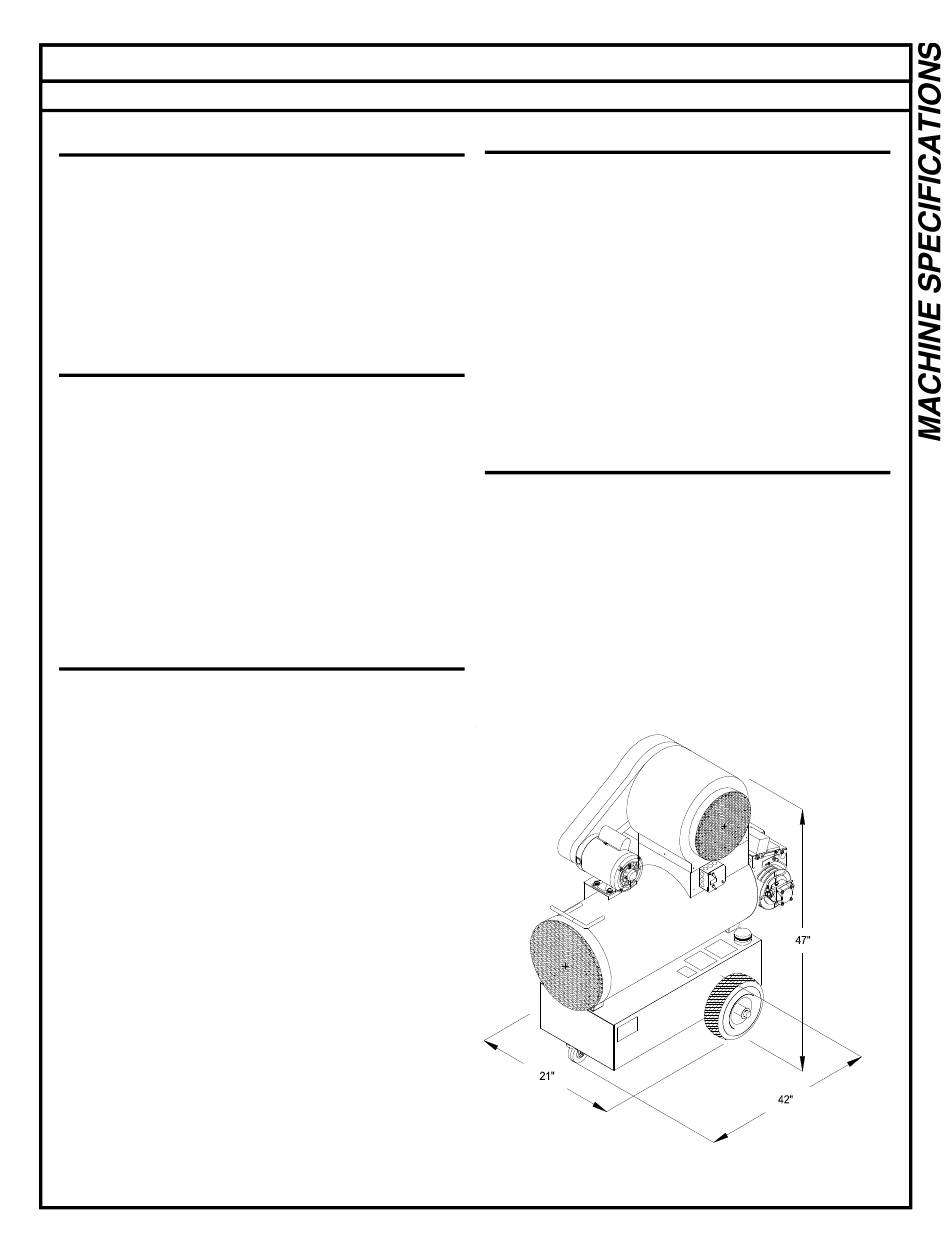

DIMESIONS .................................................... L 42" X W 21" X H 47"
FUEL TANK CAPACITY .............................15 GALLON / 57 LITERS
COMBUSTION CHAMBER ................................ STAINLESS STEEL
FUEL FILTER ELEMENT................................... P/N V04-0000305-01
TIRE & RIM ...............................................................P/N G02-00018A
PULLEY, FAN ..............................................................P/N R03-00280
BELT, FAN .................................................................. P/N R02-00044
FAN ............................................................................. P/N Z01-00110
ELECTRICAL
VOLTAGE .................................................................. 115V 1PH 60HZ
HIGH LIMIT SWITCH .................................................. P/N F04-00862
TOGGLE SWITCH - 20AMP ...................................... P/N F04-00699
POWER CORDSET ..................................................... P/N F04-00110
THERMOSTAT ............................................................ P/N F04-00831
CONTROL, HIGH LIMIT ...............................................P/N F04-00832
CURRENT ............................................................................. 28 AMPS
Supersedes 12-03-03 Z08-02953
MODEL 210 SPACE HEATER

SPECIFICATIONS

BURNER
NAME BRAND ........................................................... WAYNE HOME
BURNER ............................................................... P/N V00-173127
BURNER TYPE......................................... PRESSURE ATOMIZING
FUEL TYPE.....................................KEROSENE, #1 OR #2 DIESEL
FUEL PRESSURE...................................................120 PSI / 8 BAR
FUEL NOZZLE................(1.50 90DA DEGREE A) P/N V1.50 90DA
FUEL CONSUMPTION............................... 1.68 GPHR / 6.36 LPHR
FUEL PUMP...................................(DAN FOSS) P/N V-100714-001
MOTOR HORSEPOWER.........................................................1/7 HP
MOTOR SPEED.................................................................3450 RPM
FAN MOTOR
MOTOR VOLTAGE .............................................. 115V 1PH 50/60HZ
MOTOR ........................................................................ P/N F02-00035
MOTOR PULLEY ................................................... P/N R03-00049
MOTOR SPEED .................................................................. 1530 RPM
CURRENT .................................................................. 115V 60HZ 1PH
10-25-05 Z08-02953

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 210 and is the answer not in the manual?

Questions and answers

Summary of Contents for ALKOTA 210

  • Page 1 MODEL 210 SPACE HEATER SPECIFICATIONS BURNER PERFORMANCE NAME BRAND ............WAYNE HOME CAPACITY........210, 000 BTU/HR / 59,920 KCAL/HR BURNER ............... P/N V00-173127 CONTINUOUS OPERATION BEFORE REFUEL ... 7.5 HOURS BURNER TYPE......... PRESSURE ATOMIZING TEMPERATURE LIMIT ..... OPEN @ 140°F - CLOSED @180°F FUEL TYPE........KEROSENE, #1 OR #2 DIESEL...
  • Page 2 SAFETY, INSTALLATION, AND OPERATION SPACE HEATER GENERAL SAFETY MACHINE UNPACKING 1. Before operating this machine, read and ALL CLEANERS ARE CAREFULLY INSPECTED observe all safety, unpacking, and operating AND CARTONED TO PROTECT AGAINST instructions. Failure to comply with these SHIPPING DAMAGE. IF THERE IS DAMAGE OR instructions could create a hazardous MISSING PARTS, THE TRANSPORTATION situation.
  • Page 3 DANGER: CARBON FUEL SAFETY MONOXIDE HAZARD DANGER: To avoid possible injury, fire, or explosion, please read and follow these instructions. 1. Use only Kerosene, #1 or #2 fuel oil, or #1 WARNING: This machine emits carbon Diesel. The use of incorrect fuel may result in monoxide, a deadly gas, and must be vented fire or explosion and severe injury to the if used in an enclosed area.
  • Page 4 the outer covering. Do not abuse extension cord and do not yank on any cord to disconnect. INSTALLATION Keep cord away from heat and sharp edges. Always disconnect the extension cord from the receptacle before disconnecting the product from the extension cord. 1.
  • Page 5 As viscosity increases, the thicker oil can cause 3. BELT (if so equipped): Make sure belt tension delayed ignition, poor spray patterns, and condition specified rumbling fires. As moisture will quickly MAINTENANCE. destroy fuel pumps, make certain that tank openings are secure and moisture cannot FUEL FILTER: Inspect fuel filter for enter.
  • Page 6 CAUTION: Do not run the machine with the FILTER, FUEL: burner switch in the on position when the If contaminants are present see FUEL fuel tank is empty. This will cause damage to the fuel pump and void warranty. FILTER insert. Select temperature (if so equipped) Remove and Replace fuel filter per FUEL Turn the burner switch to the on position.
  • Page 7 OIL BURNER MAINTENANCE OIL FIRED CLEANERS DANFOSS PUMP AIR BAND ADJUSTMENT Shut off fuel supply. NOTE: The air band adjustment on this burner Loosen the 2 screws with 7/64 allen wrench has been preset at the factory (elevation one turn. approximately 1400 feet).
  • Page 8 OIL BURNER MAINTENANCE OIL FIRED CLEANERS BUSS BAR ALIGNMENT 7. Partially close transformer. Check if buss bars align and contact the transformer electrodes. 1. With burner off, loosen screw and swing the If buss bars do not contact, see Buss Bar transformer away from burner gun assembly.
  • Page 9 OIL FIRED BURNER TROUBLESHOOTING TROUBLE POSSIBLE CAUSE REMEDY 1. Burner will not A. Electrodes out of alignment. A. See "ADJUSTING ELECTRODE ASSEMBLY" in BURNER ignite. M A INTENANCE SECTION. B. Electrode insulator failure. B. Remove and replace if there are breaks, cracks, or spark trails.
  • Page 10 OIL BURNER TROUBLESHOOTING TROUBLE POSSIBLE CAUSE REMEDY 4. Pulsating pressure A. Partially clogged fuel pump A. Remove and replace strainer per FUEL PUMP FILTER in OIL BURNER strainer or filter. MAINTNANCE Section. B. Air leaking around fuel pump B. Check fuel pump cover screws for cover.
  • Page 17 MAXIMUM FLOW.......60 GPH / 230 LPH MAXIMUM FILTRATION.......25 MICRONS MAXIMUM TEMPERATURE....212°F / 100°C WEIGHT.........12 OZ / 340 GM MAXIMUM PRESSURE....100 PSI / 7 BAR INLET AND OUTLET PORT SIZE....1/4 NPT 1. Fuel leaking around A. Rough stem A. Remove and replace valve assembly valve stem B.
  • Page 18 1. Close valve (ITEM 1) by turning clockwise. 2. Loosen star nut while supporting bowl and swing retainer (ITEM 10) to the side freeing bowl and its components. 3. Remove element (ITEM 6) and clean by using a soft brush and naphtha or clean fuel. 4.
