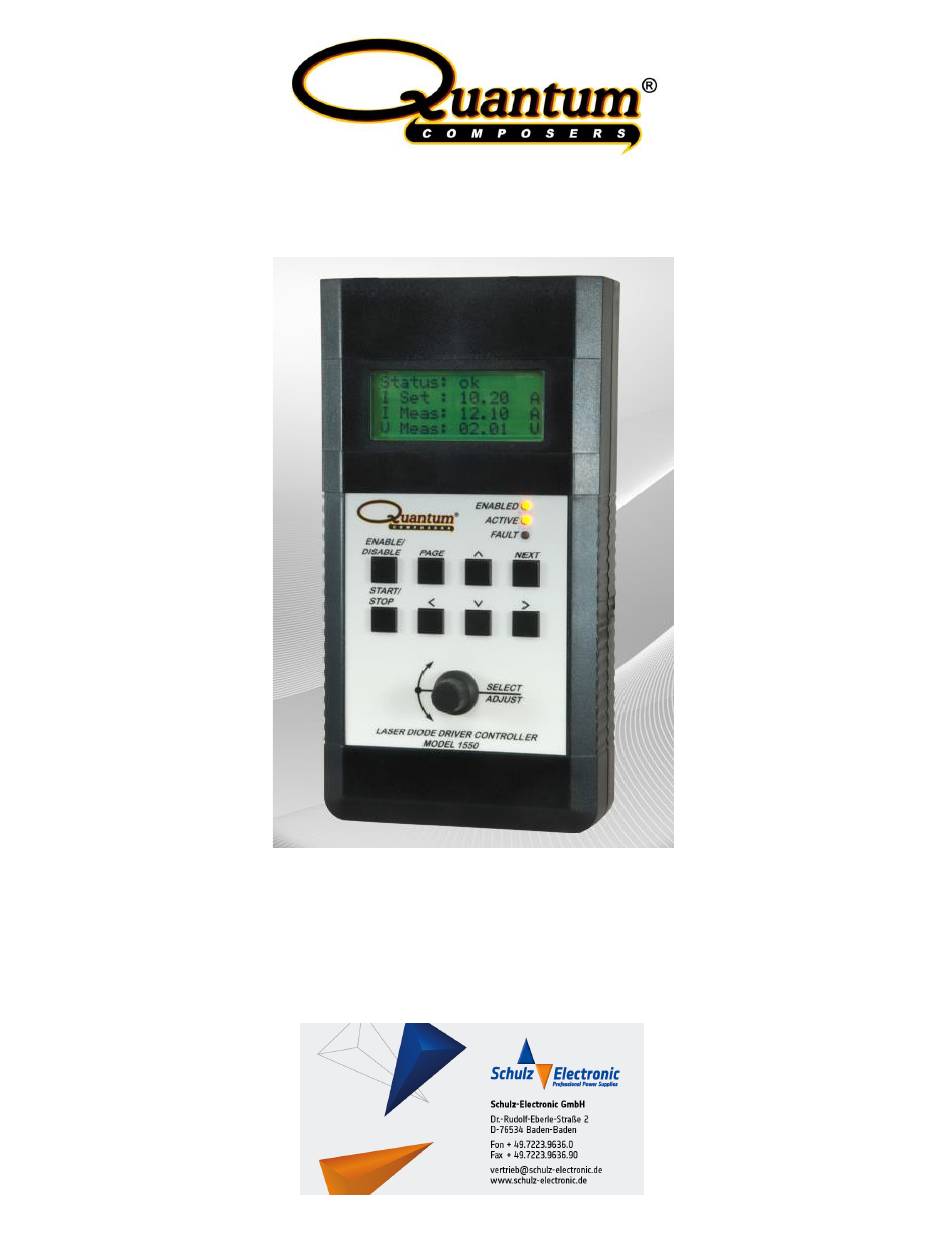

- Page 1 LDDC 1550/LSC 1650 Operators Manual Version 2.8 Quantum Composers, Inc. 212 Discovery Drive Bozeman, MT 59718 Your distributor: 1-1 | P a g e...
-
Page 2: Table Of Contents
Table of Contents 1 Introduction ..........................1-4 2 Setup ............................2-4 Power ............................2-4 Driver Connection ........................2-5 LSC Connections........................2-5 Communication ........................2-5 USB ............................2-5 3 User Controls ..........................3-7 4 Display/Indicators ........................4-8 5 Menu Information ........................5-8 Verification Page ........................ - Page 3 10 Analog Measurement ......................10-26 11 Laser System Controller Model 1650 Features ..............11-26 Q-Switch Trigger........................11-26 Sync Output .......................... 11-26 External Trigger ........................11-26 Thermistor Inputs ......................... 11-27 Photodiode Input ........................11-27 Spare Analog Input....................... 11-27 Spare Analog Output ......................11-27 Spare Inputs ..........................
-
Page 4: Introduction
1 Introduction The Quantum Composers Laser Diode Driver Controller (LDDC) and Laser System Controller (LSC) provide a means of controlling various types of laser diode driver supplies. It allows the ability to easily control current levels, pulse modes, and interlock controls as well as monitor voltage and current levels from the driver. -
Page 5: Driver Connection
Driver I/O connector pins 13 and 14, it is required that the current be limited to less than 8A by means of fusing it at 5A. If an external power supply is chosen to be used, it is recommended that the mains outlet be easily accessible so that the plug of the external power supply can be easily removed. - Page 6 5. A message window will launch asking if you want to continue installing this driver. Select the “Continue Anyway” button. 6. It should now indicate the it is installing a driver for a “LDDC USB Communications Port”. 7. A message should then indicate that the drivers have been successfully installed. 8.
-
Page 7: User Controls
3 User Controls Figure 3 (User Controls) The main user controls consist of: • Enable/Disable. This button is used to initially enable the driver. On supplies that have both an enable and a pulse control signal, this will activate the enable signal. On units that do not have pulse control, this will enable the activation of the enable control signal via the start/stop button. -
Page 8: Display/Indicators
4 Display/Indicators The following are used for user indicators and information: • A 4 line x 16 character LCD backlit display. This display will show various information depending on the active screen. • 3 indicator LEDs. An Enabled indicator (Blue) shows when the unit is in an enabled state, ready to fire or start pulsing the supply. -
Page 9: Pulse Mode Page
Line 1: Status indicator line that will show the system status, which would include any interlock faults, enabled and actively running. The different status items displayed are: • Disabled. Neither the enable state or the fire state is active. The unit is in a disabled state. •... -
Page 10: Q-Switch, External Trigger And Sync Page (Lsc 1650 Only)
Line 3: Width. This sets the pulse width (in seconds) of the triggering pulse to the driver when in pulsed, burst or single shot mode. The width adjustment will be limited to a maximum of roughly 90% of the rate period. Line 4: Count. -
Page 11: Interlock Status Information Page
• Gate Active Low. The unit will start running as long as a low level (0V) is present on at the external trigge input. Line 4: Sync Ouptut. The sync output is a TTL signal that can be synchronized to the pulse control signal, q-sw trigger or a combination of both. -
Page 12: System Setup Page #2
The first system setup page allows you to select the type of driver you have and adjust the expected compliance voltage and current ranges from the driver the LDDC/LSC is controlling. Please refer to your specific diode driver data sheet for these values. Line 1: Indication of System Setup #1 page. -
Page 13: System Setup Page #3
System Setup Page #3 S e t u p T e m p F a u l t I n t l k C n t r l : The system setup page #3 allows you to setup interlock default states. Please refer to the diode driver data sheet for the specific interlock options. -
Page 14: Save/Recall Settings Page
Save/Recall Settings Page S a v e / R e c a l l S t o r a g e B i n : S a v e / R e c a l l : R c l E x e c u t e : <... -
Page 15: Driver I/O Connection
6 Driver I/O Connection The main interface connection to the diode driver supply utilizes a standard 15 pin D-Sub male type connector. Number Name Type Description Range 1 Enable Output TTL output to enable diode 0V = Off driver output section 5V = On 2 Status Input... -
Page 16: Lsc 1650 Connections
7 LSC 1650 Connections The LSC 1650 has additional connections for the q-switch trigger and sync outputs, the external trigger input, and extra I/O signals. The signal pin outs are as follows: Q-Switch Trigger Output (SMA Connector) Number Name Type Description Range Trigger Output... -
Page 17: Command Set
Ground Signal Ground External Input External trigger input 2 to 20VDC Trigger Ground Signal Ground ThermistorA+ Input NTC/PTC thermistor input(+) 5K to 100K (typ) ThermistorA- Input NTC/PTC thermistor input(-) 5K to 100K (typ) Photodiode Input Photodiode anode input Photoconductive mode Anode Photodiode Input... -
Page 18: Device Addresses
2 ASCII characters. Each device has a unique address which is Address programmed into its firmware. See the table below for a list of addresses. Single colon character “:”, must follow device address. Deliminator Command Commands are specific to each device -- see the following sections for String the commands that each device supports. -
Page 19: Lddc/Lsc Command Summary
LDDC/LSC Command Summary Address Command Parameter Query Response Description Diode Controller address which is required before any/all subsequent commands. Sets and/or queries the burst count 1 - 65535 1-65535 feature. Query Only. Returns the Crowbar 0 = Open :CB? status. In some cases this will be the 1 = Closed state of the Poor Load Match. -
Page 20: Notes
Sets and/or queries the Maximum 1 - 999 1 - 999 Current (Refer to Diode Driver section) Sets and/or queries the system's 200ns - 10 200ns - 10 Maximum Width. Sets and/or queries the system's 1 - 100000 1 - 100000 Maximum Rate. -
Page 21: Lsc 1650 Specific Command Summary
-In Single Shot and Pulsed Mode, the maximum allowable Duty Cycle percentage is: ��. ������������(��) ������ �������� ���������� = [�� − ] ∗ ������ (������������ & ������������ ��������) ������������(��) LSC 1650 Specific Command Summary Address Command Parameter Response Description Diode Controller address which is required before any/all subsequent commands. - Page 22 Q-Switch delay setting. +/-0 to 0.0061 +/-0 to 0.0061 +/-6.1ms. 8-22 | P a g e...
-
Page 23: System State Return
Q-switch trigger enable. 0 or 1 0 or 1 0 = disable, 1 = enable. 0 - Disabled 0 - Disabled 1 - Pulse Control 1 - Pulse Control 2 - Q-switch 2 - Q-switch Sync output setting. 3 - Pulse Control/Q- 3 - Pulse Control/Q- Switch Switch... - Page 24 or 14, no other power supply is needed. If no auxiliary power can be provided, an external +15VDC (200mA) supply may be used. Turn on the LDDC/LSC, press any key, and take note of the LDDC/LSC main screen which states what the maximum current output is set to. Ensure that this maximum current value does not exceed that of the Diode Driver or the laser diode.
-
Page 25: Remote Operation Using Software Gui
Remote Operation Using Software GUI The included software application allows simple control of the LDDC/LSC unit via the USB communications port. The software is included on the CD. To run the software, just double click on the application. No installation is required. The software can also be copied to your computer and run from any location. -
Page 26: Analog Measurement
• The information screen will display the manufacture, model number, serial number and firmware version. • To directly send terminal commands to the LDDC/LSC, they can be entered in the command terminal send field. The responses from the unit will be displayed in the response window. -
Page 27: Thermistor Inputs
get one pulse control signal for every rising (or falling) edge that the unit receives. This is the most common mode of operation. If you are in burst mode, then the burst sequence will start. If in pulsed mode, then the unit will begin pulsing once an external edge is received. If stop is selected any ongoing sequence will be stopped. -
Page 28: Standard Specifications
12 Standard Specifications These specifications are common to both the LDDC and the LSC units. Specifications only relevant to the LSC unit are shown after the common specifications: • Indoor use in dry conditions only • Ordinary Protection: This product is NOT protected against harmful ingress of moisture. •... - Page 29 Input Impedance KOhms Digital Control Output Range High-Level Output Output Impedance Ohms Max Current = 5V) Analog Measurement Range 0.01 Resolution mVDC Input Impedance KOhms Analog Control Range Output Resolution 2.45 mVDC Output Impedance Ohms High-Level Output (Load ≥ 5K Ohms) = 2.5V) 2.48 = 5V)
-
Page 30: Lsc 1650 Specifications
13 LSC 1650 Specifications UNIT I/O Configuration 20 Pin IDC for I/O and SMA for Q-sw, sync and ext. trigger Q-switch Trigger Modes Enabled/Disabled Delay Range (from falling edge of pulse control) *Total delay time of -6.1 +6.1 12.2ms available with respect to Pulse Control’s rising edge. - Page 31 External Trigger Modes Start, Stop, Start/Stop, Rising/Falling Gate AH, Gate AL Input levels Insertion delay Insertion Jitter ns peak Rate 100K Digital Inputs Range Input Impedance KOhms Digital Outputs Range V (TTL) High-Level Output Output Impedance Ohms Max Current = 5V) Analog Inputs Range Resolution...
- Page 32 Photo Diode Range Resolution 10 bit Thermistor (A & B) Range 100K ohms Resolution 10 bit 13-32 | P a g e...
-
Page 33: Safety Symbols
Safety Symbols This section provides a description of the safety marking symbols that appear on the instrument. These symbols provide information about potentially dangerous situations which can result in death, injury, or damage to the instrument and other components. Symbols Publications;... - Page 34 IEC 417, No. 5172 Equipment protected by double insulation or reinforced insulation (equivalent to Class II if IEC 60536). ISO 3864, No. B.3.1 Background colour - yellow; symbol and outline – black Caution - (refer to accompanying documents) used to direct the user to the instruction manual where it is necessary to follow certain specified instructions where safety is involved.
-
Page 35: Appendix B - Lumina Power Driver Connections
The LDDC/LSC can be interfaced to many of the Lumina Power brand laser diode drivers. Quantum Composers offers optional cables that can be purchased to interface to these diode drivers. Below is a table showing the types of cables that can be used to interface with the drivers. - Page 36 LDQPC 300002-223 (non-shielded) The LDDC/LSC must be powered from the 300002-229 (shielded) external wall mount supply. XLB-650 300002-225 The LDDC/LSC may be powered directly XLB-1000 from the XLB. The Lamp Status signal is XLB-1500 not currently monitored by the XLB-3000 LDDC/LSC.
-
Page 37: Appendix C 1550-Lddc-Oem Option
Appendix C 1550-LDDC-OEM Option Figure 4 The 1550-LDDC OEM provides a solution for integrating the LDDC inside a users’ system when the only control methods required is via USB or RS-232. The OEM LDDC provides an additional RS232 port for communications. All the same functions are available as a standard LDDC unit, minus the display and keypad. - Page 38 Figure 6 38 | P a g e...
-
Page 39: Appendix D Ce Declaration Of Conformity
Appendix D CE Declaration of Conformity 39 | P a g e...
