Related Manuals for Infineon TRAVEO II
Summary of Contents for Infineon TRAVEO II
- Page 1 The document following this cover page is marked as “Cypress” document as this is the company that originally developed the product. Please note that Infineon will continue to offer the product to new and existing customers as part of the Infineon product portfolio.

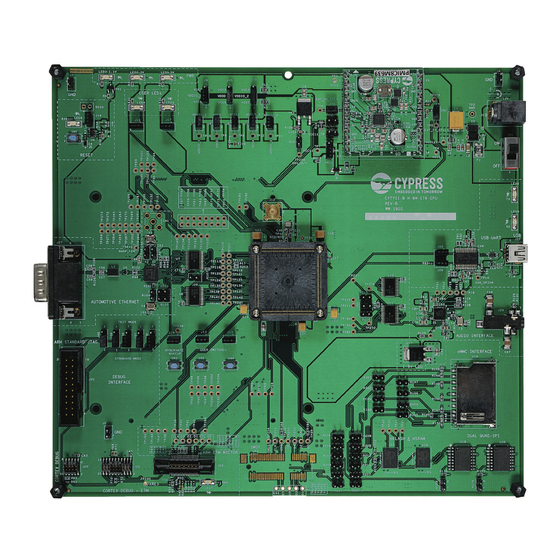

- Page 2 CYTVII-B-H-176-SO QUICK START GUIDE TRAVEO II CPU BOARD Kit Contents: 1. Traveo II CPU Board CYTVII-B-H-176-SO 2. Type-B Mini USB Cable 3. 12V AC-DC Universal Power Adapter 4. Quick Start Guide (this document)
- Page 3 CYTVII-B-H-176-SO QUICK START GUIDE TRAVEO II CPU BOARD • • Ensure that jumpers J7, J6, J5, J11, J9, J41, J42 are Insert the Traveo-II Device into IC Socket (U3), align inserted. Ensure that Jumpers J8, J45, J10 are in Pin 1 with the arrow mark near C21 and close the 1-2 position and J46 is in 2-3 position.
- Page 4 TRAVEO II CPU BOARD Instructions: • The Traveo II CPU Board can be used standalone to evaluate limited features of the Traveo II MCU • The board can be used with Body Controller Base Board, to evaluate all the features of the MCU •...
- Page 5 CYTVII-B-H-176-SO QUICK START GUIDE TRAVEO II CPU BOARD Traveo II CPU Board Details 13 14 1. MCU Reset Controller Jumper - J18 18. 64Mb HyperRAM Self-Refresh DRAM 2. MCU Reset LED – LED6 19. Quad SPI 256Mb Flash Memory 3. MCU Reset Button - SW5 20.
