Summary of Contents for Caen ELS FMC-4SFP+

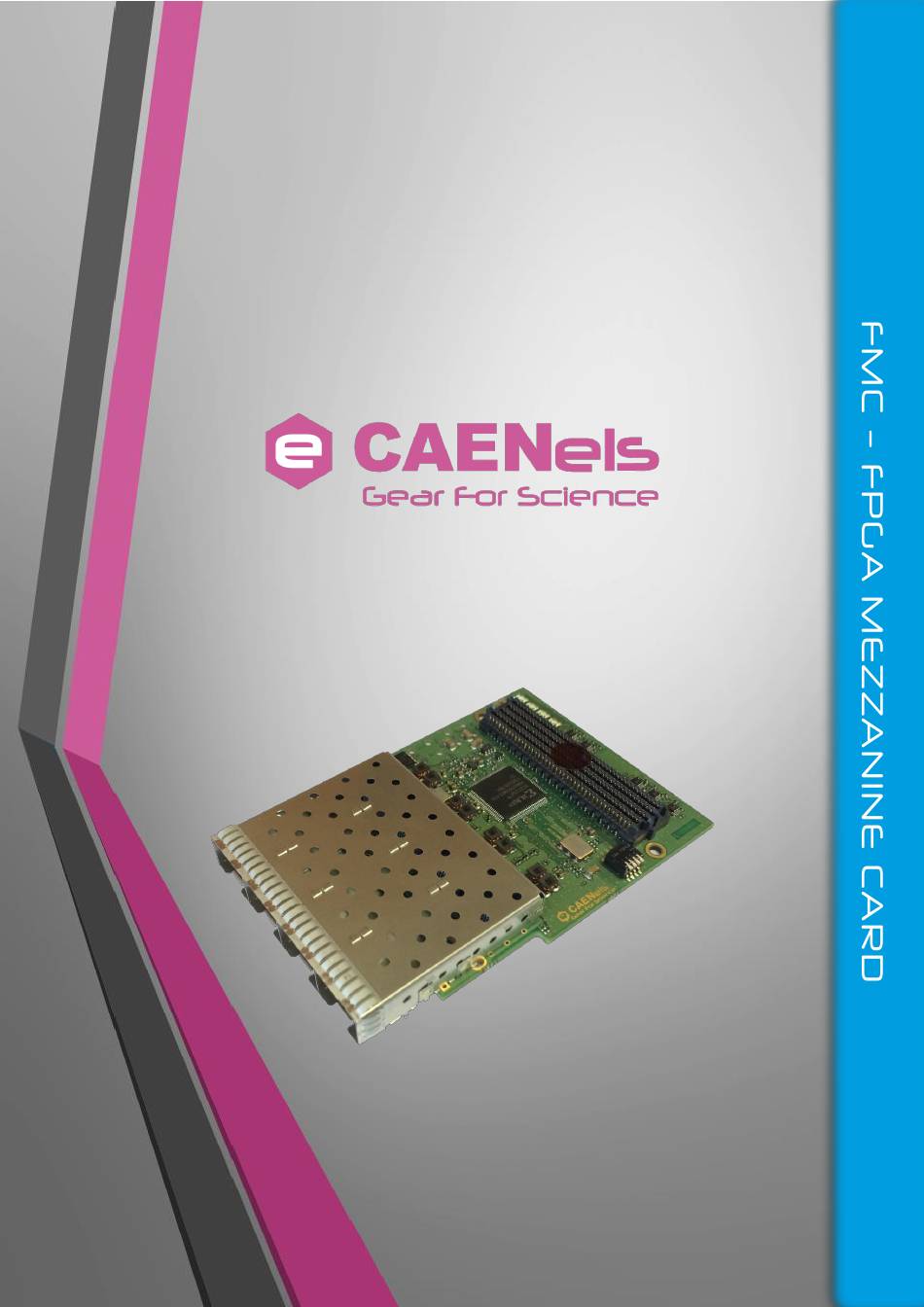

- Page 1 FMC-4SFP+ Dual- and Quad-channel SFP/SFP+ FMC Adapter Pin Assignments All Rights Reserved © CAEN ELS s.r.l. Rev. 1.2 – October 2017...
- Page 2 FMC-4SFP+ - User’s Manual...
- Page 3 FMC-4SFP+ - User’s Manual For technical assistance please refer to the following contact:...
-
Page 4: Table Of Contents
FMC-4SFP+ - User’s Manual Table Of Contents INTRODUCTION ....................9 FMC-SFP O ..................9 VERVIEW ..................10 CONNECTIONS 1.2.1 ROW A ..................... 10 1.2.1 ROW B ..................... 11 1.2.1 ROW C ..................... 11 1.2.1 ROW D ..................... 12 1.2.1 ROW E ..................... 13 1.2.1 ROW F ..................... - Page 5 FMC-4SFP+ - User’s Manual Document Revisions Document Revision Date Comment November 5 , 2015 First Release April 1 , 2016 Corrected VADJ range October 27 , 2017 Format changed...
- Page 6 User's Manual before any kind of operation. CAEN ELS s.r.l. reserves the right to change partially or entirely the contents of this Manual at any time and without giving any notice. Disposal of the Product The product must never be dumped in the Municipal Waste.
- Page 7 FMC-4SFP+ - User’s Manual Read over the instruction manual carefully before using the instrument. The following precautions should be strictly observed before using the device: • Do not use this product in any manner not WARNING specified by the manufacturer. The protective features of this product may be impaired if it is used in a manner not specified in this manual.
- Page 8 FMC-4SFP+ - User’s Manual The following table shows the general environmental requirements for a correct operation of the instrument: Environmental Conditions Requirements Operating Temperature 0°C to 50°C Operating Humidity 30% to 85% RH (non-condensing) Storage Temperature -10°C to 60°C Storage Humidity 5% to 90% RH (non-condensing)
-
Page 9: Introduction
CAEN ELS FMC-SFP mezzanine cards. 1.1 FMC-SFP Overview The CAEN ELS FMC-SFP is a standard FPGA Mezzanine Card (FMC) Low Pin Count (LPC) daughter board that allows to communicate up to 4 high speed hot- swappable SFP+ devices. The board is available in two different versions: •... -
Page 10: Fmc Connections
FMC-4SFP+ - User’s Manual 1.2 FMC connections In the following sections are described all the FMC connection with the FMC-SFP board. 1.2.1 ROW A All FMC ROW A GND pins are connected to ground and are not listed in the following table. Pin # Pin Name Connectivity... -
Page 11: Row B
FMC-4SFP+ - User’s Manual 1.2.1 ROW B All FMC ROW B GND pins are connected to ground and the other pins are left unconnected. 1.2.1 ROW C All FMC ROW C GND pins are connected to ground and are not listed in the following table. Pin # Pin Name Connectivity... -
Page 12: Row D
FMC-4SFP+ - User’s Manual 1.2.1 ROW D All FMC ROW D GND pins are connected to ground and are not listed in the following table. Pin # Pin Name Connectivity IO Standard Remark PG_C2M Connected to on-board logic Do not use Frequency according to dip switches GBTCLK0_M2C_P Si570 Oscillator Output... -
Page 13: Row E
FMC-4SFP+ - User’s Manual Pin # Pin Name Connectivity IO Standard Remark +3V3 Board Power Supply +3V3 Board Power Supply +3V3 Board Power Supply Table 3: FMC Row D connections; (*) available only in 4-channel version 1.2.1 ROW E All FMC ROW E GND pins are connected to ground and the other pins are left unconnected, except the PIN E39 (see the following table). Pin # Pin Name Connectivity... - Page 14 FMC-4SFP+ - User’s Manual Pin # Pin Name Connectivity IO Standard Remark LA03_P TXFAULT Module 2 LVCMOS (VADJ) FMC output LA03_N TXFAULT Module 1 LVCMOS (VADJ) FMC output LA08_P TXDISABLE Module 4 LVCMOS (VADJ) FMC input (*) LA08_N TXDISABLE Module 3 LVCMOS (VADJ) FMC input (*) LA12_P...
-
Page 15: Row H
FMC-4SFP+ - User’s Manual 1.2.1 ROW H All FMC ROW H GND pins are connected to ground and are not listed in the following table. Pin # Pin Name Connectivity IO Standard Remark VREF_A_M2C Not Connected PRSNT_M2C# CLK0_M2C_P Not Connected CLK0_M2C_N Not Connected LA02_P... -
Page 16: Row J
FMC-4SFP+ - User’s Manual Pin # Pin Name Connectivity IO Standard Remark VADJ IO Pins Power Supply Table 7: FMC Row H connections; (*) available only in 4-channel version 1.2.1 ROW J All FMC ROW J GND pins are connected to ground and the other pins are left unconnected. 1.2.1 ROW K All FMC ROW K GND pins are connected to ground and the other pins are left unconnected. -
Page 17: Clock Generation
FMC-4SFP+ - User’s Manual 2. Clock Generation The CAEN ELS FMC-SFP mounts also a Clock Generator Chip Silicon Labs SI570 (570BBC000121DG), which allows to generate random low-jitter clock at any frequency ranging from 10 MHz to 280 MHz. At power-up of the board, the SI570 chip generates a frequency according to the configuration of DIP Switches. -
Page 18: Ordering Options
FMC-4SFP+ - User’s Manual 3. Ordering Options The FMC-SFP+ board is available in two main different versions, differing by the number of SFP channels: FMC-4SFP+: Quad-channel SFP/SPF+ FMC Adapter FMC-2SFP+: Dual-channel SFP/SPF+ FMC Adapter NOTE: fields/characters shaded in grey color are fixed. Table 9: Ordering Options... -
Page 19: Technical Specifications
FMC-4SFP+ - User’s Manual 4. Technical Specifications Technical Specifications of the FMC-SFP+ boards are herein presented. FMC-SFP+ Technical Specifications Board Type FPGA Mezzanine Card - FMC VITA 57.1 FMC Connector Type LPC (HPC compliant) 2 on FMC-2SFP+ Number of SFP+ Channels 4 on FMC-4SFP+ 1.5 V –...
