INSTALLATION MANUAL
Power adapter USB output
A
Mini USB to USB lead
B
3.5mm to RCA audio lead
C

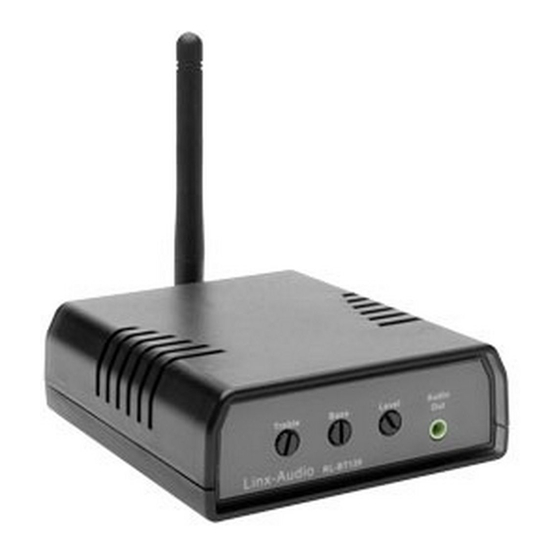

Professional Bluetooth Audio Receiver
D

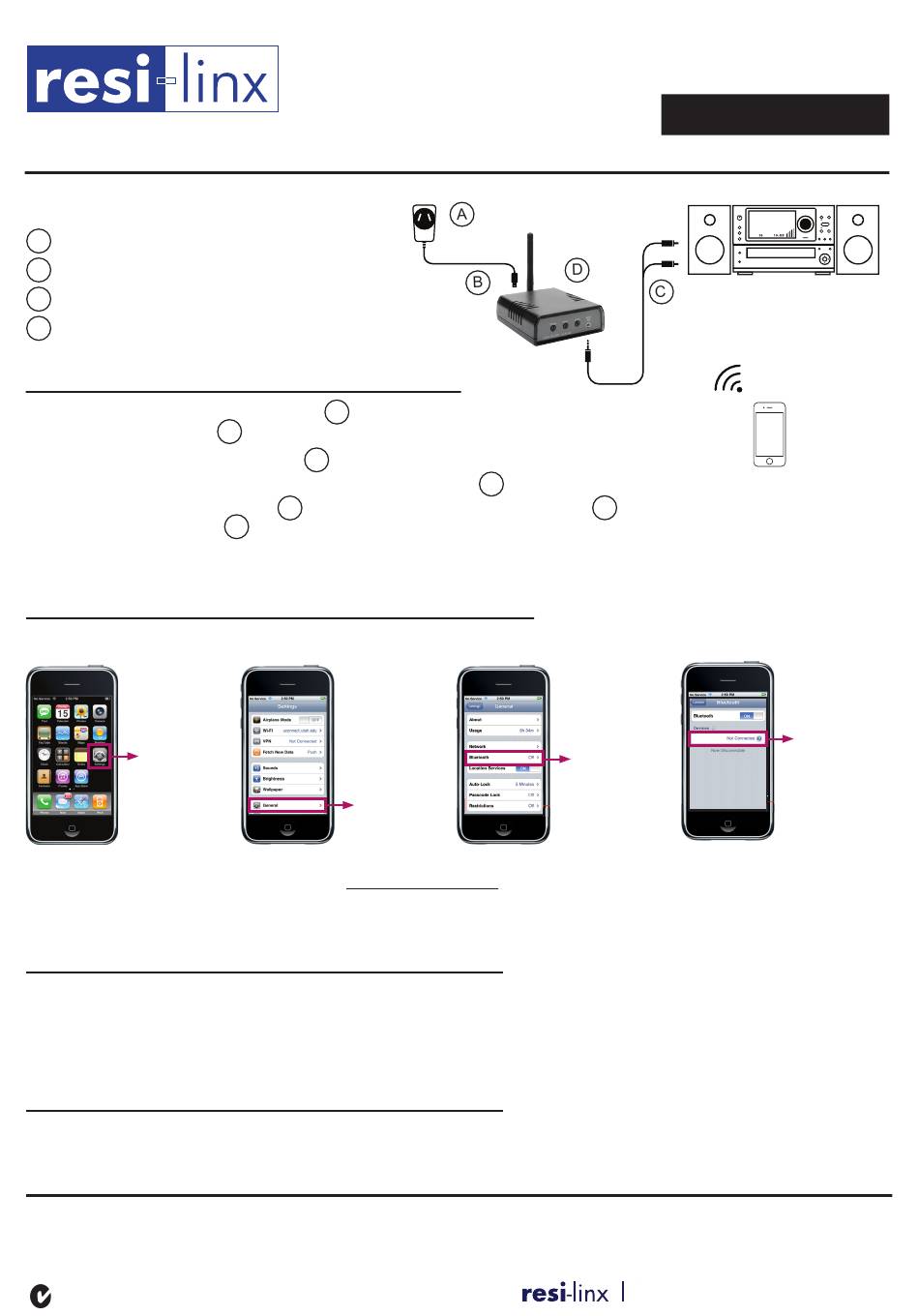

Hardware Connection

1. Connect one 3.5mm end of the audio lead
Bluetooth Audio Receiver
2. Connect the RCA end of the audio lead
3. Connect the antenna to the Professional Bluetooth Audio Receiver
4. Connect the mini USB to USB lead
and the AC power adapter
5. The LED will turn on (constant blue light) indicating the Receiver is powered and is now
ready to be paired to your iPad, iPhone, iPod touch or other Bluetooth enabled device.

Initial pairing to your Professional Bluetooth Audio Receiver

* Example provided is to pair to an iPad or iPhone only. Other Bluetooth enabled devices such as your laptop may require a pin code to pair eg. default pin code '0000'.
Please refer to equipment user manual for more information.
Step 1
From your iPad,
iPhone or iPod
touch home page
select 'Settings'
When connected, the blue LED on the Professional Bluetooth Audio Receiver will flash slowly, returning to a constant blue LED
whenever the connection is lost. Refer to website http://www.resi-linx.com for separate instructions on how to conveniently rename
your Bluetooth resi-linx device ID to identify different zones eg. kitchen, living, outdoor etc.
NB. When connected adjust Treble, Bass & Level controls on the Professional Bluetooth Audio Receiver to suit your personal preference.

Disconnecting/Changing Connected Device

If you want to switch from your iPad, iPhone, iPod touch or other Bluetooth enabled device to another, follow these steps:
1. Access the Bluetooth settings (as above) and turn the Bluetooth function to 'OFF' of the device.
2. The Professional Bluetooth Audio Receiver can now be connected to a different device.
3. Follow the directions in "Initial pairing to your Professional Bluetooth Audio Receiver" to connect a different device.

Reconnecting Your Device

If you move out of range** (>25m) or turn off the Bluetooth function on your iPad, iPhone, iPod touch or other Bluetooth enabled
device, the Professional Bluetooth Audio Receiver will disconnect. To reconnect, simply access the Bluetooth settings on your device,
ensuring Bluetooth function is set to 'ON' and select the resi-linx device ID.
** The communication range quoted is calculated based on an unobstructed line of sight test under optimum conditions. Actual range will vary depending on conditions, and is often less than the
maximum possible. Your actual range will be limited by several factors including, but not limited to, electromagnetic interference and obstructions
Warranty
Australian Audio Imports Pty Ltd states that the warrant that the customer can rely on is that provided
by the manufacturer. In the event of any warranty claim please contact us and we will forward it to the
manufacturer. The manufacturer will then determine the extent of their liability. This expressly negates, to
the extent possible by Australian law, any warranty reliance on Australian Audio Imports Pty Ltd.
N15275
®
C
to the jack of the Professional
D
.
C
to the input on your home stereo system.
B
to the Professional Bluetooth Audio Receiver
A
. Plug the AC adapter into a wall power outlet.
Step 2
Inside Settings,
select 'General'
linx-Audio Bluetooth
Professional Bluetooth Audio Receiver
D
.
D
Step 3
Inside General,
select 'Bluetooth'
Range
®
RL-BT120
25 m
25 m
Step 4
Turn Bluetooth
'ON' and search for
resi-linx
devices. Select the
'resi-linx' device ID
