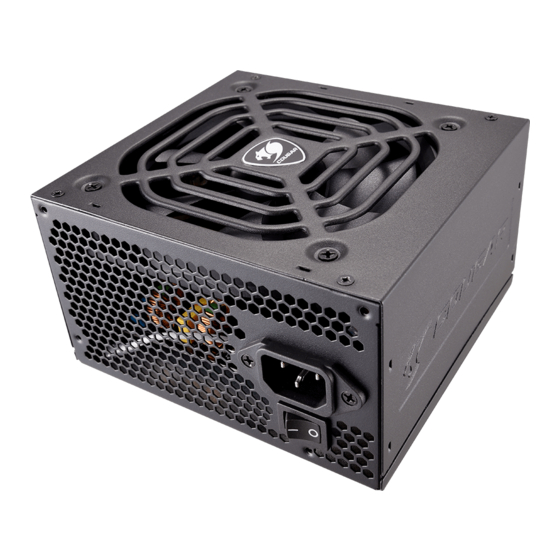

COUGAR VTE Quick Start Quide

V T E

Introduction

Dear customer:
Thank you for choosing a COUGAR
please read the manual below carefully. If you have any questions, please contact
our customer service:

Warnings and safety notes

Never open the PSU cover. There is potential danger of life due to high voltage inside.
The PSU should only be opened by an authorized technician. The manufacture
warranty will be void, if the PSU is opened by an unauthorized person.
Do not work on the PSU or the PC as long as the main voltage is still connected.
Switch the I/O button to position "0" and disconnect the power plug from the power
network.
Protect the PSU against moisture.
The PSU is suitable for operation at 100-240V/50-60Hz.
The ambient temperature should not exceed 50°. Please pay attention to the power
de-rating on all models with a decrease of 1%/°C starting at an ambient temperature
of 25°C. Please ensure that there is sufficient ventilation of the entire system.
The leakage current must not exceed 3.5 mA.
Make sure during the installation of the PSU that the ventilation slots are not covered.
Do not clog the ventilation slots of the PSU. Keep your PC away from direct heat
sources such as radiators.
When using an extension cord and/or multiple sockets pay attention to the maximum
through-connection ability in order to avoid short-circuits.
If you want to clean your PSU, disconnect the power plug from the power network
and remove it from the PC case. Before the removal make sure that you are not
statically charged, (e.g. through carpets or wool sweaters).Only clean the PSU on the
outside, always using dry cloth, never water or detergent.
During the operation of the PSU pay attention to the maximum loads. The single
loads and the total loads must not exceed to cross the values shown in output power
table. Avoid the use of adapters, such as 4Pin Molex to 6+2Pin PCI-Express.

Technical details and special features

EXTREMELY HIGH EFFICIENCY
●
Up to 87% of efficiency.
COMPATIBLE WITH THE LATEST PC-TECHNOLOGY
●
Created for use with current and next-generation multi-core CPU platforms.
SUPPORT MULTI-GPU TECHNOLOGY
●
Supports PCI Express 3.0 next-generation graphics cards with 8(6+2) pin PCI-E connector.
ULTRA-QUIET & TEMPERATURE-CONTROLLED 120mm FAN
●
Extremely Low Noise Level, fan speed automatically regulated according to the
temperature.
INTEGRATED AIR INLET DESIGN
●
Optimal aerodynamic design that provides more silent operation.
ACTIVE POWER FACTOR CORRECTION (ACTIVE PFC)
●
PF value up to 99%, provides clean and reliable power.
FULL PROTECTIONS WITH OCP, SCP, OVP, UVP, OPP
●
®
power supply unit. Before the installation
ESPAÑOL
EFICIENCIA EXTREMADAMENTE ALTA - Hasta 87% de eficiencia.
●
COMPATIBLE CON LA TECNOLOGÍA DE PC MÁS RECIENTE
●
Creada para el uso con las plataformas actuales y de la próxima generación de
CPU multi-core.
SOPORTE CON TECNOLOGÍA MULTI-GPU
●
Soporta la próxima generación de tarjetas gráficas PCI Express 3.0 con 8(6+2)
conectores pin PCI-E.
VENTILADOR DE 120mm ULTRA-SILENCIOSO Y CON CONTROL DE TEMPERATURA.
●
Nivel de ruido extremadamente bajo, velocidad del ventilador regulada
automáticamente de regulado de acuerdo a la temperatura.
DISEÑO DE ENTRADAS DE AIRE INTEGRADAS
●
Diseño aerodinámico de excelencia que provee una operación más silenciosa.
FACTOR DE CORRECCIÓN DE FUERZA ACTIVO (PFC ACTIVO)
●
Eficiencia de hasta 99%, provee una fuerza limpia y confiable.
PROTECCIONES COMPLETAS CON OCP, SCP, OVP, UVP, OPP.
●
PORTUGUÊS
EFICIÊNCIA EXTREMAMENTE ALTA - Até 87% de eficiência.
●
COMPATÍVEL COM A TECNOLOGIA DE PC MAIS RECENTE
●
Criado para uso com as plataformas atuais e da próxima geração de CPU multi-core.
SUPORTE COM TECNOLOGIA MULTI-GPU
●
Suporta a próxima geração de placas de vídeo PCI Express 3.0 com 8(6+2)
conectores pin PCI-E.
VENTILADOR DE 120mm ULTRA-SILENCIOSO E COM CONTROLE DE TEMPERATURA.
●
Nível de ruído extremamente baixo, velocidade do ventilador regulada
automaticamente de acordo com a temperatura.
DESIGN DE ENTRADAS DE AR INTEGRADAS
●
Design aerodinâmico de excelência que fornece uma operação mais silenciosa.
FATOR DE CORREÇÃO DE FORÇA ATIVO (PFC ATIVO)
●
Eficiência de até 99%, fornece uma força limpa e confiável.
PROTEÇÕES COMPLETAS COM OCP, SCP, OVP, UVP, OPP
●

Installation/accessories

Before you begin with the installation, please read the section
" Warnings and safety notes."For the arrangement only use the supplied screws since
these have the correct thread. You need a screwdriver for the correct arrangement.
The following parts are included within the delivery:
Screws for the PSU assembly
●
Power cord (Please only use the power cord which is included; low-quality cords can
●
damage your PSU and your PC-system.)
Brief instruction incl. Information about the warranty
●
Place the PSU into its designated place within the case and fix it with the supplied screws.
●
First insert the plugs for the mainboard supply (20/24 pin, 4 pin and possibly
●
8 pin – according to mainboard layout) into the respective slots.
Connect the disk drives and if necessary the graphics cards to the PSU.
●
Close the PC and ensure that the PSU power switch is set to the position "0".
●
Connect the PSU to the power network using the supplied power cord. Using only
●
the power cord provided in the package. Low quality power cord may damage the
PSU and PC system!
Turn on the PSU and then start your PC.
●

Safety functions

OCP (Overcurrent protection)
●
If the current on a single line is higher than indicated, the PSU automatically switches off.
UVP (Undervoltage protection)
●
If the voltages fall below a certain tolerance value on the single lines, the PSU
automatically switches off.
OVP (Overvoltage protection)
●
If the voltages increase above a certain tolerance value on the single lines, the PSU
automatically switches off.
SCP (Short-circuit protection)
●
In the case of a short-circuit this feature prevents damage to the core components
of the PSU and its system components.
OPP (Overload protection)
●
If the system is oversized and requires more power from the PSU than it can
perform, this protection function is activated.

Specifications

Operating conditions

●
Working temperature: +10°C ~ +40°C (Please note the de-rating condition in
Warnings and safety notes)
Storage temperature: -40°C~+70°C
Operating humidity (without condensation water): 20%~85% relative humidity
Storage humidity (without condensation water): 5%~95% relative humidity

Output power

●
Model Name AC input
+3.3V
16A
100-240V~
VTE400
50-60Hz 6.5-4A
CGR BS-400
16A
VTE500
CGR BS-500
100-240V~
50-60Hz 10-6A
16A
VTE600
CGR BS-600

Connectors

●
Connector Main
Pin 24(20+4) Pin
VTE400 1
1
VTE500
1
VTE600

Trouble shooting

WARNING:
Never work on the PSU yourself. Even long time after its deactivation,
life-threatening voltages can still be present in the PSU. Repairs should only be
made by authorized specialists.
DC output
+5V +12V -12V +5Vsb
18A 30A
0.3A 2.5A
120W 360W
18A 37.5A
0.3A 2.5A
135W 450W
20A 45A
0.3A 2.5A
150W 540W
CPU Peripheral S-ATA
8(4+4) Pin 4 Pin 5 Pin
1 2 4
1 2 5
1 2 6
Total
400W
500W
600W
PCI-E
8(6+2) Pin
1
2
2
