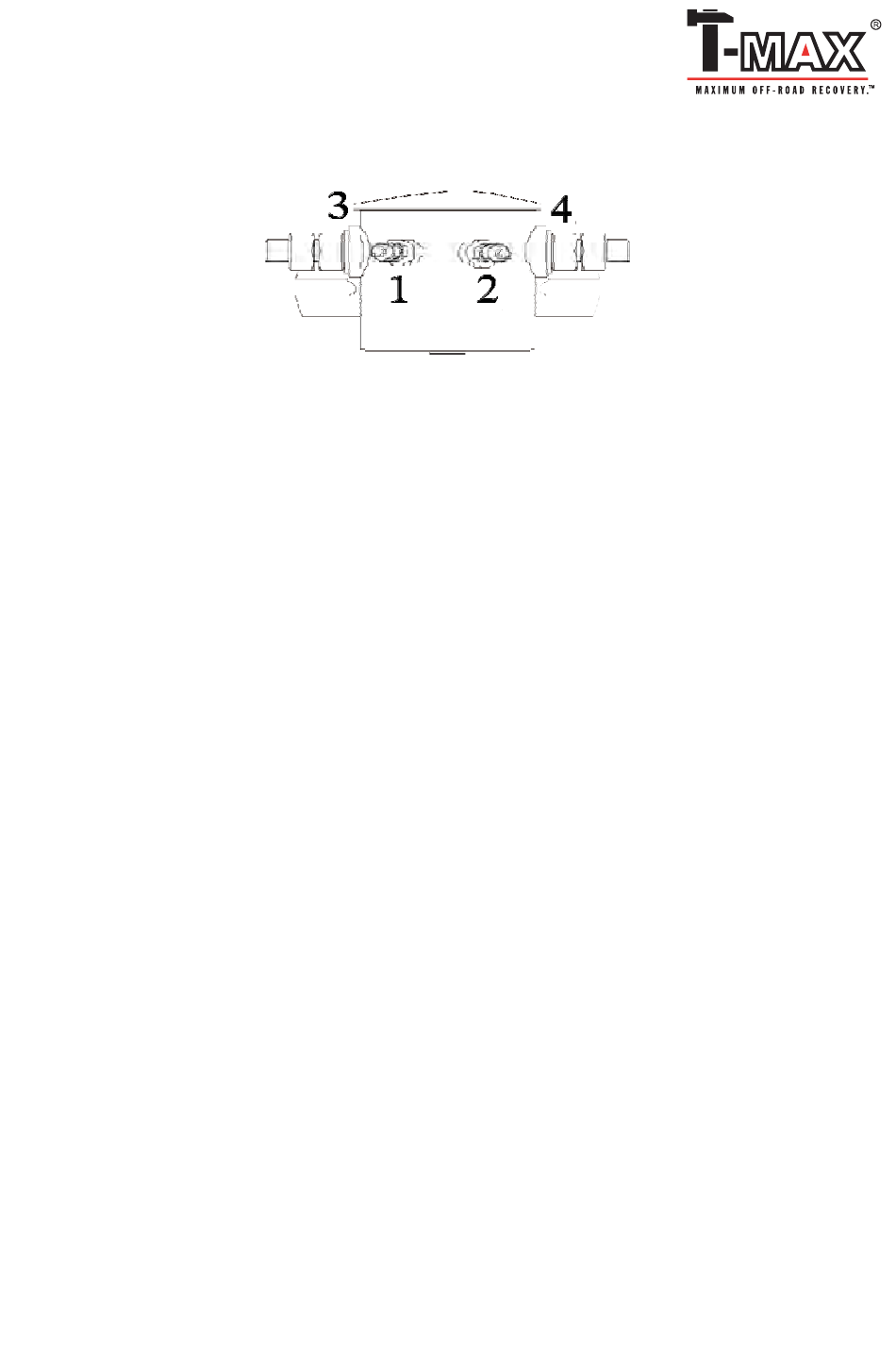

INSTRUCTION MANUAL

1.DISPLAY OF BATTERY VOLTAGE

The battery voltage of each battery is visible for 45 sec after pushing the display button.
Led indicators:
Green: batteries are in the safe working range
Yellow: check batteries.
Red: battery should be charged
12.6v=100%
12.4v=75%
12.2v=50%
12.0v=25%

2.DISPLAY OF CHARGE VOLTAGE WHILE CHARGING

Led display:
Red light: >14.5v: batteries will be overcharged, damage to batteries may occur
Yellow light: >14v:
Green light: < 14v:
Warning: When the LED glimmer, it indicate the Main battery voltage is not enough or
Dual Battery System is out to order. Please check the Main battery or check if the
connection s correct to avoid battery is damaged.
3.AUTOMATIC/MAUNAL BATTERY LINK:
Automatic battery link:
While the engine is running the main and aux batteries are linked together for parallel
charging from the alternator (green led linked is on). If the engine is stopped, the two
batteries will be disconnected automatically with some delay. Appliances as fridges,
lights, compressors, inverters are now safely fed from the aux battery
The dual battery system links the two batteries automatically for charging and isolates
the two batteries for discharging. The illumination of the green led indicates that the
batteries are linked. The dual battery system recognizes charge on both batteries
(alternator on main battery or solar power/charger on auxillary battery) and links the
batteries.
linker
standard battery charging mode
save charge mode, no damage to batteries.
Page 3 of 4
