Soundoff Signal nERGY bluePRINT ENGCP15001 Programming Manual

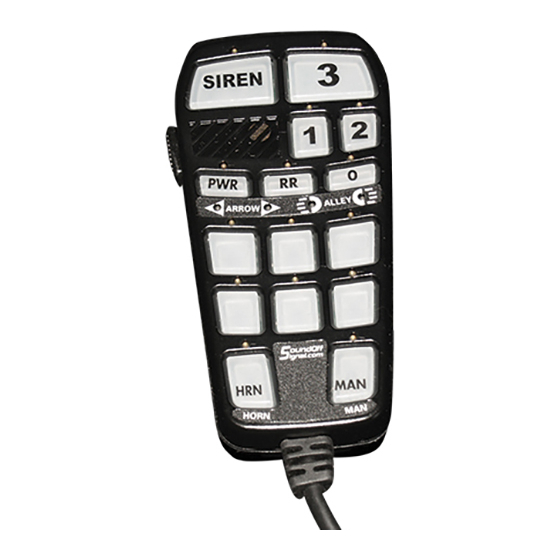

HANDHELD REMOTE
ENGCP15001
PROGRAMMING MANUAL
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can
cause heat build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer
to vehicle Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine
vehicle wiring configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-)
battery terminal or local chassis ground (-) must be sized to supply at least 125% of
max. current and properly fused at power source.
•Install protective grommets when routing wire through firewall or metal.
www.soundoffsignal.com/sales-support. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the
1.800.338.7337 / www.soundoffsignal.com
1
.
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
automated message). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .
Tech Specs
Input Voltage: 10-16Vdc (Negative Ground)
Sleep Current: 8 mA
Inputs: 1x 3pin MIC Input
Reverse Polarity Protection: Protected
Transient Protection: Protected
High Voltage Protection: Protected
Low Voltage Protection: Protected
Operating Temp: -40˚C to + 65˚C
Dimensions: 6.9"H x 3.5"Wx 1.2"D
Weight, Boxed: 1.3lb.
Weight, Device Only: 1.1lb
The control panel is not waterproof. Install in a protected location away from excessive
SIREN AMPLIFIER DIAGNOSTIC INDICATORS:
STANDBY SPKR 1 INDICATOR SPKR 2 INDICATOR
FLASHING ON
FLASHING OFF
FLASHING ON
FLASHING FLASHING
FLASHING -
FLASHING FLASHING
ON -
*OFF ON
*OFF -
*OFF OFF
*OFF -
NOTICE:
nERGY Control System
Control Panel
heat and moisture.
CONDITION
ON OVER-TEMPERATURE, (380R ONLY)
ON UNDER-VOLTAGE
OFF OVER-VOLTAGE
- COMM FAULT - RELAY
FLASHING COMM FAULT - AMP
FLASHING COMM FAULT -CENTRAL CONTROLLER
- STANDBY MODE
- SPKR 1 IS ACTIVE
ON SPKR 2 IS ACTIVE
- SPKR 1 IS NON-FUNCTIONING
OFF SPKR 2 IS NON-FUNCTIONING
* SIREN AUDIO BUTTON ACTIVATED
(EXCEPT RADIO REBROADCAST)
EVCS_HANDHELD_ENGCP15001 05.16
