Models SPAS.PGA.EL9.0800, SPAS.PGA.EL9.1200
Grill height adjustable from 1000mm to 1400mm
Electric powered elevation of cooking pit
Joystick grill height control
Cantilevered grill frame folds up for clear access to firebox
Removable cooking grids that fit dishwasher racks
Convenient cupboard for storage underneath
Easy-to-Remove Parts for Cleaning
Available in either 800mm or 1200mm wide units
Due to continuous product research and development, the information contained herein is subject to change without notice
Revision Date: 24/06/2015
Version 1
ASADO PARILLA GRILL
SPAS.PGA.EL8.0900
FEATURES
OPTIONS
Tel: 1300 79 1954
INSTALLATION, OPERATION & MAINTENANCE
Asado Parilla Grill SPAS.PGA.EL9.xxxx
Email: fse@stoddart.com.au
Web: www.stoddart.com.au
Advertisement
Table of Contents
Summary of Contents for asado PARILLA

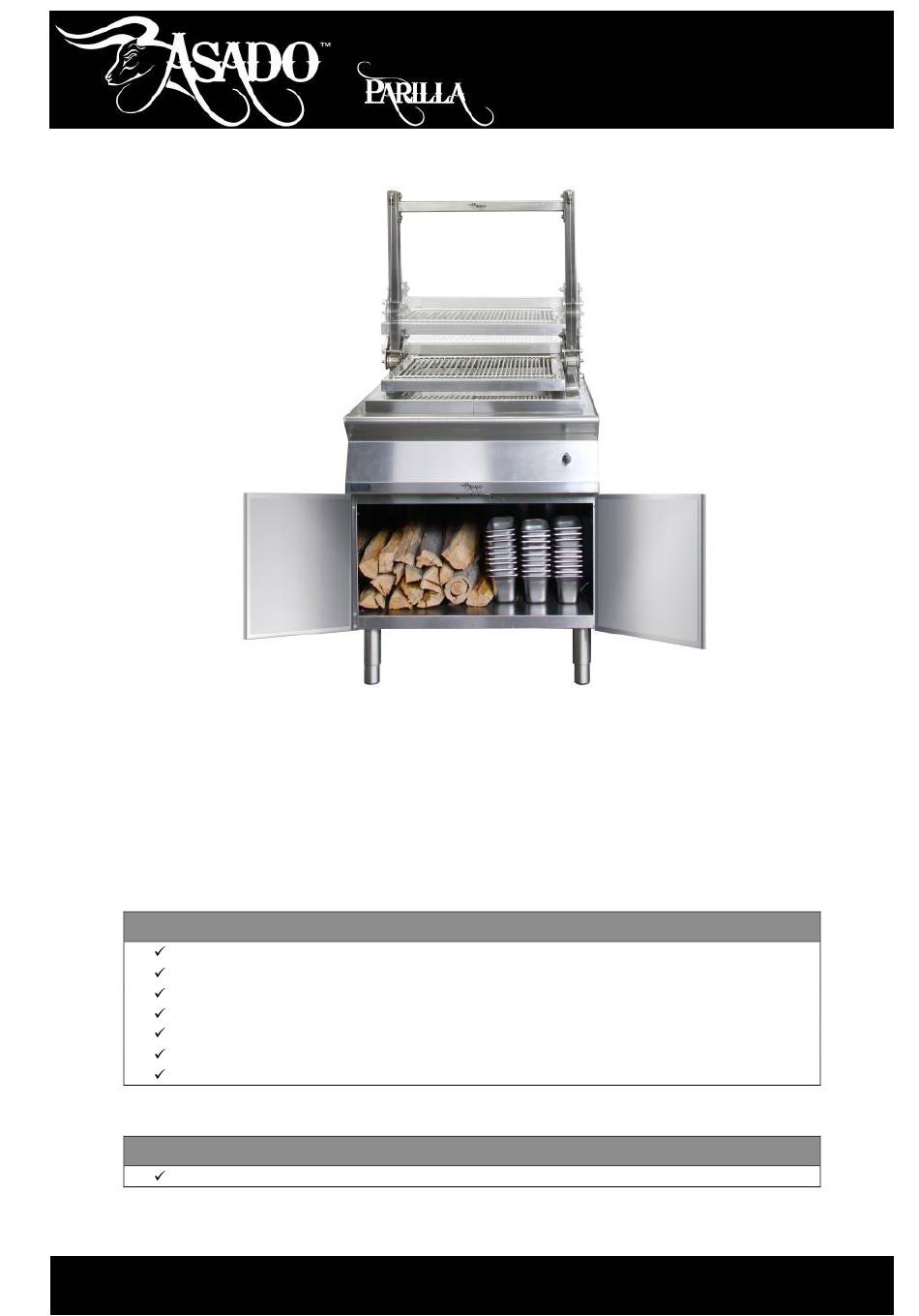

- Page 1 INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx ASADO PARILLA GRILL Models SPAS.PGA.EL9.0800, SPAS.PGA.EL9.1200 SPAS.PGA.EL8.0900 FEATURES Grill height adjustable from 1000mm to 1400mm Electric powered elevation of cooking pit Joystick grill height control Cantilevered grill frame folds up for clear access to firebox...
- Page 2 INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Due to continuous product research and development, the information contained herein is subject to change without notice Revision Date: 24/06/2015 Tel: 1300 79 1954 Email: fse@stoddart.com.au Version 1 Page 1 of 28 Web: www.stoddart.com.au...
-
Page 3: Table Of Contents
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Table of Contents General Recommendations ................. 4 Important Information ....................... 4 General Safety ........................4 Service ........................4 Sharp Edges ......................4 Power Cables ......................4 Specifications ..................... 5 Introduction........................5 Product Overview ....................5 Technical .......................... - Page 4 INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Information ......................19 Access to Electrical Wiring and Mechanical Parts (Qualified Technician Only) ....... 19 Internal Electrical and Mechanical Parts ..............19 Joystick Control Switch ..................19 Grill Plate pulleys and lift mechanisms ..............19 Top Pulleys ......................
-
Page 5: General Recommendations
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx General Recommendations Important Information Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service technicians. -
Page 6: Specifications
® The Asado Parilla Grill is a high quality commercial kitchen appliance designed to grill or smoke food over solid fuels such as wood or coal. It features an adjustable grill height that allows for control of heat and/or smoke. -
Page 7: Technical
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Technical Code Explanation Code Explanation SPAS Stoddart Product Asado Parilla Grill - Automatic Electrolux 900 Series profile 0800 800mm Width Technical Specifications SPECIFICATIONS Model SPAS.PGA.EL9.0800 SPAS.PGA.EL9.1200 Height 1650mm 1650mm Width 800mm 800mm... -
Page 8: Technical/Connection Diagram
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Technical/Connection Diagram Plan View Front Elevation Side Elevation Due to continuous product research and development, the information contained herein is subject to change without notice Revision Date: 24/06/2015 Tel: 1300 79 1954 Email: fse@stoddart.com.au... -
Page 9: Rating Plate
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Rating Plate The rating plate of the appliance contains identification and technical data. It is located on the inside of the unit, behind the front doors, on the bottom of the right internal side wall panel. -
Page 10: Installation
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Installation General Precautions WARNING! Installation must comply with local electrical and health & safety requirements. Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Do NOT use this appliance for other than its intended use. -
Page 11: Setting Up
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Setting Up Handling Use suitable means to move the appliance e.g. a lift truck or fork pallet trucks (the forks MUST • reach all the way beneath the appliance). Site Preparation Ensure the site is level and properly cleaned. -
Page 12: Electrical
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Electrical WARNING! This unit MUST be installed in accordance with AS/NZS 60335.1 and complies with local laws Power Supply The unit is supplied with a 3-core, 240 Volt, 10 Amp, 2.3m flexible power cord with a standard 3 pin plug. -
Page 13: Operation
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Operation General Recommendations When using any electrical appliance, safety precautions should always be observed. Our appliances have been designed to give high performance. Hence, the appliance must be used exclusively for the purpose for which it has been designed. -
Page 14: Unit Operation
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Unit Operation Moving the Grill Before switch ON the unit, ensure the unit is installed correctly. • The grill is operated by a 3 position joystick controller. It allows for up motion and down motion. The •... -
Page 15: Fire
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Fire Ensure fire bricks and hebel blocks are correctly positioned in the fire pit as per diagram below. • Ensure that there is adequate fire prevention before lighting the fire. • Ensure that the fire is managed by reasonable, competent and trained personnel. -
Page 16: After Hours
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx After Hours Information Ensure that fire is completely extinguished before leaving unit. • Ensure no smoke of exhaust fumes are emanating from the unit before it is left unattended. • Cleaning WARNING! Switch the unit OFF at the main power supply before cleaning. -
Page 17: External Surfaces
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx External Surfaces Clean the stainless steel and metal parts with warm (not hot) soapy water and a sponge. • Rinsed the stainless steel and metal parts with clean, fresh water. • After cleaning, thoroughly wipe the stainless steel and metal parts dry with a soft cloth. Do NOT let water •... -
Page 18: Maintenance
Excessive shaking of the grills or the cantilever grill support tube on up or down motion. Any direct contact between the lift mechanism and the fire pit capping piece or the Asado Brand banner panel. Excessive squealing or galling from rollers (under clip-on covers) on up or down motion. -
Page 19: Stainless Steel Protection
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Stainless Steel Protection Cleaning For cleaning the stainless steel, check the cleaning section. • All metal surfaces should be checked while cleaning for damage, scuffs or scapes as these can lead to rust •... -
Page 20: Water Damage
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Water Damage Information Water damage to the electrical and mechanical parts of unit can occur through hosing on or around the • unit. Improper cleaning of the unit can lead to water damage. -
Page 21: Mechanical Parts
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Mechanical Parts Motor and Chain assembly Ensure that the chain is sufficiently tensioned • To tension the chain, loosen the bolts on the motor mounting bracket. Slide the motor to achieve the desired tension. Tighten the bolts on the motor mounting bracket. -
Page 22: Troubleshooting
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Troubleshooting WARNING! Technician tasks are only to be completed by qualified service people. Check faults before calling service technician. Task Type - (O) = Operator (T) = Technician Task Fault Possible Cause... -
Page 23: Electrical Diagram
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Electrical Diagram Due to continuous product research and development, the information contained herein is subject to change without notice Revision Date: 24/06/2015 Tel: 1300 79 1954 Email: fse@stoddart.com.au Version 1 Page 22 of 28 Web: www.stoddart.com.au... -
Page 24: Spare Parts List/Assembly
INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx Spare Parts List/Assembly Due to continuous product research and development, the information contained herein is subject to change without notice Revision Date: 24/06/2015 Tel: 1300 79 1954 Email: fse@stoddart.com.au Version 1 Page 23 of 28 Web: www.stoddart.com.au... -
Page 25: Warranty
Warranty Australian Warranty and Contact Details As the exclusive manufacturer and distributor of Asado products in Australia, Stoddart Manufacturing (Stoddart) would like to congratulate you on your purchase of an Asado product. It should be noted by users of the product that it is not designed for household or domestic use and should not be used for this purpose. - Page 26 INSTALLATION, OPERATION & MAINTENANCE Asado Parilla Grill SPAS.PGA.EL9.xxxx 3.2. Stoddart's warranty liability under clauses 1 and 2 of these Terms exclude or do not cover: i. The matters acknowledged by Customer in clause 3.1; ii. Situations where Stoddart is not satisfied (acting reasonably) the equipment or any part of the equipment has been used in accordance with the Instructions including misuse, neglect, unauthorised alteration, incorrect installation, power surges, accident, use of inappropriate chemicals, flooding, fire or act of God;...
-
Page 28: Warranty Request Form
WARRANTY REQUEST FORM Phone: (07) 3440 7600 Int: +617 3440 7600 Phone: 1300 307 289 Fax: (07) 3344 1000 Int: +617 3344 1000 Email: service@stoddart.com.au To ensure we can provide the best possible service we require you to complete this form. Make, model and serial number, along with other essential information.
