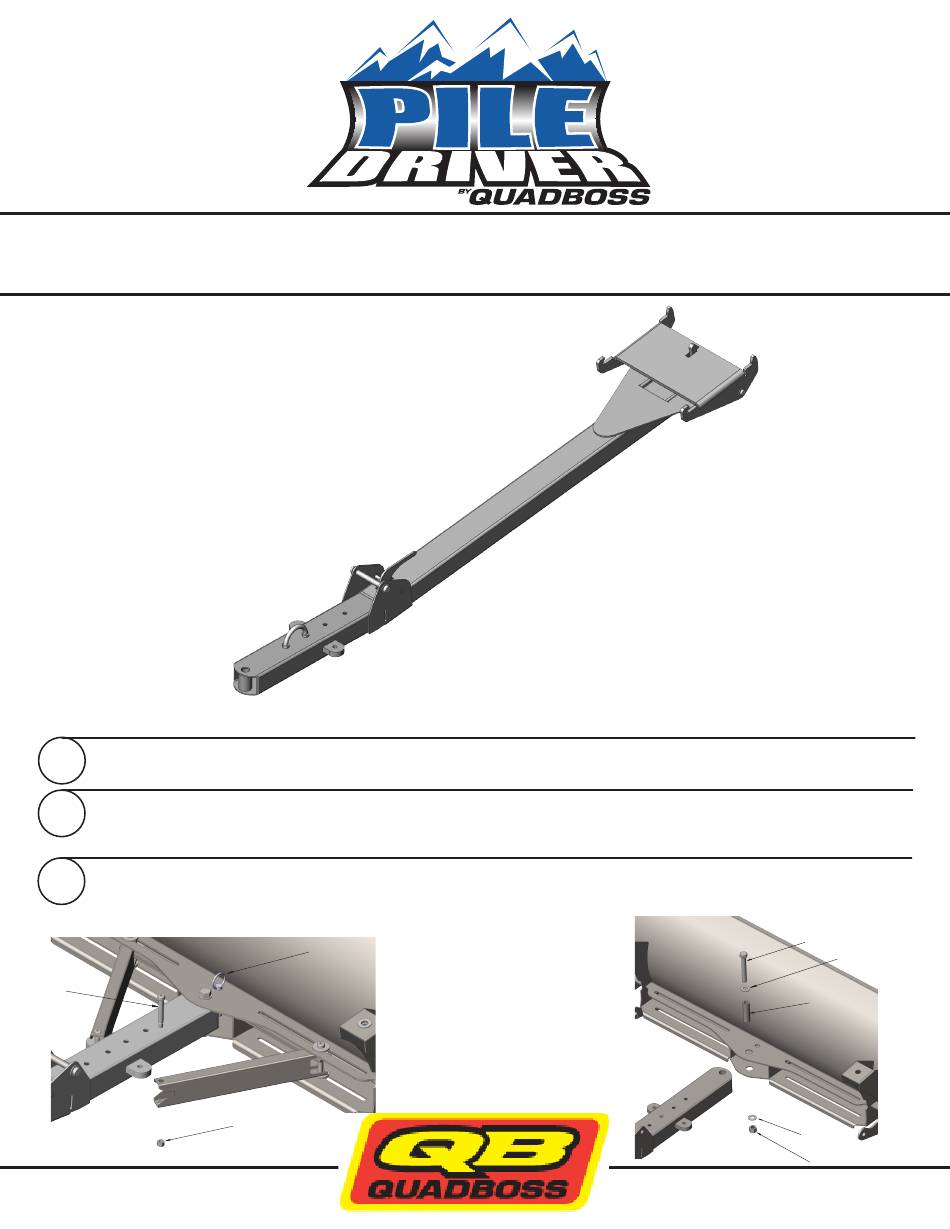

PART #9382
QUADBOSS UTV STRAIGHT PUSH TUBE
This owner's manual covers all aspects of your new
push tube including assembly, replacement parts,
installation, warranty, and troubleshooting. For any
additional questions or concerns please call
877-847-1558 or visit www.quadboss.com.
Assembly -
Note: You will need to have the blade assembled before attempting to attach the push tube.
The Quadboss straight push tube comes completely pre-assembled for your convenience. See the instructions below to attach the push tube to
1
the blade. NOTE: The hardware for attaching the push tube comes with the blade!
The push tube will slide into the center of the brackets on the back of the blade. Bolt the push tube to the blade by first sliding the spacer (#9360-112)
2
through the blade and push tube. Secure with the 1/2" x 3-1/2" hex bolt (#HDW9210), 1/2" flat washers (#HDW9025), and 1/2" nylock nut
(#HDW7089). See figure 1. It may be easier to position the blade face down on the ground and install the push tube vertically into the blade.
Attach each strut from the blade to the welded tabs on the push tube. Secure with a 3/8" x 2" shoulder bolt (#HDW9208) from the top and a 5/16"
3
nylock nut (#HDW7058) on the bottom. Place the plow system face down on the blade with the push tube up in the air. Move the push tube back
and forth to ensure there is no binding in the slide mechanism. Place the plow back on the ground in the normal position and install the pivot pin
(#HDW9207). You can now install the assembled plow system onto the UTV.
HDW9208
Figure 2
08/09/2011
Tech Line 877-847-1558
OWNER'S MANUAL
HDW9207
HDW7058
Please read this entire
owner's manual before
assembling or installing
the plow system!
Figure 1 - Note: Hardware shown will be
packaged with the blade!
www.quadboss.com
PAGE 1 of 6
HDW9210
HDW9025
9360-112
HDW9025
HDW7089
Rev. 1.1
Advertisement
Table of Contents
Related Manuals for QuadBoss QuadBoss Pile Driver 9382
Summary of Contents for QuadBoss QuadBoss Pile Driver 9382
- Page 1 Note: You will need to have the blade assembled before attempting to attach the push tube. The Quadboss straight push tube comes completely pre-assembled for your convenience. See the instructions below to attach the push tube to the blade. NOTE: The hardware for attaching the push tube comes with the blade! The push tube will slide into the center of the brackets on the back of the blade.
- Page 2 QUADBOSS UTV STRAIGHT PUSH TUBE SAFETY PRECAUTIONS Read this manual completely. Failure to observe the following safety instructions could result in serious injury or death. - Read the plow owners manual, UTV manual and all safety labels before operating. - Do not exceed a speed of 5 MPH (8 KPH) when the blade is installed.
- Page 3 Be careful not to pinch your fingers, toes, or anything else between the push tube and ground. to release. Remove your winch cable and draw it back up into the winch. You can now drive backwards away from the plow. PART #9382 PAGE 3 of 6 Tech Line 877-847-1558 www.quadboss.com 08/09/2011 Rev. 1.1...
- Page 4 QUADBOSS UTV STRAIGHT PUSH TUBE REPLACEMENT PARTS To order replacement parts for your push tube please call the Quadboss technical service department at 877-847-1558. Part # Description Ref. Qty. 9330-110 Linkage Rod 9382-200 Push Tube Weldment Release Lever 9330-104 9380-104 Rear Attach Shaft 1/2”...
- Page 5 QUADBOSS UTV STRAIGHT PUSH TUBE TROUBLESHOOTING GUIDE Below are some tips to help you resolve any problems and keep your Quadboss plow system in proper working order. After reviewing, if you still need technical assistance please call 877-847-1558. PLOW ASSEMBLY WILL NOT ATTACH OR DISCONNECTS FROM THE BOTTOM MOUNT ON THE ATV.
- Page 6 Should you have any question concerning this warranty, please contact us at 877-847-1558. The model number, date of purchase, and name of authorized Quadboss dealer from whom you purchased the product will be needed before any warranty claim can be processed.
