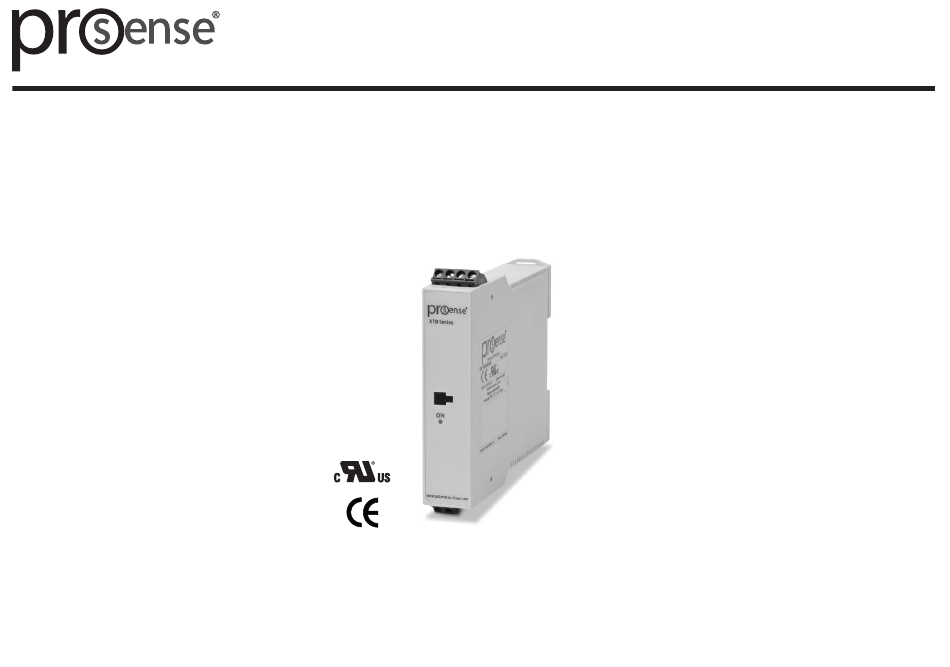

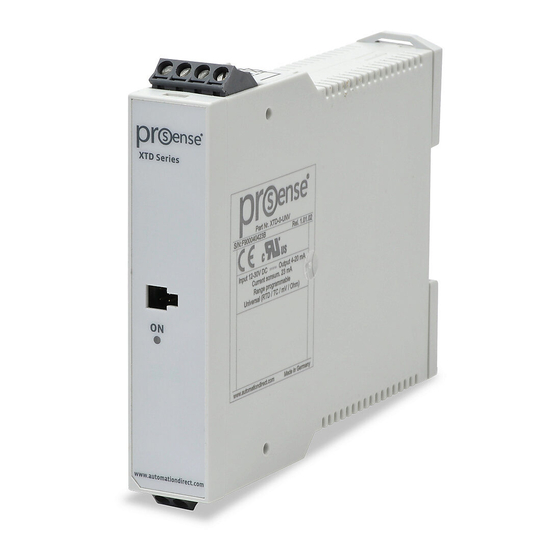

- Page 1 XTD Series DIN Rail Mounted Universal Temperature Transmitters - Programmable XTD Series - Programmable AutomationDirect.com XTD-UNV product insert Rev. 2...
- Page 2 Dimensions Installation inches [mm] • Ambient Temperature: -40 to 185°F (-40 to 85°C) • Installation area: Installation on DIN rail according to IEC 60715, e. g. in control panel • Installation angle: No limit XTD-UNV product insert Rev. 2...
- Page 3 Please take note when installing the transmitter: The shield on the 4-20 mA signal output must TC / mV have the same potential as the shield at the XTD Series sensor connections. When using grounded thermocouples, shielding of the output 4 to Configuration cable socket 20 mA cable is recommended.
- Page 4 Programming Transmitter set-up is done using the XT-SOFT programming software, available as a free download at www.automationdirect.com, and XT-USB configuration cable (purchased separately). The XT-USB configuration cable should be assigned to a windows communication port from COM1 to COM20 to communicate with the universal temperature transmitter.
