INSTALLATION GUIDE
Contents
Drawings ............................................. 1
Applies to ............................................. 1
Health and safety .................................. 1
Walls ...................................................3
Plasterboard Wall ...................................4
Concrete Slab ........................................ 5
6
Walls ................................................... 7
Masonry Wall ........................................8
Vertical Damper in a Masonry Wall against
slab ....................................................9
Periodic maintenance .............................10
Actuators ............................................ 11
Control Mode Installation Procedure .............................11
Wiring Diagrams .......................................................... 12
Actionair SmokeShield PTC .......................................... 13
Actionair FireShield ...................................................... 15
DWFX-F Installation Method

Drawings

Please visit our website to download the installation dra-
wings, which are located on the relevant product down-
load section.

Applies to...

• Actionair SmokeShield PTC
• Actionair FireShield

Health and safety

• This process must be undertaken by competent per-
• Standard site PPE should be used (minimum steel toe
• All waste materials should be collected and disposed of
• Actuators: All wiring should be carried out in accor-
sons. More than one person may be required to ensure
the safe handling of large dampers and other materi-
als. Use must be made of access equipment to ensure
unsafe practices are not used to approach walls or diffi-
cult access areas.
cap boots, hard hat); together with any protective
eyewear, gloves and masks, when drilling or cutting is
being undertaken. The latter should also be used when
handing the wall construction materials, as defined by
the material suppliers. If loud equipment is being used,
hearing protection should be used.
as defined by the relevant supplier.
dance with the wiring details provided by the IEE and
BS regulations and by a competent person. Care must
be taken when installing and inspecting dampers, as
they are likely to close without warning due to loss of
electrical power or a temperature rise in the ductwork.
This is their prime function. Do not insert any items,
fingers or limbs between the blades. Larger dampers
must be handled in accordance with current regula-
tions and good practice due to weight.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWFX-F and is the answer not in the manual?

Questions and answers

Aneta Rzeszut
February 6, 2025

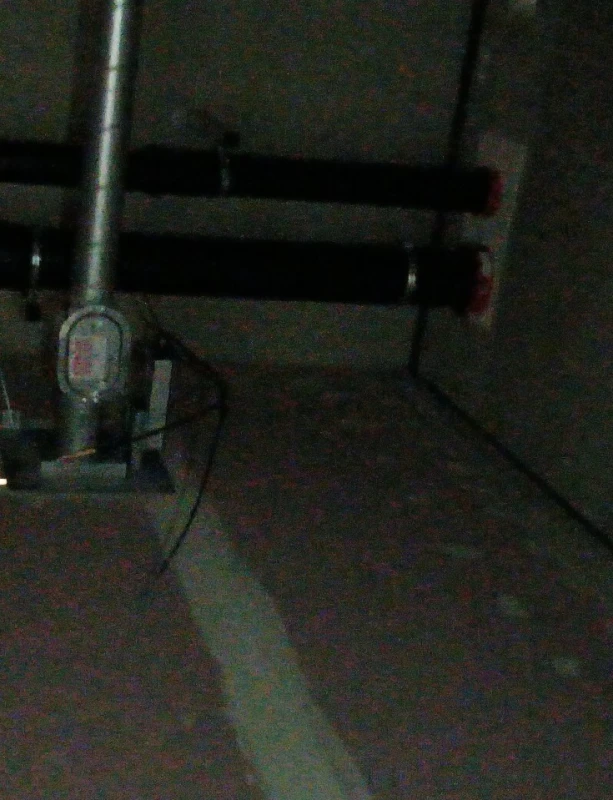

Hi, would you be able to assist with firestopping detail to DWFX-F damper penetrating a shaft wall BWO

User image 67a4a06acf858
0
1 comments:
Steve
February 6, 2025

@Aneta Rzeszut

0

Related Manuals for actionair DWFX-F

Summary of Contents for actionair DWFX-F

  • Page 1: Table Of Contents

    • Actuators: All wiring should be carried out in accor- Wiring Diagrams ............12 dance with the wiring details provided by the IEE and DWFX-F Damper Dimensional Data ....13 BS regulations and by a competent person. Care must be taken when installing and inspecting dampers, as Actionair SmokeShield PTC ..........

  • Page 2: Ce Installation Method Overview

    Actionair FireShield Vertical DWFX-F In A Plasterboard Page 3, [AA/F13069] Page 3, [AA/F10705] Wall Page 3, [AA/F10704] Vertical DWFX-F, Ablative Batt In A Page 4, [AA/F10710] Page 4, [AA/F10711] Plasterboard Wall Vertical DWFX-3F (Top Flange Remo- Page 5, [AA/F11945] Page 5, [AA/F11944]...

  • Page 3: Vertical Damper Installation In Plasterboard Walls

    Plasterboard Wall 11. Connecting ductwork omitted for clarity. Ductwork Actionair SmokeShield PTC - [AA/F13069], [AA/F10704] must be independently supported. There must be an appropriate break-away joint between the damper and Actionair FireShield - [AA/F10705] connecting ductwork on both sides of assembly.

  • Page 4: Vertical Damper, Alblative Batt In A Plasterboard Wall

    Actionair DWFX-F Installation Guide VERTICAL BLADES; DAMPER CAN BE INSTALLED WITH THE © Swegon Air Management L BLADES IN THE VERTICAL ORIENTATION South Street, Whitstable, Kent C  WITH THE ACTUATOR MOUNTED AT Tel: +44 (0)1227 276100  EITHER THE TOP OR BOTTOM. ...

  • Page 5: Vertical Damper Installation (Top Flange Removed) In A Plasterboard Wall Under Concrete Slab

    Actionair DWFX-F Installation Guide  VERTICAL BLADES  Damper can be installed with the © Swegon Air Managemen  blades in the vertical orientation South Street, Whitstable, Ken with the actuator mounted at the Tel: +44 (0)1227 276 Fax: +44 (0)1227 264 bottom.

  • Page 6: Vertical Damper Installation In Masonry Walls

    Actionair DWFX-F Installation Guide   © Swegon Air Manageme South Street, Whitstable, Ke Tel: +44 (0)1227 276 Fax: +44 (0)1227 264 www.swegonair.co Installation D  If your proposed installation de  differ from that shown here, ple VERTICAL BLADES;...

  • Page 7: Vertical Damper, Ablative Batt In Masonry Walls

    Actionair DWFX-F Installation Guide VERTICAL BLADES; Damper can be installed with the blades in the © Swegon Air Management Lim vertical orientation with actuator mounted at South Street, Whitstable, Kent CT either the top or bottom. For cleat locations of...

  • Page 8: Vertical Damper (With A Pattress) In A Masonry Wall

    Actionair DWFX-F Installation Guide  © Swegon Air Management Lim South Street, Whitstable, Kent CT5 Tel: +44 (0)1227 276100   Fax: +44 (0)1227 264262  www.swegonair.co.uk  Installation De     If your proposed installation details d that shown here, please discuss this ...

  • Page 9: Slab

    Actionair DWFX-F Installation Guide Section B-B VERTICAL BLADES; - DRIVE SIDE DETAIL The damper can be installed with the blades in the vertical orientation with the Actuator © Swegon Air Managemen actuator mounted at the bottom. For South Street, Whitstable, Ken...

  • Page 10: Periodic Maintenance

    Actionair DWFX-F Installation Guide Periodic Maintenance automatic systems may allow more frequent testing (48hr or less) and this may be required by a national standard. Manufacturer Recommended Service Inter- vals Approved Document B, Volume 2 • After commissioning and handover (see DW145 check •...

  • Page 11: Actuators

    Actionair DWFX-F Installation Guide Actuators Control Mode Installation Procedure 1. Remove transit plate and recycle. 2. Slide the interface and mode assembly into the shroud. Ensure the slots in the interface casing and the drive coupling located on the rear of the interface are in line.

  • Page 12: Wiring Diagrams

    Actionair DWFX-F Installation Guide DWFX-F Wiring Diagrams Mode 5 PTC 24V BLACK (1) SUPPLY 24V AC or DC TYPICALLY 10W (MOTORING Supply On – Damper motors open. WHITE (2 ) 2W (RESET) AC/DC 24V Supply O – Damper spring closes.

  • Page 13: Dwfx-F Damper Dimensional Data

    Actionair DWFX-F Installation Guide DWFX-F Damper Dimensional Data Actionair SmokeShield PTC FOR DAMPERS 100-150MM Circular Dampers Series 601 VERALL FLANGE WIDTH = 398mm  OVERALL FLANGE HEIGHT = 395mm           ...
  • Page 14 Actionair DWFX-F Installation Guide Rectangular Dampers Series 501 For Rectangular Dampers spigots are 5mm under duct size. Widths and heights available in 1mm increments. OVERALL FLANGE WIDTH IS 398mm FOR D UCT WIDTHS A ND HEIGHTS OF 100-150MM OVERALL FLANGE HEIGHT IS 395mm ...

  • Page 15: Actionair Fireshield

    Actionair DWFX-F Installation Guide FireShield and DWFX-F Installation Dimensional Data Base Dampers Dampers with DWFX-F Actionair FireShield Series 101 FireShield Dampers with blades partly in airstream (Damper spigots stream Series 201 spigots 5mm under duct size) 100 – 249 high, use Series 101 Damper as...

  • Page 16: Inspection And Handover Check Sheet

    Actionair DWFX-F Installation Guide Inspection and handover check sheet This certificate applies only to Swegon Fire Dampers. The installer must complete this installation certificate when instal- ling fire and smoke dampers. A separate certificate must be completed for each individual fire and smoke damper.
