Summary of Contents for Michel BRAS Le Moulin

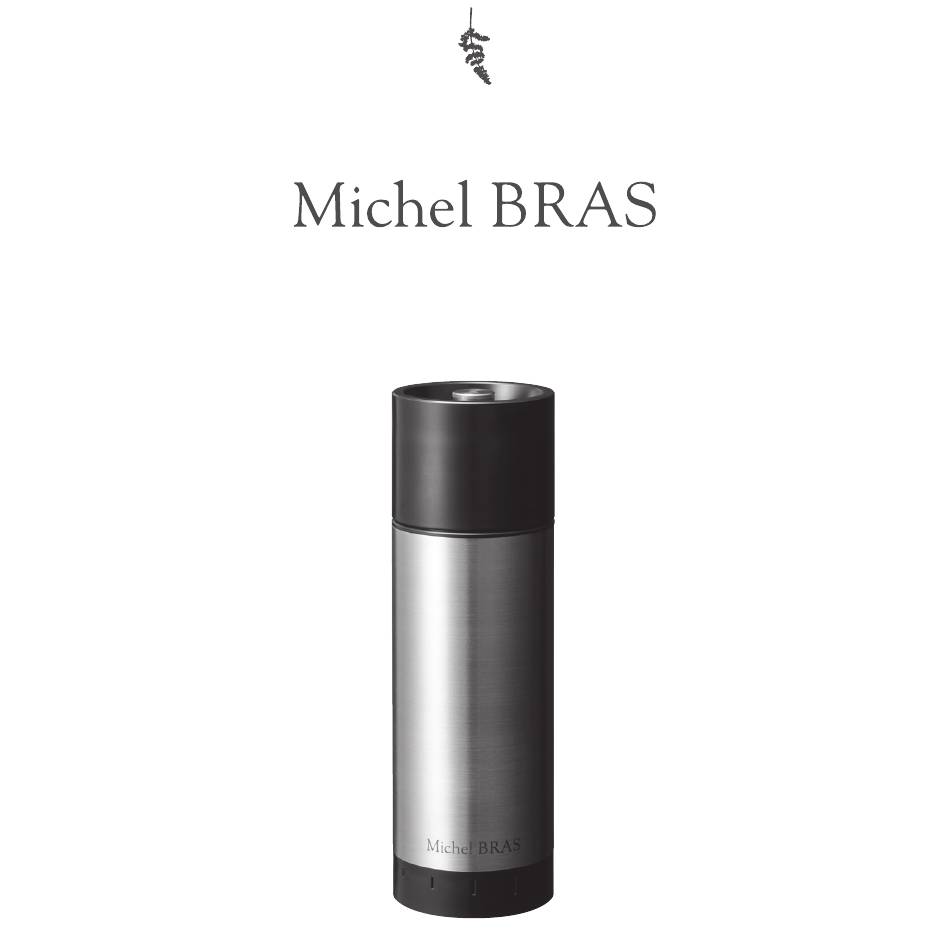

Page 2 Before the first use Thank you for purchasing Le Moulin by “Michel BRAS” . Please read the instructions carefully before using your mill for the first time use to ensure proper handling. ■ Names of parts Lower grinding Shaft Coarseness...
Page 3 ■ Directions for use ❶ Before the first use, wash thoroughly. Use washing up liquid except on the grinding wheels. ❷ Turn the nut anti-clockwise, pull the lid and remove. Turn the nut anti-clockwise Shaft Main body ❸ Set the coarseness adjustment dial on the finest grind, then fill the compartment with spice. Watch out as when the dial is set on the coarser grind, smaller spices such as rice grain size would fall down.
Page 4 ■ Disassembling (before washing) ❶ Remove the nut and the lid, check that the spice compartment is empty. ❷ Rotate the coarseness adjustment dial and set it to the coarsest level. Match ❸ Hold the coarseness adjustment dial with one hand, while with the other hand, turn clockwise the stopper at the bottom of the mill and remove.
Page 5 ❹ Turn clockwise the coarseness adjustment dial to release both grinding wheels. Coarseness adjustment dial Upper grinding wheel Lower grinding wheel ❺ The shaft and the fin can also be removed from the main body and washed. Shaft...
Page 6 ■ Assembling ❶ Check that both grinding wheels, main body, shaft and fin are completely dry. ❷ Check that the coarseness adjustment dial is set to the coarsest level. Match ❸ Slide the upper grinding wheel into the main body, making sure to match the △ on the resin part of the grinding wheel to the coarsest level mark on the coarseness adjustment dial.
Page 7 ❺ Insert the shaft into the main body. Next, insert the shaft into the fin's central hole. The fin doesn't have an upper or a lower side. ❻ Slide the lower grinding wheel onto the shaft. Lower grinding wheel ❼ Fit the stopper over the lower grinding wheel with the dented side turned outward, and turn anti-clockwise to secure into place.
Page 8 ■ Materials and specifications Main body: 18-8 stainless steel, ABS resin (heat resistant to 70℃）　 Nut: 18-8 stainless steel　　Lid: ABS resin (heat resistant to 70℃）　 Coarseness adjustment dial: ABS resin (heat resistant to 70℃）　 Shaft: 18-8 stainless steel, polyacetal (heat resistant to 110℃）　 Fin: polyacetal (heat resistant to 110℃）...
