- Page 1 Portico II Master Buss Processor Operations Manual Operations Manual...
-
Page 2: Important Safety Instructions
CAUTION: Changes or modifications to this device not expressly 11. Only use attachments/accessories specified by the manufacturer. approved by Rupert Neve Designs LLC, could void the user's authority to 12. Use only with a cart, stand, tripod, bracket, or PORTABLE CART operate the equipment under FCC rules. - Page 3 Table of Contents Introduction Block Diagram Front Panel Rear Panel MBP Features Specifications Limited Warranty...

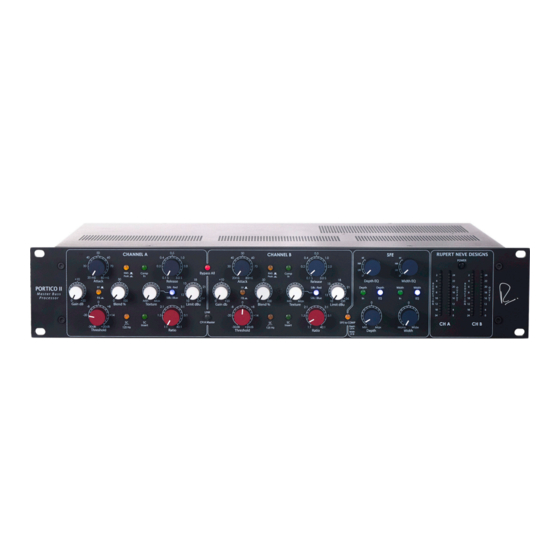

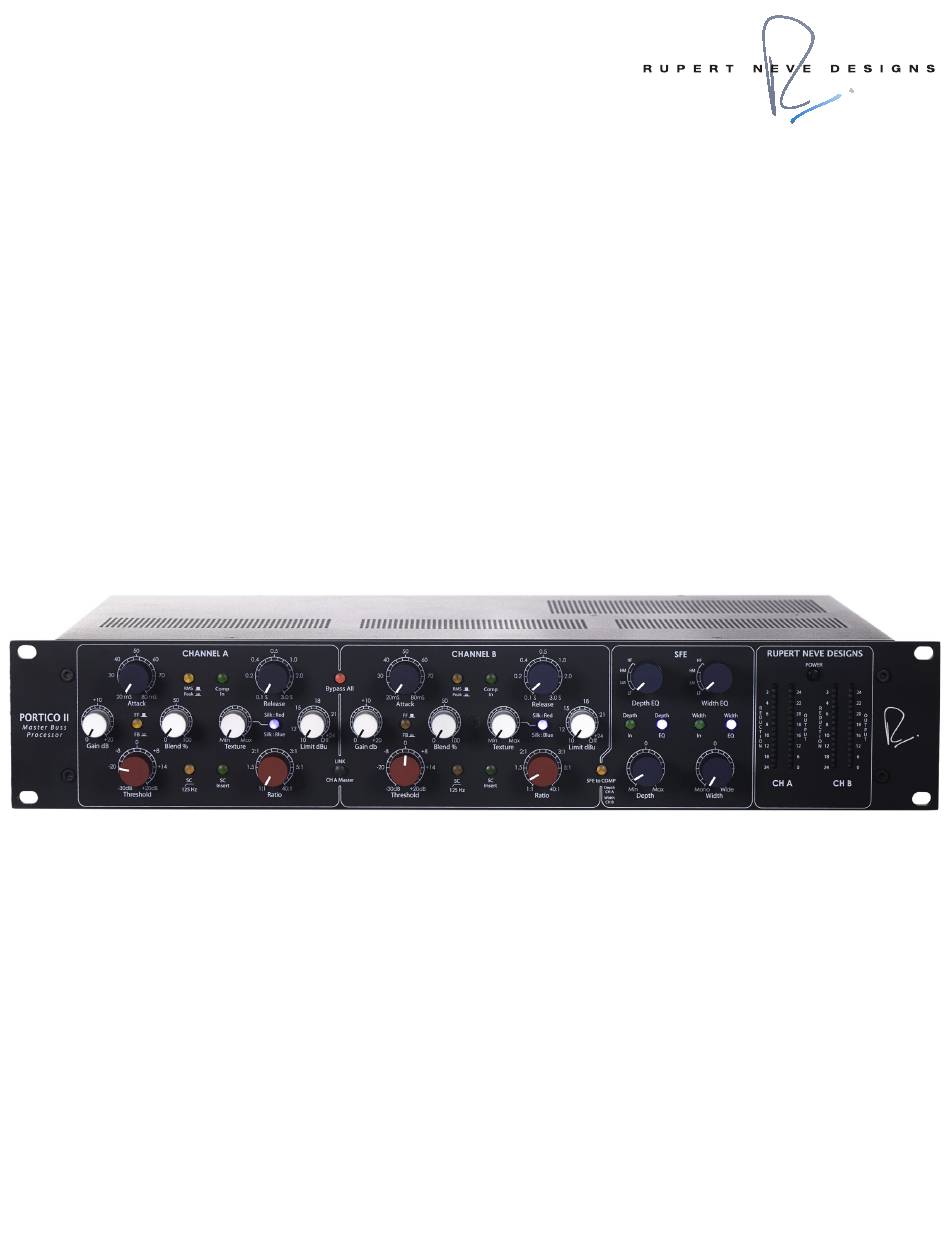

- Page 4 Rupert Neve Designs Portico II: Master Buss Processor Thank you for purchasing the Portico II Master Buss Processor. We hope you enjoy using this tool as much as we have enjoyed designing and building it. The Portico II Master Buss Processor features high-voltage discrete Class-A amplifiers, custom-wound Rupert Neve Designs input and output transformers, a stereo VCA compressor-limiter, and a Stereo Field Editor.
- Page 7 MBP Front-Panel Features Compressor Threshold This 31-detent potentiometer adjusts the level at which the compressor begins to attenuate the signal and is fully vari- able within a signal level range of +20dBu to -30 dBu. If the compressor input signal level exceeds the set threshold level, compression will occur.
- Page 8 MBP Front-Panel Features Gain This 31-detent potentiometer provides two different functions. When used with the compressor, the Gain control acts as standard Make-Up Gain, allowing the user to add gain to the compressed signal to match the bypassed signal level. When used in the context of the PIIMB limiter, the Gain control allows the user to set the desired “ceiling”...
- Page 9 MBP Front-Panel Features Limiter Limit This 31-detent potentiometer controls the threshold of the soft-clip limiter section. The limiter is disengaged until the user rotates the Limit potentiometer past the 3rd detent (+24dBu) from the fully clock-wise (OFF) position. As the user rotates the threshold control counter clock-wise, the limiter’s release time gradually increases.
- Page 10 MBP Front-Panel Features (continued) Silk This illuminated push-button switch toggles through the available SILK transformer harmonic saturation modes: OFF, RED, and BLUE. Red Silk has a high frequency emphasis associated with the transformer harmonics, while Blue Silk has a low frequency emphasis associated with the transformer harmonics. We encourage the user to experiment with both modes to find the most suitable tonal coloration for their particular application.
-
Page 11: Specifications
Specifications Frequency Response (Compressor and SFE Bypassed, Unloaded) 5 Hz to 100 kHz +/- 0.5 dB typical 120 kHz -3 dB typical Maximum Output Level (Compressor and SFE Bypassed, Unloaded) 20 Hz to 40 kHz +25 dBu typical Total Harmonic Distortion and Noise 1 kHz, +20 dBu Less than 0.003% typical 20Hz, +20 dBu... -
Page 14: Product Warranty
PRODUCT WARRANTY Rupert Neve Designs warrants this product to be free from defects in materials and workmanship for a period of three (3) years from date of purchase, and agrees to remedy any defect identified within such three year period by, at our option, repairing or replacing the product.
