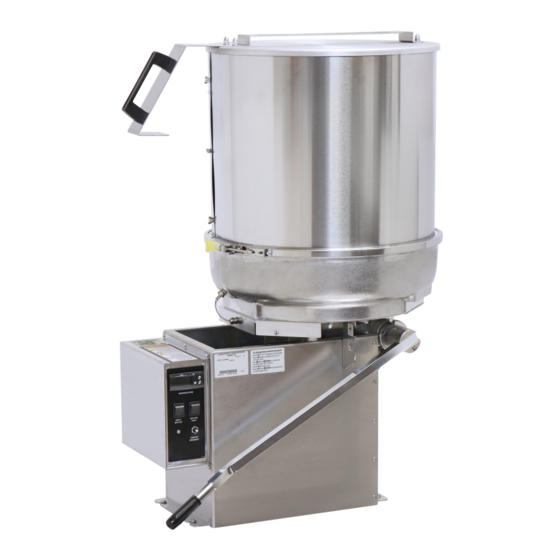

Summary of Contents for Gold Medal 2410 Series
- Page 1 Instruction Manual RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2021 Gold Medal Products Co. Part No. 110282...
-
Page 2: Table Of Contents
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Table of Contents SAFETY PRECAUTIONS ........................... 3 Inspection of Shipment ............................5 INSTALLATION INSTRUCTIONS ........................5 Manual ................................... 5 Model Description ..............................5 Items Included with this Unit ..........................5 Setup .................................... -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 Note: Improvements are always being made to Gold Medal’s equipment. This information 007_010914 may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Inspection Of Shipment
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). -
Page 6: Setup
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Setup 1. Remove all packaging and tape, and accessories before starting operation. 2. This unit must be properly fastened to a sturdy counter or base, see illustration below for mounting requirements. -
Page 7: Electrical Requirements
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Fasten or Adjust Retaining Ring Latch 1. Open latch then fit retaining ring over Mixing Drum 2. Place hook Drum seal fits drum and kettle rims. in first slot. -
Page 8: Before You Plug In Machine
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 9: Controls And Their Functions
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series OPERATING INSTRUCTIONS Controls and Their Functions ON/OFF lighted rocker switch – provides power to the heating elements in the bottom of HEAT/MOTOR SWITCH the kettle and powers the agitator motor to turn for 30 seconds of every minute. The green switch light ON indicates there is power to these features. -
Page 10: Adjusting The Set Temperature
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Adjusting the Set Temperature The Digital Heat Control is factory preset at 275°F (135°C); maximum setting is 450°F (232°C). The set point temperature you need may vary from the preset temperature depending on your recipe and cooking environment. -
Page 11: Making Caramel Corn
1. Turn Heat/Motor Switch ON (leave Motor Only Switch OFF). 2. Add (2) 22 oz. packages of Gold Medal Caramel Corn Mix (Item No. 2094), 8 cups of granulated sugar (brown or white), and 16–22 oz. of water (add water last). -
Page 12: Kettle Cleaning Procedure
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Care and Cleaning DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. DO NOT clean appliance with a water jet. -
Page 13: Daily Unit Cleaning Procedure
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Daily Unit Cleaning Procedure 1. Turn machine OFF, unplug the unit and allow it to cool before attempting to clean. 2. Clean all pans/accessories after each use. - Page 14 RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series 7. Lightly lubricate the center hub of the kettle with a small amount of Petro Gel to allow for easy re-installation of the hub seal assembly. 8. Slide the clean hub seal assembly down the agitator shaft. Apply pressure to ease the assembly over the center hub of the kettle until it seats properly.
-
Page 15: Troubleshooting
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Troubleshooting A. Power to Unit A. Make sure the unit lead-in cord is plugged in. Issue Possible Cause Solution B. Circuit Breaker B. Check the condition of the circuit breaker. The... -
Page 16: Maintenance Instructions
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 17: New Paddle/Hub Seal Kit Installation
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series New Paddle/Hub Seal Kit Installation Kettle Shaft Maintenance 1. With the machine OFF, unplug the unit and allow it to cool. 2. Pull knurled knob of plunger and lift mix paddles off shaft. -
Page 18: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 19: Cabinet Exterior And Handle Assembly
6, 7, 8 16 17* *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. Handle Assembly (see next page for parts breakdown) - Page 20 RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series LH Upright Handle Handle Assembly Parts RH Upright Handle RH & LH Straight Handle See handle variations shown. Part Number Item Parts Description CONTROL BOX COVER 101478...
-
Page 21: Kettle And Drum - Parts Breakdown
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Kettle and Drum – Parts Breakdown *Hub Seal Assembly (includes Hub Seal, Hub Body, and O-Ring) If Hub Seal is replaced, Gold Medal recommends replacing the assembly. - Page 22 RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Kettle and Drum – Parts List Part Number Item Parts Description MARK 10 LID ASSY 67526 All Models MIXING DRUM 48833 BLENDING STRIP 46702 WING NUT, #8-32...
-
Page 23: Kettle Bottom - Parts Breakdown
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Kettle Bottom – Parts Breakdown 2, 3** *Kettle Sub-assembly includes top and bottom bushings pressed in at the factory. **Bottom Bushing is slotted to allow drainage—silicone washer must be in place over motor shaft (see Kettle, Drum, and Motor Parts section for washer reference). - Page 24 RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Kettle Bottom – Parts List Part Number Item Part Description 2410-00-100, 2410-00-110, KETTLE ASSEMBLY, RH DUMP (includes parts listed 114649-00 2410-00-102 2410-00-112 below) KETTLE ASSEMBLY, LH DUMP (includes parts listed...
-
Page 25: Control Box Interior And Exterior
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Control Box Interior and Exterior 12, 7 14, 7 4, 5 6, 7 20, 21 8, 9, 10 LH Unit views shown for parts reference. Part Number... -
Page 26: Safety Labels
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Safety Labels Power Cord Label Unit Labels Part Number Item Part Description COOKER LABEL 111031 All Models MINIMUM CLEARANCE LABEL 88720 SET POINT LABEL 114810 MAIN GROUND LABEL... -
Page 27: Wiring Diagram
RH & LH Digital Mark 10 Corn Treat Units Model No. 2410 Series Wiring Diagram Model No. 2410 Series gmpopcorn.com Page 27... -
Page 28: Warranty
© 2021 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
