Summary of Contents for Maag Audio MAGNUM-K

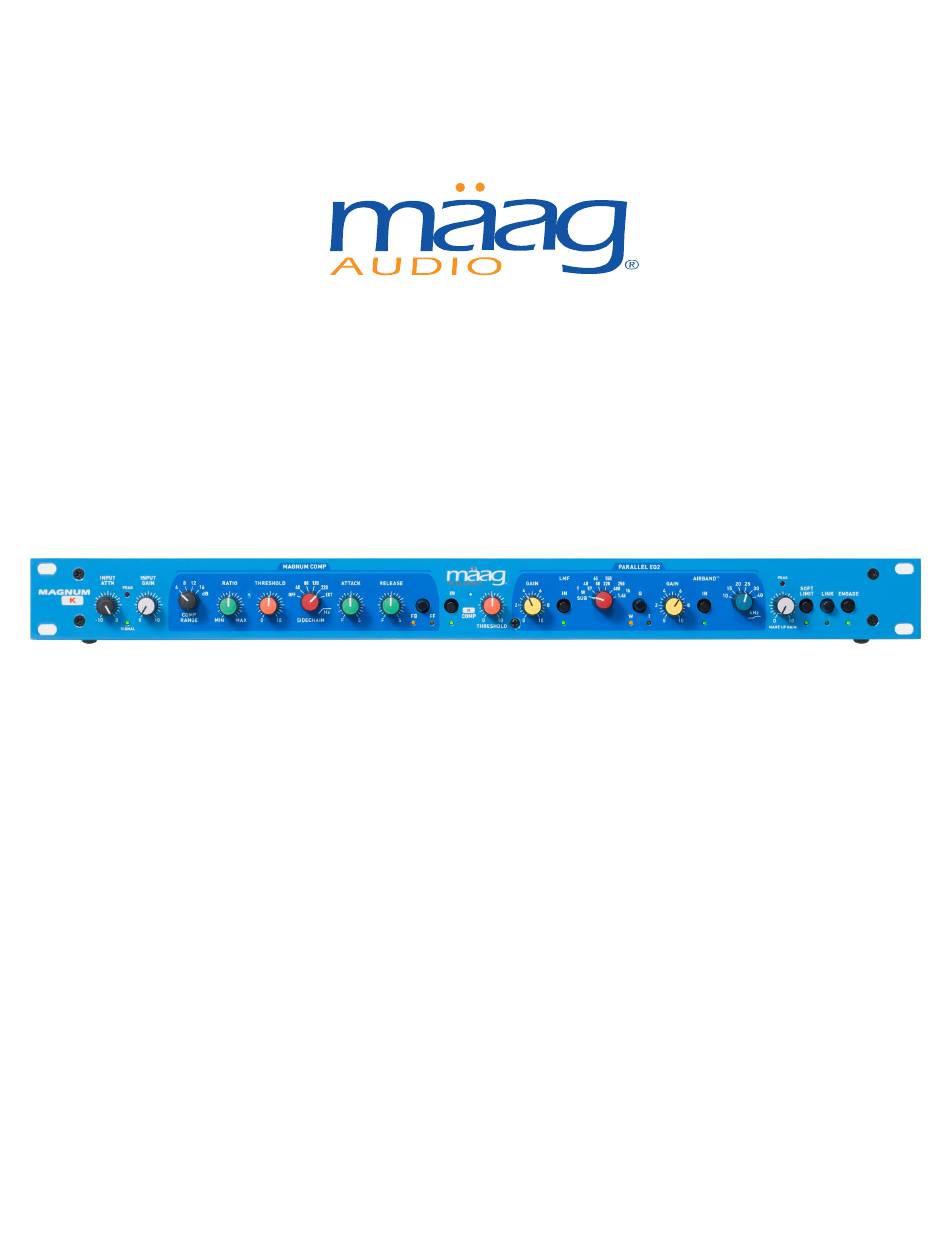

- Page 1 MAGNUM-K Compressor User Guide www.maagaudio.com Copyright © 2017 Maag Audio, LLC...
- Page 2 Refer all servicing to a qualified service engineer, does not operate normally, or has been dropped through the appropriate Maag Audio dealer. 13. CAUTION: To disconnect the unit completely from the MAINS, unplug the unit. Turning the...
- Page 3 Whether putting the finishing touches on a 2-mix or making a vocal sound bigger than life without tak- ing your head off; the MAGNUM-K will help elevate your craft to a whole new level. Welcome to com- pression nirvana and sonic bliss. Welcome to the Maag Audio MAGNUM-K Compressor were BIGGER SOUND, QUICKER WORKFLOW, and OUTSTANDING CONTROL were designed to elevate your craft.
- Page 4 Indicates the level of compression for the K COMP. The brighter the LED, the more compression being applied to the signal (simulating a meter) THRESHOLD Controls the level where compression occurs. Turing the knob to the right adds more compression Copyright © 2017 Maag Audio, LLC...
- Page 5 Frequency Selector (AIR BAND) Boost only shelf at 10 kHz, 15 kHz, 20 kHz, 25 kHz, 30 kHz, or 40 kHz. Frequencies below the shelf peaks are also affected due to the transitional slope Copyright © 2017 Maag Audio, LLC...
- Page 6 MAGNUM-K Compressor ™ Model: MAGNUM-K www.maagaudio.com CONTROLS LINK OUTPUT 1/4” TIP/SLEEVE to link two (2) MAGNUM-K 3-pin XLR balanced output for MAGNUM-K Compressors together INPUT SIDECHAIN 3-pin XLR balanced input for MAGNUM-K XLR Pinout EXT OUT 1 = G, 2 = +, 3 = -...
- Page 7 Products will be free of manufacturing defects. Within the warranty period, a product will be tested, re- paired or replaced at the sole discretion of Maag Audio, free of charge. All warranty service will be con- ducted through authorized Maag Audio dealers only. The end user is required to provide proof of pur- chase (receipt or invoice) of the product.
